Fully Automatic Benzene Crystallization Point Analyzer +80℃～-10℃ Mixing 6W ASTM D6875
제품 상세 정보
| 콜드 목욕 | 이중층 진공 유리 목욕 | 콜드 목욕 온도 제어 | +80℃~-10℃ |
|---|---|---|---|
| 임시 직원 통제 정확도 | ± 0.1°C | 목욕 액체 교반 | 교반 모터에 의한 자동 교반 |
| 혼합 전력 | 6W | 혼합 속도 | 1200r/min |
| 환경 온도 | ≤30 ℃ | 상대습도 | ≤85% |
| 강조하다 | Fully Automatic Benzene Crystallization Point Analyzer,Benzene Crystallization Point Analyzer ASTM D6875,Transformer Oil Testing Equipment with warranty |
||
제품 설명

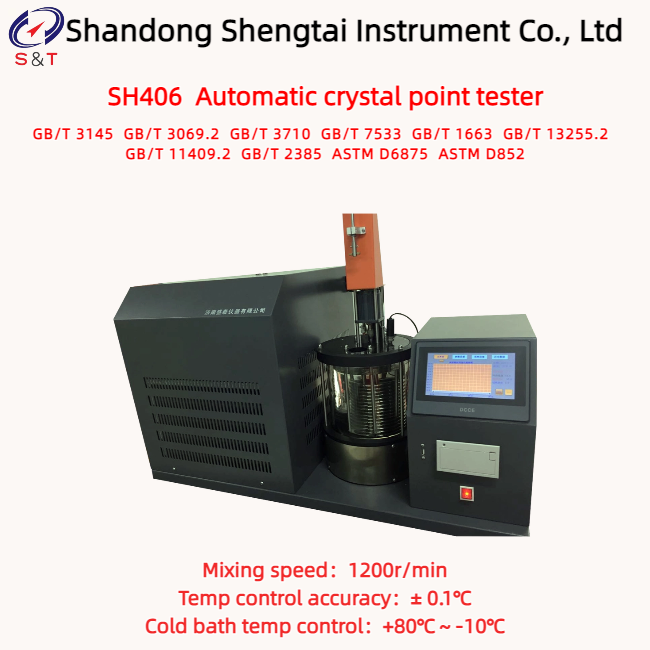

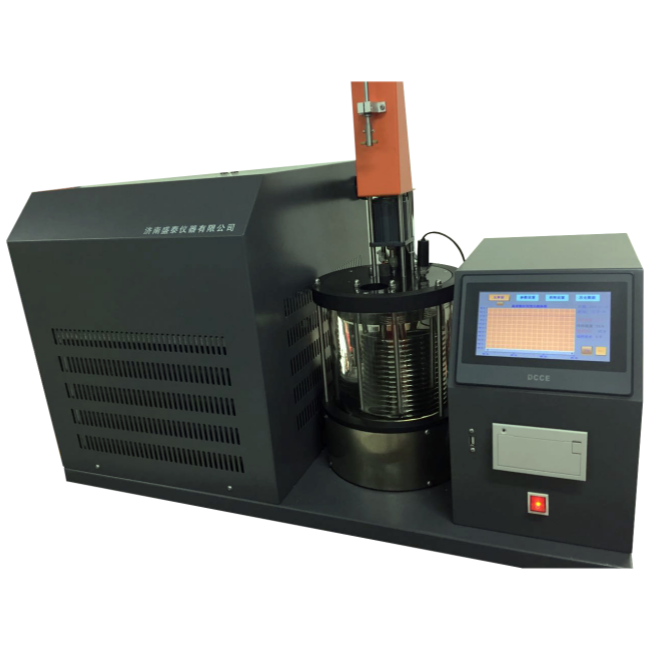

SH406 Automatic crystal point tester
SH406 fully automatic benzene crystallization point analyzer is applicable to the GB/T 3145-2023 benzene crystallization point determination, GB/T 3069.2-2005 naphthalene crystallization point determination, GB/T 3710-2009 industrial phenol and phenol crystallization point determination, GB/T 7533-1993 organic chemical product crystallization point determination, and GB/T 618-2006 chemical reagent crystallization point determination standards. GB/T 1663-2001 Determination of Crystallization Point of Plasticizers, GB/T 13255.2 Determination of Crystallization Point of Industrial Caprolactam. GB/T 11409.2 Rubber anti-aging agent crystallization point determination method, which also complies with GB/T 2385-2007 General method for determining the crystallization point of dye intermediates. ASTM D6875 ASTM D852
Instrument features:
● Designed with an embedded system, the entire testing process is automatically detected.
● Color touch screen; The experimental results can be stored.
● Can view historical data.
● Printing results on the instrument, mechanical automatic stirring, and experimental results can be exported through a USB flash drive and stored in a computer for multiple experiments and comparisons.
Technical specifications
| Working cold bath | double-layer vacuum glass bath |
| Cold bath temp control | +80℃～-10℃ |
| Temp control accuracy | ± 0.1℃ |
| Bath liquid stirring | automatic stirring by the stirring motor |
| Mixing power | 6W |
| Mixing speed | 1200r/min |
| Refrigeration system | new type of refrigeration compressor |
| Sample mixing | synchronous reduction motor, 60 times/minute |
| Environmental temperature | ≤30℃ |
| Relative humidity | ≤85% |
| Whole power | around 1500W |
| Working power supply | AC220V±10% 50Hz |
| Instrument size | 950 * 500 * 510mm |
| Instrument weight | 48.83kg |
| Packaging size | 1070 * 630 * 620mm |
| Packaging weight | 63kg |
● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;
● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage
● Output format: The output format of the result USB drive is CSV or Excel.
★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)
★ Data Management: Can be connected to the Limis system (optional)
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they are may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Crystallization point test tube | 1 | Set | |
| 3 | Temperature sensor | 2 | Piece | |
| 4 | Power cord | 1 | Piece | |
| 5 | Instruction | 1 | Copy | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate warranty card | 1 | Copy |
