Dual Holes Transformer Oil Auto Low Temp Kinematic Viscometer 0.4-30000mm²/S ASTM D445
제품 상세 정보
| 임시 제어점 | -40℃~60℃ 임의로 설정 가능 (-70℃~60℃까지 맞춤 설정 가능) | 임시 직원 통제 정확도 | ± 0.1°C |
|---|---|---|---|
| 측정 범위 | 0.4-30000mm ²/s(다른 점도 튜브 선택) | 디스플레이 모드 | 디지털 디스플레이 |
| 전원공급장치 | AC220V ± 10% 50HZ ± 5% | 환경 온도 | 5℃~40℃ |
| 강조하다 | dual holes transformer oil viscometer,low temp kinematic viscometer ASTM D445,lube oil testing equipment with warranty |
||
제품 설명

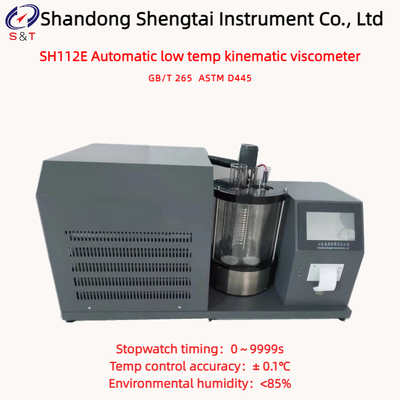

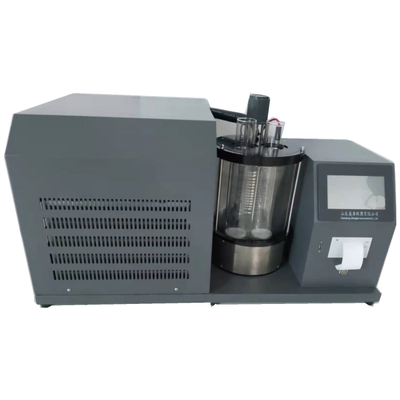

SH112E Automatic low temp kinematic viscometer
SH112E low temperature petroleum kinematic viscometer conforms to the national standard GB/T 265 "Petroleum product kinematic viscosity measurement method and dynamic viscosity calculation method" standard measurement requirements.Two samples with different viscosities can be placed simultaneously for experimentation.
Kinematic viscosity: At a constant temperature, determine the gravitational flow of a specified volume of the model using a calibrated glass capillary viscometer. The viscosity constant of the capillary viscometer varies over time; the product's operating temperature is used to measure the liquid viscosity.
Main features
● The constant temperature bath is double-layer dewar bottle with low temperature. The temperature distribution in the bath is even and the temperature control effect is good.
● The instrument adopts precision digital temperature controller to control the temperature in the bathtub, the executive components are solid-state relay SSR, with temperature control accuracy and accuracy, no contact, no noise, no spark, fast action, long life and other characteristics.
● Capillary card adopts three point vertical type, flexible and convenient operation, reliable clamping.
● Adopting a color touch screen with Chinese display and no labeled buttons.
● Imported PT100 temperature sensor, adjustable from -40℃ to 60℃.
● Ability to store the constant of the capillary tube in case of power failure.
● Manual layout, manual cleaning, and automatic calculation of viscosity values.
● USB data output function, import to computer in Excel format.
Technical parameter
| Temp control point | -40℃～60℃ can be set arbitrarily (can be customized to -70℃～60℃) |
| Temp control accuracy | ± 0.1℃ |
| Measurement range | 0.4-30000mm ²/s (choose different viscosity tubes) |
| Display mode | digital display |
| Stopwatch timing | 0～9999s |
| Heating power | 750W |
| Power supply | AC220V ± 10% 50HZ ± 5% |
| Environmental temp | 5℃～40℃ |
| Environmental humidity | <85% |
| Dimensions | 720 * 450 * 680mm |
| Weight | 58Kg |
★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)
★ Data Management: Can be connected to the Limis system (optional)
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Consumables that customers need to bring themselves: water or alcohol. Strictly according to national standards, the viscosity tube needs to be cleaned with the following reagents before the experiment: solvent oil or petroleum.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Automatic viscosity tester | 1 | Set | |
| 2 | Special viscosity tube | 4 | Piece | |
| 3 | Sample injector | 1 | Piece | |
| 4 | Printing paper | 2 | Piece | |
| 5 | certificate | 1 | Copy | |
| 6 | instructions | 1 | Copy |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
