ASTM D92 Hydraulic Oil Cleveland Open Cup Flash Point Tester Electronic Ignition
제품 상세 정보
| 온도 측정 범위 | 상온 ~ 400℃ | 해결 | 0.1 ° C |
|---|---|---|---|
| 점화 | 전자식 점화 | 가열 속도 | GB/T 3536을 준수하십시오 |
| 상대습도 | ≤80% | 작동 전원 공급 장치 | AC220V ±10% 50Hz |
| 강조하다 | ASTM D92 hydraulic oil tester,Cleveland open cup flash point tester,electronic ignition petroleum testing instrument |
||
제품 설명

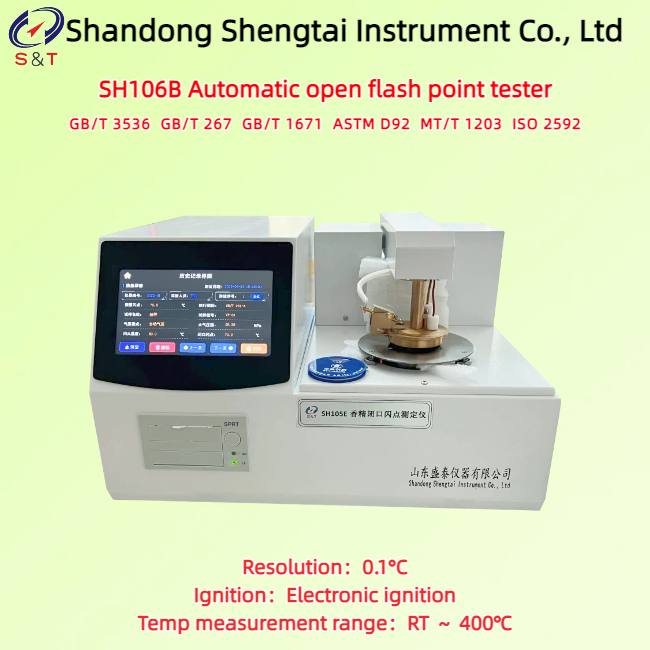

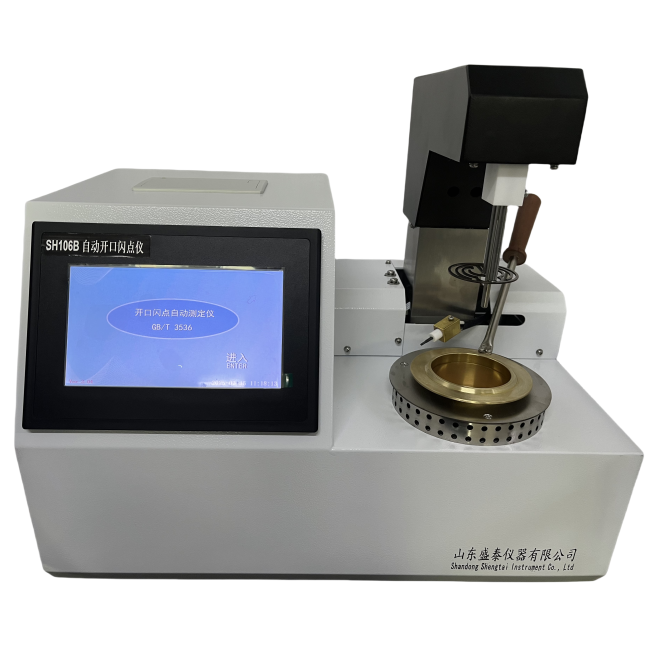

SH106B Automatic open flash point tester
The SH106B Fully Automatic Open Flash Point Tester is designed and manufactured in accordance with the requirements specified in the Chinese national standards GB/T 3536 and GB/T 267 "Methods for Determination of Flash Point and Ignition Point of Petroleum Products (Cleveland Open Cup Method)" as well as GB/T 1671-2008 "Determination of Flash Point of Plasticizers (ASTM D92)", "Safety Testing and Inspection Specifications for In-Use Products in Coal Mines (Air Compressors)", MT/T 1203-2023 "Open Flash Point of Lubricating Oil for Air Compressors", and ISO 2592.
The open flash point is primarily used to determine the flash point of engine oils such as gasoline engine lubricants, diesel engine lubricants, compressor oils, refrigeration oils, turbine oils, gear oils, and mechanical oils
The principle of open flash point determination involves filling the test sample into the test cup up to the specified mark. First, the temperature of the sample is raised, followed by a gradual increase. As the flash point approaches, the temperature is maintained at a constant rate. At predetermined temperature intervals, a small test flame is passed horizontally across the test cup. The lowest temperature at which the vapor on the liquid surface ignites with the test flame is recorded as the open flash point result.
Instrument Features
● This instrument features a large color LCD screen with a full Chinese human-machine interface and a keyboard without labels. It provides prompt menus and guided input functions for parameters such as preset temperature, sample number, atmospheric pressure, and test date.
● Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.
● Differential detection, automatic system deviation correction.
● Scanning, detection, and printing data are automatically completed, with the testing arm rising and lowering automatically.
● Electronic ignition, forced air cooling.
● It can ignite automatically without requiring a gas source, enhancing the safety of the test.
Technical parameter
| Working power supply | AC220V ±10% 50Hz |
| Temp measurement range | RT ～ 400℃ |
| Reproducibility |
Flash point ≤150°C, error ±2°C; Flash point ≥150°C, error ±3°C |
| Resolution | 0.1°C |
| Heating rate | Comply with GB/T 3536 |
| Ignition | Electronic ignition |
| Ambient temp | 10 ～ 40°C |
| Relative humidity | ≤80% |
| Dimensions | 430*380*520mm |
| Weight | 15kg |
Note: The appearance images and dimensions (volume and weight) of the instrument are for reference only. Updates to the instrument may result in minor changes without further notice.
SH106B, determine the open flash point; SH106BR, determine both the open flash point and the ignition point, dual function
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Automatic opening flash point meter | 1 | Set | |
| 2 | Oil cup | 1 | Piece | |
| 3 | AC power cord | 1 | Piece | |
| 4 | Printing paper | 1 | Piece | |
| 5 | Operating instruction | 1 | Piece | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate of approval | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
