Grease Distillation Water Content Tester Dual Work Units RT ～ 300℃ ASTM D95
제품 상세 정보
| 작업 단위 | 구멍 2개 | 난방 모드 | 전기 가열 증류 방법 |
|---|---|---|---|
| 직류 전기로의 히팅 파워 | 1000W | 증류 플라스크 용량 | 500ml (맞춤형 1000ml) |
| 측정 임시 | 상온 ~ 300℃ | 작업 전원 공급 장치 | AC220V±10% 50Hz |
| 환경 임시 | ≤35C | 상대습도 | ≤85% |
| 강조하다 | Grease water content tester,Dual work units distillation tester,ASTM D95 oil testing instrument |
||
제품 설명

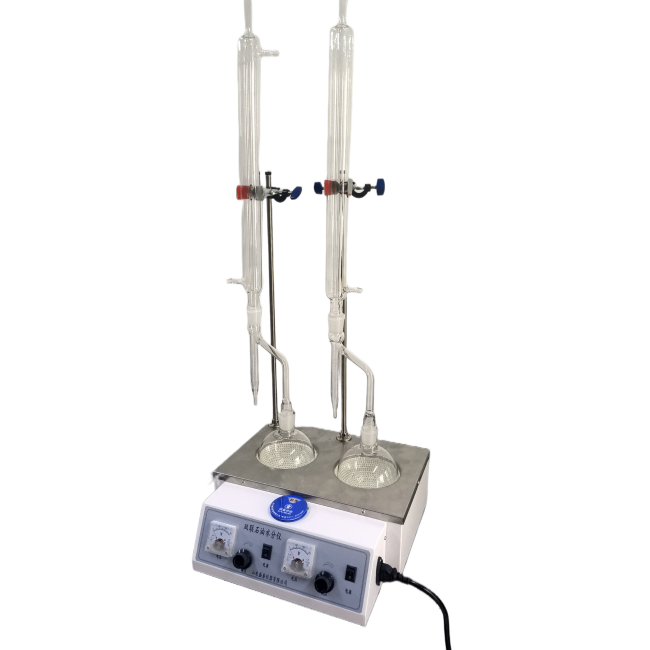

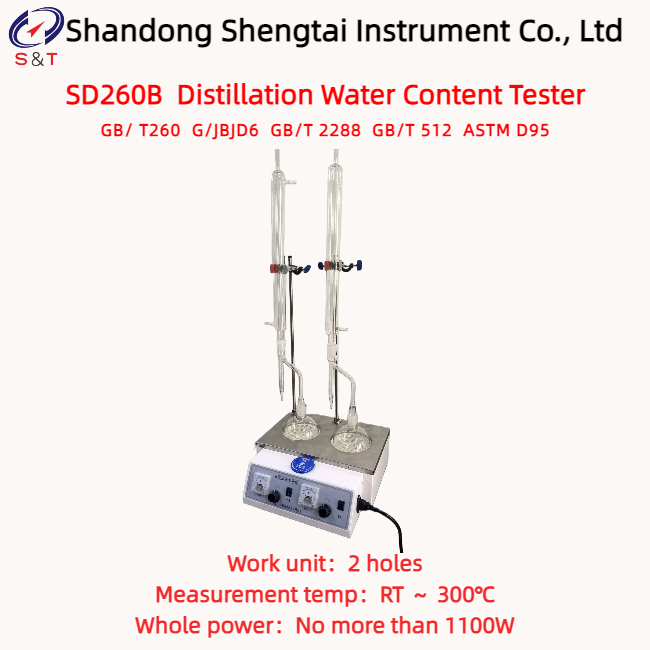

SD260B Distillation Water Content Tester
SD260B oil moisture meter is designed and manufactured according to the requirements of GB/ T260 "Moisture Determination Method of Petroleum Products" of the People's Republic of China. It conforms to the requirements of G/JBJD6 "Technical Conditions of Moisture Tester of Petroleum Products".
This instrument is suitable for the determination of moisture content in petroleum products according to GB/T260 standard test method, also suitable for the determination of moisture content in grease according to GB/T512 standard test method for the determination of moisture content in grease.In line with the ASTM D95.
ASTM D95 Dean-Stark Lab Water Distillation Crude Oil Water Content Tester
Dean-Stark Distillation Tester (Water Content Tester)
Lab Distillation Dean Stark Apparatus Crude Oil Water Content Tester
Distillation Method Petroleum Products Water Content Tester (Double Units)
Instrument Features
● The design of this instrument fully complies with the requirements of GB/T260, G/JBJD6, GB/T 2288, GB/T 512, and ASTM D95 standards.
● The design of the test vessel clamp is reasonable, and the installation and disassembly of the condenser tube are convenient.
● Two sets of experiments can be conducted simultaneously, requiring external circulation of cooling water.
● Heating by electric heating distillation method
Main technical parameters and indicators
| Work unit | 2 holes |
| Heating mode | Electric heating distillation method |
| Heating power of electric furnace | 1000W |
| Distillation flask volume | 500ml (customizable 1000ml) |
| Measurement temp | RT ～ 300℃ |
| Working power supply | AC220V±10% 50Hz |
| Environment temp | ≤35℃ |
| Relative humidity | ≤85% |
| Whole power | No more than 1100W |
| Instrument size | 470*360*290mm |
| Instrument weight | 10kg |
| Package size | 500*380*320mm |
| Package weight | 13kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Reagents: Solvent (initial distillation point not less than 50 degrees DC gasoline) oleic acid or stearic acid anhydrous calcium chloride: chemically pure
Packing list:
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Electric heating temperature control device | Set | 1 | |
| 2 | Post | Piece | 2 | |
| 3 | Test the condenser gripper | Piece | 2 | |
| 4 | Condenser pipe | Piece | 2 | |
| 5 | Receiving tube | Piece | 2 | |
| 6 | Round bottom flask | Piece | 2 | |
| 7 | Power cord | piece | 1 | |
| 8 | Instructions | Copy | 1 | |
| 9 | Certificate of conformity warranty card | Copy | 1 |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
