Activated Carbon Particle Hardness Tester Measure 1 - 50kg Resolution 1/10000 ASTM D3802
제품 상세 정보
| 측정 해상도 | 1/10000(예: 200kg ¼ 10000 = 0.02kg); 2kg(분해능 0.0002), 5kg(분해능 0.0005), 10kg(분해능 0.001) | 측정(힘) 범위 | 1-50kg (사용자 정의 가능) |
|---|---|---|---|
| 힘 측정 정확도 | ±1%보다 더 좋습니다 | 테스트 속도 | 0.5-500mm/분 |
| 테스트 여행 | 200mm | 악기 크기 | 440*320*590mm |
| 강조하다 | Activated Carbon Hardness Tester,Particle Hardness Tester ASTM D3802,Feed Testing Instrument 1-50kg |
||
제품 설명

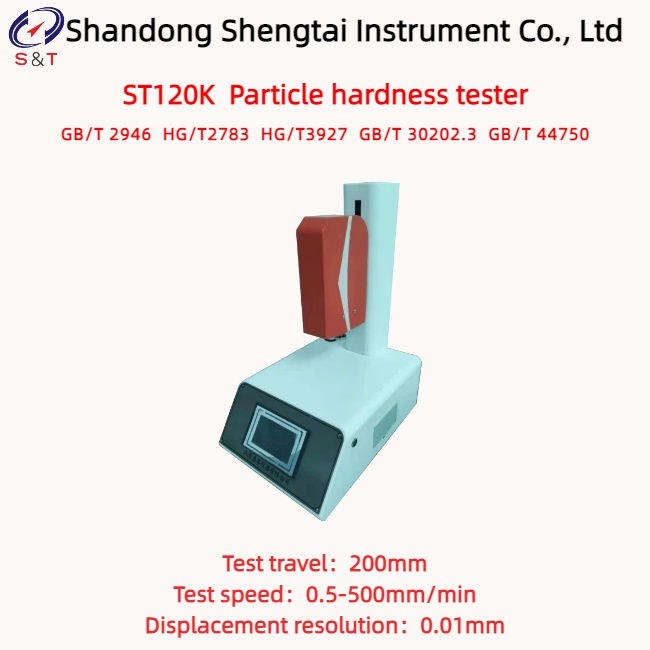

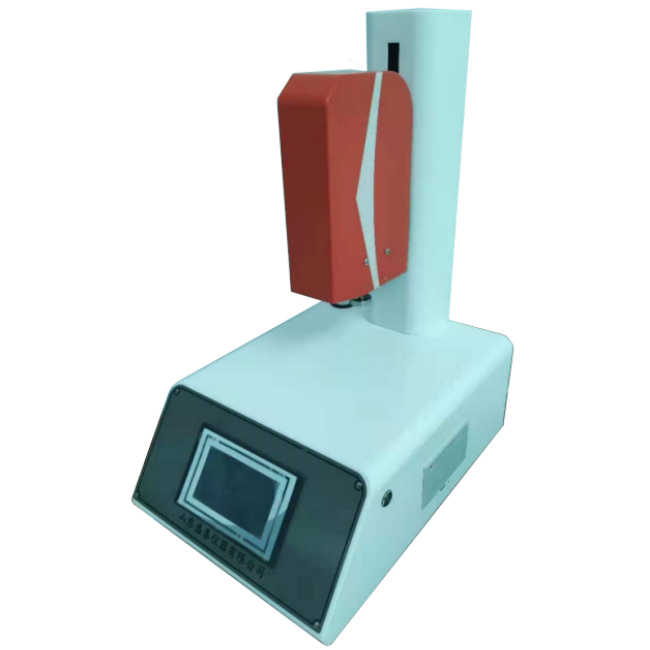

ST120K Particle hardness tester
ST120K hardness strength tester mainly includes a dedicated software for the main unit, spare probes, and accessories. Its basic structure generally consists of a mechanical device capable of deforming the sample, a container for holding the sample, and a recording system for recording force, time, and deformation rate. The testing revolves around distance, time, and force for testing and result analysis. The physical property analyzer mainly reflects the texture characteristics related to mechanical properties, and its results have high sensitivity and objectivity. The results can be accurately quantified through the equipped specialized software to objectively and comprehensively evaluate the item with quantitative indicators.
Suitable for automatic testing of particle hardness in major fertilizers, grain and oil, feed, activated carbon chemical particle quality inspection, etc.
Standard: GB/T 2946 HG/T2783 HG/T3927 GB/T 30202.3 GB/T 44750 ASTM D3802
Functional features
● Real-time display of force value curve trend graph
● Automatic shutdown can be achieved by setting the positioning displacement to reach the set distance.
● Compression test, automatic shutdown after the product is compressed to the maximum value.
● Automatically measure the size of particle strength, automatically produce results, and automatically calculate the maximum and minimum values for multiple sets of data.
Technical parameter
| Measurement resolution | 1/10000 (e.g., 200kg ÷ 10000 = 0.02kg); 2kg (resolution 0.0002), 5kg (resolution 0.0005), 10kg (resolution 0.001) |
| Measurement (Force) Range | 1-50kg (customizable) |
| Force measurement accuracy | better than ±1% |
| Displacement resolution | 0.01mm |
| Test speed | 0.5-500mm/min |
| Test travel | 200mm |
| Instrument size | 440*320*590mm |
| Instrument weight | 13.5kg |
| Packaging size | 570*430*680mm |
| Packaging weight | 18.9kg (carton) |
| Power supply | single-phase AC 220V 50HZ |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing List
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Power cord | 1 | Piece | |
| 3 | Fuse tube | 1 | Piece | 10A in the safety seat |
| 4 | Instruction manual | 1 | Copy | |
| 5 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
The instruments and materials provided are brand new, comply with national quality standards, and come with manufacturer's certification;
The materials and main components provided meet the technical requirements specified in the technical documentation;
The warranty period for the entire equipment is one year (excluding normal wear and tear of consumable parts).
----We are responsible for free repairs of any instrument quality issues that arise during the warranty period. If the equipment malfunctions due to the user's responsibility, we will repair it and charge a reasonable fee.
----We offer lifelong discounts on spare parts for the equipment, and provide lifelong maintenance and repair services for the entire machine.
After the warranty period expires, if the user requires maintenance and technical services, we will only charge for the cost.
