6 Work Units Coarse Fiber Tester Tests 990min Test Acid-Base Digestion GB/T 6434
제품 상세 정보
| 측정 객체 | 다양한 종류의 곡물, 사료, 식품 및 기타 농업 및 부업 제품의 원료 섬유 함량 | 측정 샘플 양 | 6/times |
|---|---|---|---|
| 재현성 에러 | 원시 섬유 수준 < 10%, 절대값 오류 ≤0.4%, 원시 섬유 수준 >10%, 절대값 오류 ≤4% | 측정 시간 | 약 90분 |
| 힘 | AC220V 501HZ | 악기 크기 | 540*450*670mm |
| 강조하다 | coarse fiber tester for feed,acid-base digestion fiber tester,GB/T 6434 fiber testing instrument |
||
제품 설명

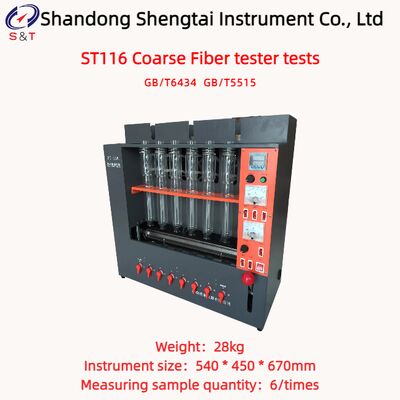

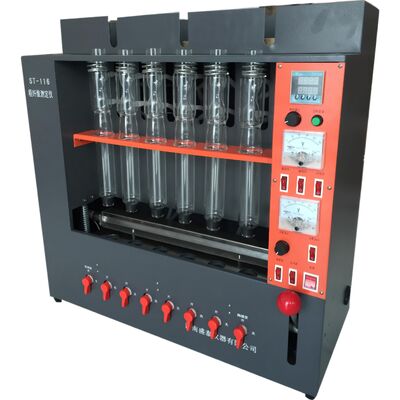

ST116 Coarse Fiber tester tests
The ST116 crude fiber tester is an instrument that utilizes the commonly used acid-base digestion method to digest samples and conducts weight measurement to determine the crude fiber content of the test sample.
Using acids and alkalis with accurate concentrations, digest the sample under specific conditions, then remove soluble substances with ethanol, and after high-temperature ignition, deduct the amount of minerals. The remaining content is called crude fiber. It is not an exact chemical entity, but only an approximate composition measured under recognized mandatory conditions, mainly consisting of cellulose, with a small amount of hemicellulose and lignin.
It is suitable for determining the crude fiber content of various grains, feed, etc., and the test results comply with the provisions of national standards GB/T5515 and GB/T6434.
Standard: GB/T6434 GB/T5515
Hot Sale Crude Fiber Tester /Coarse Fiber Tester
Coarse Fiber Analyzer or Raw Fiber Tester
Raw Fiber Analyzer Lab Coarse Fiber Tester
Coarse Fiber Analyzer or Raw Fiber Analyzer
Technical parameter
| Measuring object | raw fiber content in various kinds of grain, feed, food and other agriculture and sideline products |
| Measuring sample quantity | 6/times |
| Reproducibility error |
Raw fiber level < 10%, absolute value erroe≤0.4%, Raw fiber level >10%, absolute value error≤4% |
| Measuring time | about 90min (including acid 30min, alkali 30min, filter and wash 30 min) |
| Power | AC220V 501HZ |
| Instrument size | 540 * 450 * 670mm |
| Weight | 28kg |
| Package size | 715 * 510 * 765mm |
| Package weight | 40kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Fiber crucible | 6 | piece | |
| 3 | Glass Flask | 3 | piece | |
| 4 | Power cord | 1 | piece | |
| 5 | Fuse tube | 1 | piece | 10A in the safety seat |
| 6 | instructions | 1 | copy | |
| 7 | Certificate warranty card | 1 | copy |
Quality assurance
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The instruments and materials provided are brand new, comply with national quality standards, and come with manufacturer's certification;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The warranty period for the entire equipment is one year (excluding normal wear and tear of consumable parts).
----We are responsible for free maintenance of any instrument quality issues that arise during the warranty period. If the equipment malfunctions due to the user's responsibility, we will repair it and charge a reasonable fee.
----We offer lifelong discounts on spare parts for the equipment, and provide lifelong maintenance and repair services for the entire machine.
----After the warranty period expires, if the user requires maintenance and technical services, we will only charge for the cost.
