Halogen Moisture Meter Moisture Range 0.00% ～ 100% Oven Drying Mode ST-60
제품 상세 정보
| 최대 칭량 (g) | 110 | 수분 측정 에러 | 0.2% |
|---|---|---|---|
| 표시하다 | LCD | 교정 방법 | 외부 교정 |
| 난방 모드 | 할로겐 램프 | 온도 센서 | PT~100 |
| 히팅부 | 220V+15%50Hz 400W | 잔액 부분 | 외부 전원 공급 장치 출력: 9V 입력: 220V+15% 50Hz |
| 강조하다 | Halogen moisture meter for food,Moisture meter with oven drying mode,ST-60 food moisture tester |
||
제품 설명

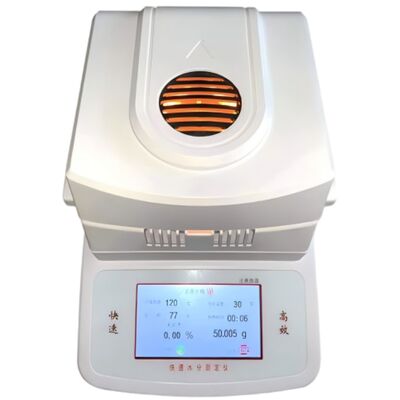

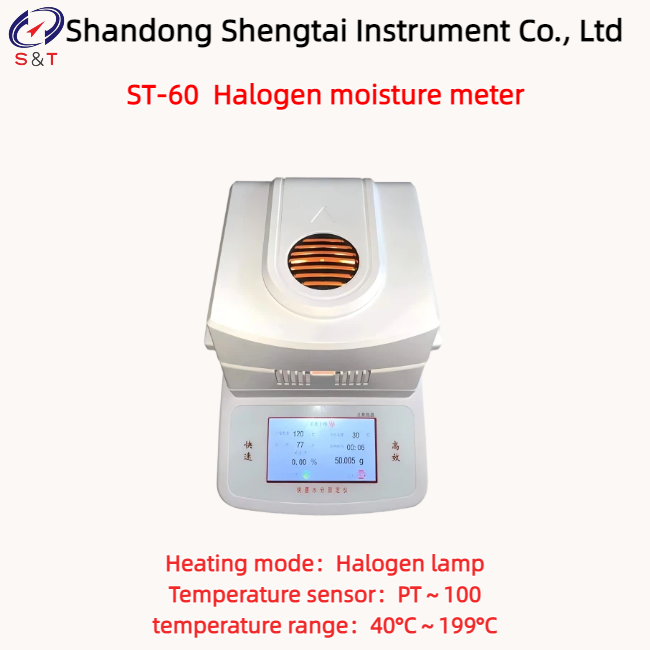

ST-60 Halogen moisture meter
ST-60Moisture Analyzer with halogen heating, intelligent operation. Quickly drying the sample evenly to obtain accurate moisture determination results of ground water clear determination to achieve visual information display, simple, easy to operate instrument. Water samples stored in a variety of pre-determination, makes testing quick and easy. And improved several times compared to mechanical efficiency and accuracy of measurements. Standard interface with computers and other peripherals connected.
Characteristic
● It can be used after unpacking without installation and commissioning;
● No training is required, the operation is simple, and cumbersome use steps are saved;
● Short measuring time and high working efficiency;
● Uniform heating, stable performance and accurate testing;
● Small size and light weight;
● Full-automatic measurement, alarm reminder after measurement, no need to watch the measurement process;
● It is widely used and almost suitable for moisture determination in all industries;
● The sensor imported from Germany makes the instrument test more excellent and accurate;
● The unique windshield design makes the instrument weighing system more stable;
● The water content and solid content of the sample can be converted at the same time;
● The heating chamber adopts pure stainless steel chamber cover, which is high temperature resistant and easy to clean.
Working principle:
The traditional moisture determination method is generally oven drying method. The test of a sample takes two or three or even three or four hours, and the moisture value (moisture content) of the sample can be obtained only after weighing and manual calculation by a balance. The low efficiency of moisture determination by oven method can not meet the needs of high-tempo enterprise production. ST series rapid moisture tester is a high-efficiency moisture tester developed. It uses a high-efficiency drying heater - high-quality annular halogen lamp to heat the sample quickly and evenly, and the moisture of the sample is continuously dried. During the whole measurement process, the instrument automatically displays the measurement results in real time: sample weight, water content, solid content, measurement time, heating temperature, etc.
Instrument Features
● Halogen lamp heating
● Stainless steel heating chamber
● Temperature/time adjustable
● Display moisture content as a percentage
● Display the remaining dryness as a percentage
● Large backlit LCD screen
● Can memorize multiple sets of drying processes
Technicl parameters
| Model | ST-60 | ST-80 | ST-100 |
| Maximum weighing (g) | 110 | 110 | 110 |
| Reading accuracy (g) | 0.005 | 0.001 | 0.0001 |
| Moisture measurement error | 0.2% | 0.1% | 0.05% |
| Service temperature | 5°C～35°C | ||
| Display | LCD | ||
| Calibration method | External calibration | ||
| Pan size(mm) | Φ90 | ||
| Dimensions(W*L*H) | 200*180*380mm | ||
| Weight(Kg) | 5.8 | ||
| Heating mode | Halogen lamp | ||
| Temperature sensor | PT～100 | ||
| Temperature range | 40°C～199°C | ||
| Temperature interva | 1°C | ||
| Moisture range | 0.00%～100% | ||
| Moisture readability | 0.01% | ||
| Dry residual range | 100.00%～0.00% | ||
| Dry residual readability | 0.01% | ||
| ATRO | 100%～999% | ||
| ATRO | 0%～999% | ||
| Temperature setting | 40°C～199°Cby1°Cstep | ||
| Time setting | 1～99min by 1s step | ||
| Automatic stop | 0.1%～9.9%within 1 min | ||
| Save History | 15 | ||
| Heating part | 220V+15%50Hz 400W | ||
| Balance part |
External power supply Output: 9V Input: 220V+15% 50Hz |
||
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Sample tray | 5 | Piece | |
| 3 | Power cord | 1 | Piece | |
| 4 | Fuse tube | 1 | Piece | 10A in the safety seat |
| 5 | instruction manual | 1 | Copy | |
| 6 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
