Digital Brookfield Viscometer Measure 0 ～ 9.99mPa.S Agar Protein Powder ST-19A
제품 상세 정보
| 점성 측정 범위 | 0~9.99mPa.s | 디스플레이 해상도 | 0.01mPa·s |
|---|---|---|---|
| 기기 측정 정확도 | ±0.02mPa·s | 수조 온도 조절 범위 | 상온 ~ 70℃ |
| 작동 전원 | AC 220V±10% 50Hz ≤500W | 환경 임시 | RT 10 ～ 30℃ |
| 강조하다 | Digital Brookfield viscometer for protein powder,ST-19A viscometer measures agar viscosity,Food testing viscometer 0-9.99mPa.S range |
||
제품 설명

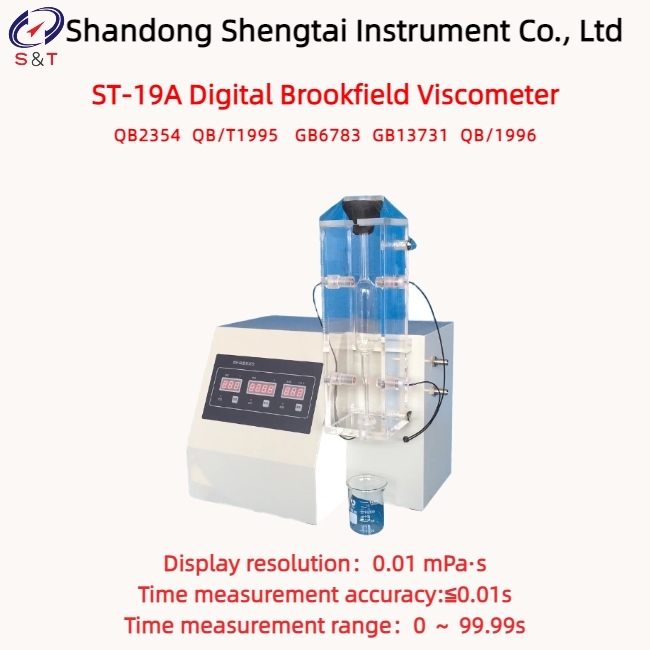

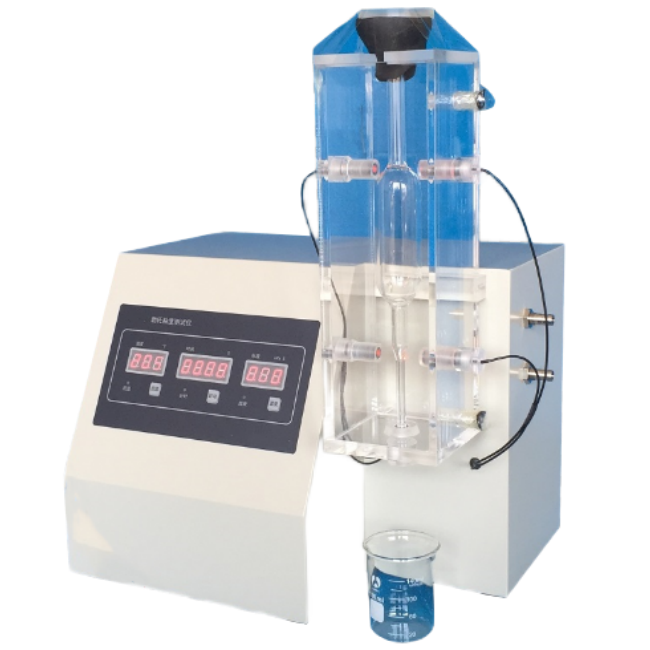

ST-19A Digital Brookfield Viscometer
The ST-19A digital Brookfield viscometer is a specialized instrument designed for measuring the Brookfield viscosity of gelatin, adhering to the QB2354 standard for "Pharmaceutical Gelatin" and complying with QB/T1995, GB6783, GB13731, and QB/1996. The determination of Brookfield viscosity of gelatin serves as a crucial indicator reflecting the production process level and quality control of gelatin. It is suitable for viscosity performance testing of all types of gelatin, including edible gelatin, pharmaceutical gelatin, industrial gelatin, and bone glue, as well as viscosity testing of gelatin-like liquids such as agar and protein powder.
Technical features
● Digital display.
● The viscosity tester operates in the B1oom mode, displaying the Brookfield viscosity value numerically.
● The thermostatic water bath has high temperature control accuracy and uniform water bath temperature.
● Standard capillary viscometer, precision photoelectric sensor.
● Automatically calculate time and viscosity values.
● Automatic timing, automatic alarm, automatic continuous testing.
● Automation, automatic detection, automatic diagnosis, and automatic alarm.
Applicable standards:
◆ National standard "Food Additive - Gelatin" GB6783
◆ National standard "Medicinal Gelatin Capsules" GB13731
◆ Industry standard "Pharmaceutical Gelatin" QB2354
◆ Industry standard "Industrial Gelatin" QB/T1995
◆ Industry standard "Bone Glue" QB/1996
◆ Industry standard "Photographic Gelatin" QB1997
Technical Specifications
| Viscosity measurement range | 0 ～ 9.99 mPa.s |
| Display resolution | 0.01 mPa·s |
| Instrument measurement accuracy | ±0.02 mPa·s |
| Time measurement range | 0 ～ 99.99s |
| Time measurement accuracy | ≦0.01s |
| Water bath temp control range | RT ～ 70℃ |
| Water bath temp control accuracy | ±0.1℃ |
| Viscometer capacity | 100ml |
| Viscometer volume error | ±0.5ml |
| Longitudinal center-to-center distance of measuring device | 152 mm ± 0.5 mm |
| Operating power supply | AC 220V±10% 50Hz ≦500W |
| Environment temp | RT 10 ～ 30℃ |
| Relative humidity | <75% |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
The instruments and materials provided are brand new, comply with national quality standards, and come with manufacturer's certification;
The materials and main components provided meet the technical requirements specified in the technical documentation;
The warranty period for the entire equipment is one year (excluding normal wear and tear of consumable parts).
----We are responsible for free repairs of any instrument quality issues that arise during the warranty period. If the equipment malfunctions due to the user's responsibility, we will repair it and charge a reasonable fee.
----Lifetime discounted supply of spare parts for equipment, and lifetime maintenance and repair for the entire machine.
After the warranty period expires, if the user requires maintenance and technical services, we will only charge for the cost.
