Jelly Gummy Candy Gel Strength Tester Test 5 ～ 1000 Bloomg Travel 0-200mm QB 2354
제품 상세 정보
| 테스트 속도 | 0.5 ~ 500mm/min (0.008mm/s ~ 8.33mm/s) 임의로 설정 가능 | 정확성 | 수준 0.5 |
|---|---|---|---|
| 테스트 범위 | 5-1000 Bloomg | 기능 | 최대 동결 력 |
| 악기 크기 | 440*320*590mm | 전원공급장치 | 220V 50Hz(또는 110V 60Hz) |
| 강조하다 | Jelly candy gel strength tester,Gummy candy bloom test instrument,Food testing instrument 0-200mm travel |
||
제품 설명

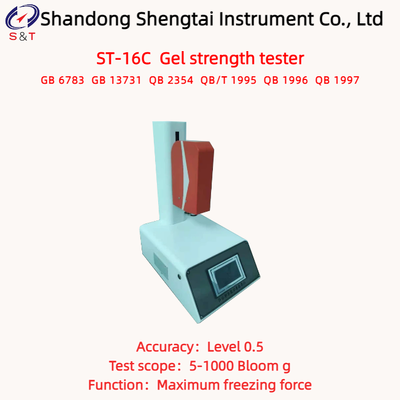

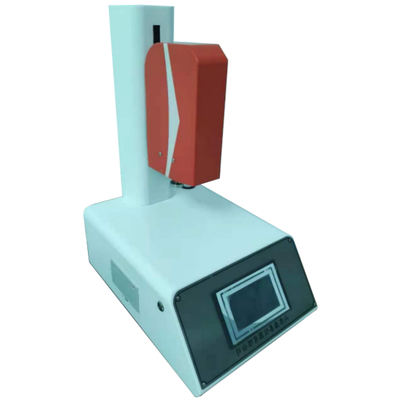

ST-16C Gel strength tester
ST-16C Gel strength tester is a measuring instrument used to measure the freezing strength of gelatin. It is designed and manufactured according to the QB2354 standard of "Medicinal Gelatin" and also complies with QB/T1995, GB6783, GB13731, QB/1996.The freezing strength of gelatin is an important indicator that reflects the level of gelatin production technology and controls the quality of gelatin production.
This instrument is easy to operate, requiring no complex training, with one-click operation. The spectrum and results are automatically displayed in real-time.
Technical feature
1. Microcomputer control, menu interface, PVC operation panel, and large LCD display.
2. Multiple functions such as parameter setting, viewing, clearing, and calibration can be performed.
3. Conduct statistical analysis and calculation of grouped samples, and provide the maximum and minimum values.
4. The system supports both tensile and compressive testing modes, and the speed can be freely set.
Applicable standards:
◆ National standard "Food Additive - Gelatin" GB6783
◆ National standard "Pharmaceutical Gelatin Capsules" GB13731
◆ Industry standard "Pharmaceutical Gelatin" QB2354
◆ Industry standard "Industrial Gelatin" QB/T1995
◆ Industry standard "Bone Glue" QB/1996
◆ Industry standard "Photographic Gelatin" QB1997
Technical Parameter
| Force measurement unit | N, Bloom g |
| Test speed | 0.5 ～ 500mm/min (0.008mm/s ～ 8.33mm/s) can be set arbitrarily |
| Length unit | Mm |
| Accuracy | Level 0.5 |
| Test scope | 5-1000 Bloom g |
| Function | Maximum freezing force |
| Travel | 0-200mm |
| Fixture configuration | Measure cylinder diameter of 12.700 ± 0.010mm |
| Standard test bottle capacity | 150ml |
| Standard test bottle inner diameter | 59mm |
| Standard test bottle height | 85mm |
| Power supply | 220V 50Hz (or 110V 60Hz) |
| Instrument size | 440 * 320 * 590mm |
| Instrument weight | 13.5kg |
| Package size | 570 * 430 * 680mm |
| Package weight | 18.9kg carton |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they maybe slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Probe | 1 | Piece | |
| 3 | Bottle | 3 | Piece | |
| 4 | Power cord | 1 | Piece | |
| 5 | Fuse tube | 1 | Piece | 10A in the safety seat |
| 6 | Instructions | 1 | Copy | |
| 7 | Certificate warranty card | 1 | Copy |
DW0506 Gelatin Freezing Power Instrument with Low Temperature Constant Temperature Bath (Optional)
Equipped with the internationally advanced fluorine-free refrigeration system, the main components are directly imported, ensuring stable and reliable performance. It is widely used in research institutions, universities, and quality inspection and production departments of enterprises in various fields such as petroleum, chemical, electronic instrumentation, physics, chemistry, bioengineering, medicine and health, life sciences, light industry and food, physical property testing, and chemical analysis. It provides users with a liquid environment with controlled temperature and uniform temperature stability during work. Test samples or produced products can undergo constant temperature testing or experimentation directly in the tank. It can be used for direct heating or cooling, serving as a temperature source for auxiliary heating or cooling, such as temperature control for reaction vessels, fully automatic synthesis instruments, extraction, and condensation devices.
Product Features
● Temperature control function: Integrated with a new generation of PID automatic temperature control program, equipped with a high-precision PT100 temperature sensor of Class 1/3B. Equipped with a large high-contrast LCD screen, displaying in both Chinese and English, with a digital display resolution of 0.01℃, ensuring precise and stable temperature control.
● The machine's outer shell is coated with anti-aging electrostatic spraying technology, while the inner lining and countertop are made of high-quality S304 brushed stainless steel.
● The front panel and tabletop of the chassis are meticulously crafted, featuring a user-friendly R-corner design structure to prevent operators from being accidentally injured by sharp edges.
Technical Specifications
| Temperature range | -5℃ ～ 100℃ |
| Temperature fluctuation | ±0.1℃ |
| Total capacity | 6L |
| Refrigeration method | Compressor refrigeration |
| Working slot opening | 180×140mm |
| Inner slot dimensions (L * W * D) | 200 * 200 * 180mm |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The instruments and materials provided are brand new, comply with national quality standards, and come with manufacturer's certification;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
The warranty period for the entire equipment is one year, excluding normal wear and tear of consumable parts.
----For any quality issues with the instrument that arise during the warranty period, we are responsible for providing free repairs. If the equipment malfunctions due to the user's responsibility, we will repair it and charge a reasonable fee.
----We offer lifelong discounts on spare parts for the equipment, and provide lifelong maintenance and repair services for the entire machine.
----After the warranty period expires, if the user requires maintenance and technical services, we will only charge for the cost.
