Wholemeal Flour Double-Head Gluten Meter 180 ～ 200℃ Speed 120r/Min ST007BP
제품 상세 정보
| 밀가루 양을 세척합니다 | 10.00 ± 0.01g | 블렌더 속도 | 120r/min |
|---|---|---|---|
| 미세 세척 네트의 사양 | GFIW0.08/0.045 (일반 직조) (200 메시/인치) | 거친 세탁 메쉬 사양 | GFIW0.0630/0315(평직)(26 메쉬/인치) |
| 페이스타임 | 0-1분(조정 가능) | 작동 전압 | AC220V ± 10% 50Hz |
| 환경 온도 | 0-40℃ | 상대습도 | <80> |
| 강조하다 | wholemeal flour gluten meter,double-head flour test instrument,high-speed gluten meter 120r/min |
||
제품 설명

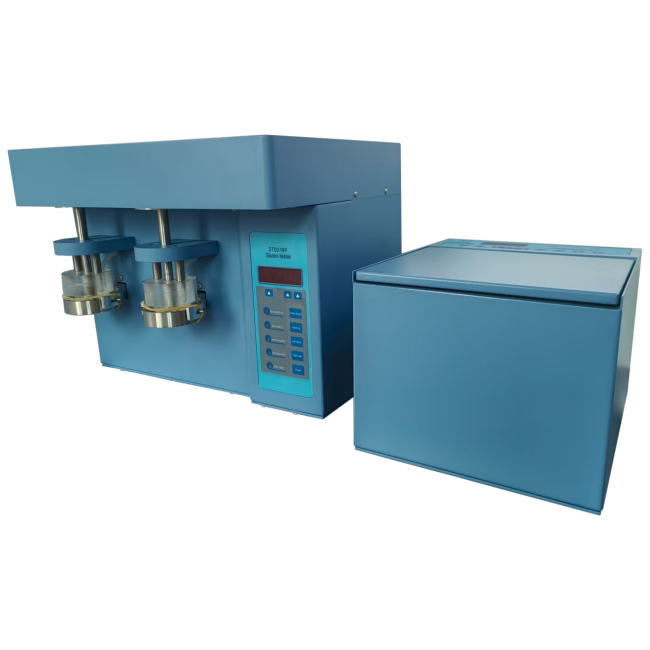

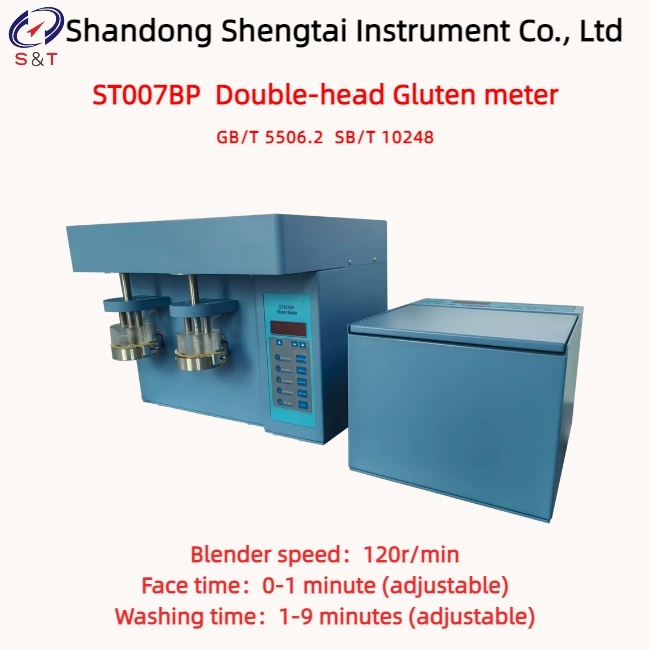

ST007BP Double-head Gluten meter
Remark:model ST007BP=ST007B+ST008+ST009
The ST007BP dual head gluten analyzer is a specialized instrument used to determine the gluten content and quality (gluten index) of flour. The gluten index is used to evaluate the strength of gluten. This instrument is suitable for the determination of wheat flour and whole wheat flour, widely used in food and flour processing, grain and oil research institutions, grain storage and other departments. Easy to operate and accurate in measurement. Technical indicators shall comply with the national standard GB/T5506.2-2024 "Wheat and wheat flour gluten content - Part 2: Instrumental determination of wet gluten and gluten index"
Working theory:
10g flour or wheat flour, added with 5ml brine, mix into dough in a cup with sifter for 20 seconds. Then wash it in brine for 5 min, and thus get gluten. With the centrifugal force, you can calculate the wet gluten content and gluten index by means of SB/T 10248-95.
ST007B Gluten Washing Machine Features:
● Increased range of washing time adjustment
● Dual pump water supply improves flow stability
● Can be operated with single or double heads
● Redesign the appearance to improve anti-corrosion performance
Main technical parameters
| Washing wheat flour amount | 10.00 ± 0.01g |
| Blender speed | 120r/min |
| Specification of fine washing net | GFIW0.08/0.045 (plain weave) (200 mesh/inch) |
| Coarse washing mesh specification | GFIW0.0630/0315 (plain weave) (26 mesh/inch) |
| Face time | 0-1 minute (adjustable) |
| Washing time | 1-9 minutes (adjustable) |
| Gluten content | The sum of two measurements should not exceed 1.0% of the average value |
| Working voltage | AC220V ± 10% 50Hz |
| Environmental temperature | 0-40℃ |
| Relative humidity | <80% |
| Dimensions | 280 * 320 * 380mm |
| Weight | 18kg |
T008 gluten index:
It is a special instrument for dehydration and gluten index determination of wheat flour wet gluten developed and produced according to GB/T5506.2-2008 "Wheat flour wet gluten determination method" and SB/T10248-95 "Wheat flour wet gluten determination method - gluten index method". The whole machine has the characteristics of stable operation, stable performance and convenient operation, and is an ideal alternative to similar imported instruments.
Technical Specifications
| Motor speed | 6000r/min, 3000 r/min |
| Screen box orifice plate | Φ 0.6mm×1.25mm |
| Working time | 025 ～ 5min(adjustable) |
| Motor power | 25W |
| Working voltage | AC220V |
| Total weight | 6kg |
ST009 Gluten drying Meter
It is a special instrument for measuring the content of dry gluten in wheat flour. This instrument is used with gluten washing instrument and gluten index meter (gluten centrifuge).
Technical specifications
| Optimum working temp | 100 ～ 180°C |
| Relative humidity | <90% |
| Power rating | 650W |
| Power supply | AC220V 50Hz |
| Weight | 2.5kg |
| Overall dimensions | 230 * 250mm * 110mm |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
