Drug Powder Digital Vibrating Density Meter Torque 0.86 N.M Photoelectric Induction ISO 3953
제품 상세 정보
| 테스트된 샘플의 무게 | ≤ 500.00g | 압축된 시료의 부피 | ≤ 250ml |
|---|---|---|---|
| 계산방법 | 광전 유도 | 모터의 허용 토크 | 0.86Nm |
| 전원공급장치 | AC 220V ± 10% 50Hz, 35W | 상대습도 | ≤85% |
| 강조하다 | digital vibrating density meter,powder density meter photoelectric induction,pharmaceutical density meter ISO 3953 |
||
제품 설명

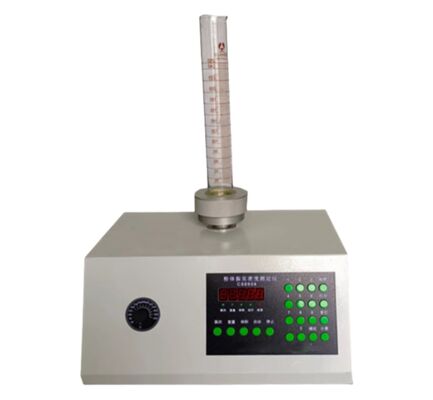

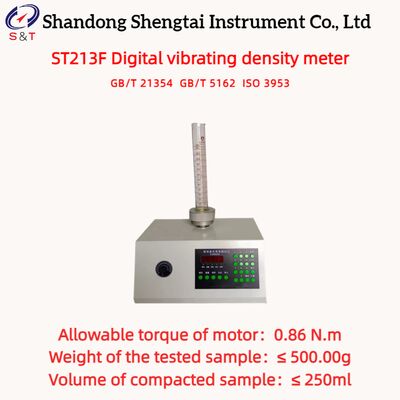

ST213F Digital vibrating density meter
Powder density refers to the mass corresponding to a unit volume of powder. Due to the presence of voids (or pores) between particles or within particles in the powder, the density of the powder is usually lower than the true density of the corresponding substance. Powder density can be divided into bulk density (also known as bulk density) and tap density according to different testing methods. Loose density refers to the loose state of a powder sample, which is uniformly and continuously filled with a known volume of measuring cup. By weighing the mass of the measuring cup and the powder sample, the loose density of the powder sample can be calculated. The compacted density refers to the density of the powder contained in a container after being compacted under specified conditions.
Compliant with standards:
It is based on the national standards GB/T 21354-2008 "General method for determination of tap density of powder products" and GB/T 5162-2020 "Determination of tap density of metal powders" ISO 3953: The 1993 method for determining the tap density of metal powders, with reference to the powder density testing instrument independently developed and manufactured by the United States Pharmacopeia, has independent intellectual property rights. The instrument includes all indicators specified in the national standard GB/T 5162-2020, ISO 3953:1993. For non-metallic powders, the powder density tester has expanded some functions, such as: the "vibration amplitude" has been extended from 3mm specified in the national standard to an integer adjustable range of 1mm to 15mm; The "vibration frequency" is adjustable from 100 to 300 times per minute as specified in the national standard, and has been extended to 0 to 300 times per minute. The "vibration frequency" has been extended from the national standard of 3000 times to any setting between 0 and 99999 times (note: when set to 0 times, the result output is "loose packing density").
Characteristics:
Composed of adjustable speed motors, vibration components, and other components. And the instrument has the characteristics of compact structure, firmness, and simple operation.
Main parameters:
| Weight of the tested sample | ≤ 500.00g |
| Volume of compacted sample | ≤ 250ml |
| Single vibration frequency |
≤ 0～99999 times (when set to 0 times, the output is "loose packing density") |
| Counting method | photoelectric induction |
| Allowable torque of motor | 0.86 N.m |
| Vibration frequency |
max 300 rpm ( 0～300rpm Continuing Adjust, USP regulation 300rpm) |
| Vibration amplitude |
max 15mm (1~15mm integer adjustable) |
| Repetitive error | ≤ 1% |
| Accuracy error | ≤ 1% |
| Measuring cylinder | 1 each for 25ml, 50ml, 100ml, and 250ml |
| Power supply | AC 220V ± 10% 50HZ, 35W |
| Relative humidity | ≤85% |
Other requirements: clean and dust-free environment, no mechanical vibration sources or electromagnetic interference sources around.
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Test object:
Various metal powders, such as aluminum powder, zirconium powder, nickel powder, tungsten powder, tin powder, zinc powder, molybdenum powder, magnesium powder, copper powder, as well as other rare metal powders, alloy powders, or metal oxide powders. Various non-metallic powders: such as talc, kaolin, calcium carbonate, coal powder, fluorescent powder, brucite, calcite, wollastonite, tourmaline, diamond, barite, fluorite, zeolite, boron carbide, clay, graphite, quartz, gypsum, bentonite, diatomaceous earth, zirconium silicate, corundum, mica, clay, titanium dioxide, etc. Other powders: such as soil, dyes, pharmaceuticals, pesticides, abrasives, coatings, food additives, catalysts, cement, river sediment, etc.
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Packing list
| Number | Name | Specifications | Quantity | Note |
| 1 | Automatic compaction density meter | Host | 1 unit | |
| 2 | Measuring cylinder | 3 pieces | ||
| 3 | Power line | 1 root | ||
| 4 | Certificate of Conformity Warranty Card | 1 copy | ||
| 5 | Instructions | 1 copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
