Total Pollutant Analyzer In Diesel Fuel Filter Volume 500ml Aperture 0.7 Microns GB/T 33400
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 진공도 | 압력 2KPa ~ 5KPa (압력계 해당 압력은 -0.099Mpa ~ -0.096Mpa입니다) | 필터 볼륨 | 500ml |
|---|---|---|---|
| 구멍 | 0.7 미크론 | 필터 멤브레인 직경 | 47mm |
| 악기 크기 | 350*280*420mm | 기기 무게 | 12kg |
| 강조하다 | diesel fuel pollutant analyzer,500ml diesel filter analyzer,0.7 micron aperture fuel tester |
||
제품 설명

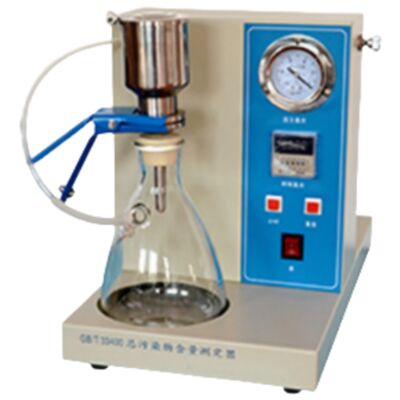

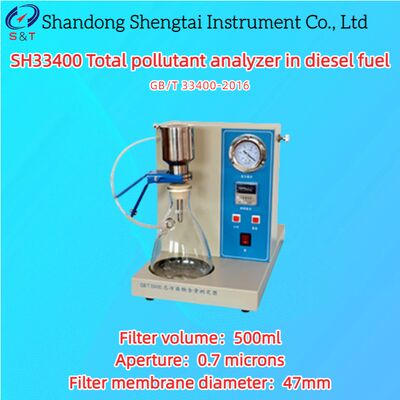

SH33400 Total pollutant analyzer in diesel fuel
SH33400 Diesel total pollutant detector is our company in accordance with the standard GB/T 33400-2016 "intermediate distillate oil, diesel oil and fatty acid methyl ester total pollutant content determination method" standard.
Used for the determination of total pollutant content in intermediate distillate oil, diesels and pure fatty acid methyl ester (BD100) whose volume fraction of fatty acid methyl ester is not more than 30% according to standard.
It is also used for the moving viscosity of not more than 8 mm²/s at 20℃, or the moving viscosity of not more than 5mm²/s at 40℃, and the total pollutant content of 12 mg/kg ~ 30 mg/kg of the sample, and the precision is specified;
It is also applicable to samples with total contaminant content in this range, whose precision is not specified.
Performance characteristics
● Filter , large capacity
● Filter membrane pad aperture is uniform, protect the filter membrane from damage
● Equipped with vacuum pump, the vacuum pumping pressure system is balanced and stable
● Precise pressure device, reliable control, convenient adjustment
Main technical specifications and parameters
| Working power supply | AC220V±10% 50Hz |
| Degree of vacuum | Pressure 2KPa ～ 5KPa (pressure gauge corresponding pressure is -0.099Mpa ～ -0.096Mpa) |
| Filter volume | 500ml |
| Aperture | 0.7 microns |
| Filter membrane diameter | 47mm |
| Instrument size | 350*280*420mm |
| Instrument weight | 12kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Set | 1 | |
| 2 | Filter device | Set | 1 | |
| 3 | Filtering flask | Piece | 1 | |
| 4 | Vacuum pump | Set | 1 | |
| 5 | Instruction | Copy | 1 | |
| 6 | Pack list | Copy | 1 | |
| 7 | Certificate warranty card | Copy | 1 |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
