Brinell Rotational Viscometer Ordinary Temp ～ -70℃ Rotation Speed 0.1-200 R/Min ASTM D2983
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 온도범위 | 평범한 온도 ～ -70 ℃ | 임시 제어 방법 | 디지털 PID 임시 컨트롤 |
|---|---|---|---|
| 로터 구성 | 로터 1~4개(표준) 로터 0개(옵션) | 점도 범위 | 1-6백만 Mpa. 초(cp) 15mpa. 아래에서는 로터 0 # 사용을 권장합니다. |
| 점도 온도 곡선 | 터치스크린 디스플레이 | 측정 오류 | ± 1% (FS) 뉴턴 유체 |
| 냉각 방식 | 압축기 냉각 | 타이밍 기능 | 터치스크린은 타이밍 기능을 표시합니다. |
| 강조하다 | Brinell rotational viscometer for lube oil,Rotational viscometer with -70℃ range,ASTM D2983 compliant viscometer |
||
제품 설명

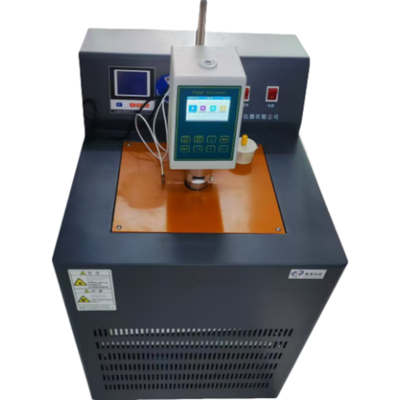

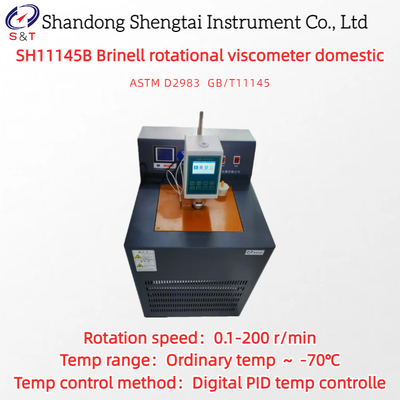

SH11145B Brinell rotational viscometer domestic
The SH11145B Low Temperature Brinell Viscometer for Lubricating Oil is designed and manufactured strictly in accordance with GB/T11145-2014 Determination of Low Temperature Viscosity of Lubricants using the Brockfeldt Viscometer Method. It is suitable for detecting automotive fluid lubricants with a viscosity range of 1 to 6000000mPa. s, such as gear oil, hydraulic transmission oil, industrial and automotive hydraulic oil. The method for determining the shear rate viscosity of automotive fluid lubricants involves placing the sample in a cold bath at the test temperature, connecting a Burgundy viscometer and a spindle, selecting the appropriate rotational speed, and maintaining a constant temperature for 2 to 16 hours before measuring the low-temperature Burgundy viscosity of the sample.
Main technical specifications, parameters, and performance characteristics:
| Standard | ASTM D2983 GB/T11145 |
| Range of temperature | Ordinary temp ～ -70℃ |
| Temp control method | Digital PID temp controlle |
| Rotation speed | 0.1-200 r/min |
| Rotor configuration | 1-4 rotors (standard) 0 rotors (optional) |
| Viscosity range | 1-6 million Mpa. s (cp) 15mpa. s below, it is recommended to use rotor 0 # |
| Viscosity temp curve | Touch screen display |
| Measurement error | ± 1% (FS) Newtonian fluid |
| Repeatability | ± 0.2% (FS) Newtonian fluid |
| Screen display | Viscosity, shear rate, shear stress, rotational speed, temperature, percentage torque, rotor number, and the maximum measurable viscosity value of the selected rotor at the current rotational speed, etc |
| Timing function | Touch screen displays timing function |
| Data interface | equipped with RS232 printing interface, can directly connect to computer printing interface |
| Printing function | Connect to a micro printer to print experimental data |
| Cooling method | Compressor cooling |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Rotors 1-4 | 1 | Set | |
| 3 | Rotor No.0 | 1 | Set | |
| 4 | Power adapter | 1 | Set | |
| 5 | Protective frame | 1 | Piece | |
| 6 | Base | 1 | Piece | |
| 7 | Lifting column | 1 | Set | |
| 8 | Temperature sensor | 1 | Piece | |
| 9 | Crossbar | 1 | Root | |
| 10 | Hex key | 1 | Piece | |
| 11 | Wrench | 1 | Piece | |
| 12 | User manual, certificate of conformity, warranty card | 1 | Set |
