Light Diesel Automatic Mercaptan Sulfur Tester 0.0003% ～ 0.01% (M/M) ASTM D3227
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 측정 범위 | 0.0003% ～ 0.01% (m/m) | 잠재적인 측정 범위 | 0 ~ ±1999.5mv |
|---|---|---|---|
| 기본 오류 | 0.1% ± 0.5mV | 뷰렛의 정확성 | ±0.1% F/S |
| 기기 크기 | 350*280*380mm | 기기 무게 | 18Kg |
| 강조하다 | Light diesel sulfur tester ASTM D3227,Automatic mercaptan sulfur tester,Lube oil testing equipment with warranty |
||
제품 설명

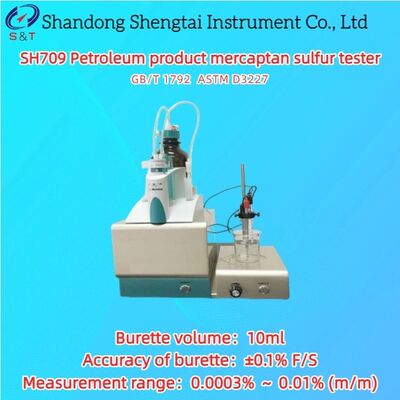

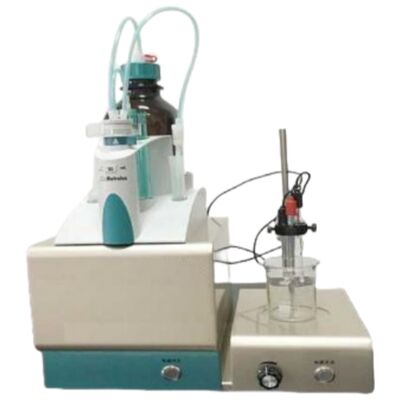

SH709 Petroleum product mercaptan sulfur tester
The SH709 mercaptan sulfur analyzer meets standards such as GB/T 1792 and ASTM D3227. Applicable to the determination of mercaptan sulfur in jet fuel, gasoline, kerosene, and light diesel without hydrogen sulfide. The determination of mercaptan sulfur is of great significance in evaluating the odor of jet fuel, gasoline, kerosene, and light diesel, its adverse effects on rubber components of fuel systems, and its corrosion to fuel systems.
The automatic mercaptan sulfur tester adopts the measurement principle of Potentiometric titration. Dissolve the hydrogen sulfide free sample in isopropanol solvent of Sodium acetate, conduct potential titration with Silver nitrate alcohol Standard solution, use pH glass electrode as reference electrode, mercaptan sulfur electrode as indicator electrode, and the potential jump between the two electrodes indicates the titration end point. During the titration process, mercaptan sulfur precipitates into mercaptan silver.
Technical features
● Complete set of instruments: host machine, titration unit, computer (including operating software), printer, etc.
● Windows operating platform, man-machine direct dialogue, convenient operation, with workstation function.
● It has the function of continuous titration.
● Real-time display of titration curve, storage and printing of titration curve, results and data.
● Automatic cleaning, automatic value filling.
● Automatic identification of the end point, automatic filter out false end point, and can be manually selected to judge the end point.
Technical indicators
| Measurement range | 0.0003% ～ 0.01% (m/m) |
| Accuracy | Relative error ≤ 5% |
| Potential measurement range | 0 ～ ±1999.5mv |
| Basic error | 0.1% ± 0.5mv |
| Relative error | ≤5% |
| Accuracy of burette | ±0.1% F/S |
| Burette volume | 10ml |
| Accuracy | ≤0.01ml |
| Instrument size | 350*280*380mm |
| Instrument weight | 18kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Set | 1 | |
| 2 | Microcomputer host | Set | 1 | User can provide |
| 3 | Keyboard | Set | 1 | User can provide |
| 4 | Printer | Set | 1 | Prepared by user |
| 5 | A magnetic stirrer | Set | 1 | |
| 6 | Serial communication line | Piece | 1 | |
| 7 | Print cable | Piece | 1 | User can provide |
| 8 | Short circuit plug | Piece | 1 | |
| 9 | Fuse (1.5A) | Piece | 2 | In the host power socket |
| 10 | Mercaptan sulfur electrode | Piece | 1 | Specially made by our factory |
| 11 | Magnetic stirrer | Piece | 1 | |
| 12 | Power cord | Piece | 1 | |
| 13 | Instruction manual | Copy | 1 | |
| 14 | Packing list | Copy | 1 | |
| 15 | Certificate | Copy | 1 |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
