Automatic Fire-Resistant Oil Spontaneous Ignition Point Tester RT ～ 800℃ ASTM E659
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 임시 제어 범위 | 상온 ~ 800℃ | 탬프 콘트롤 정확도 | ±1℃ |
|---|---|---|---|
| 타이밍 정확도 | 1S | 반복성 | ≤10C |
| 재현성 | ≤ 20 | 힘 | <1500W |
| 기기 크기 | 450*380*550mm | 전원공급장치 | AC220V±22V 50Hz ±2.5Hz |
| 강조하다 | Automatic oil ignition point tester,Fire-resistant lube oil tester,ASTM E659 oil testing equipment |
||
제품 설명

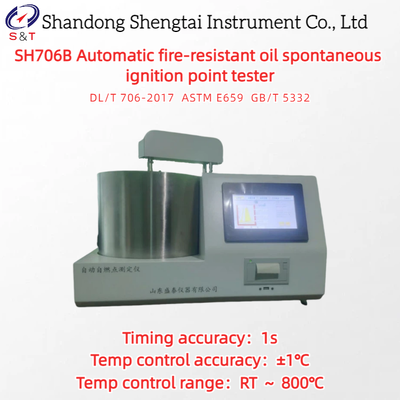

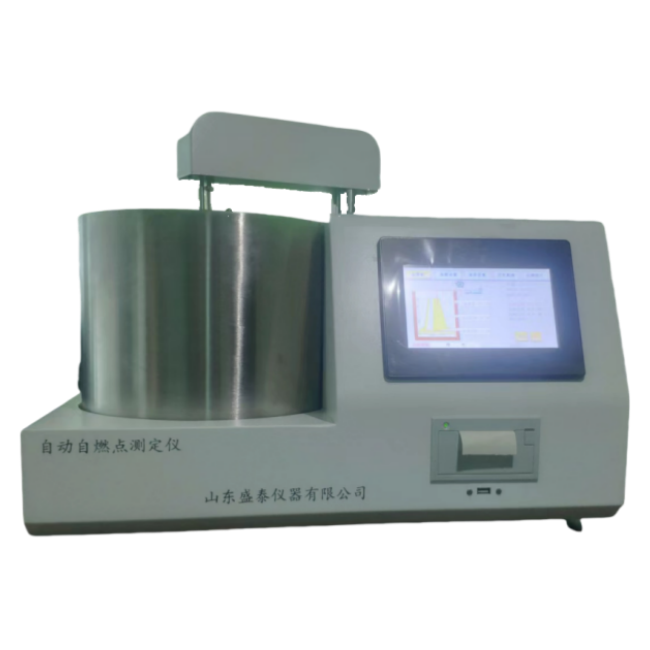

SH706B Automatic fire-resistant oil spontaneous ignition point tester
SH706B automatic Self-ignition Point Tester is designed and manufactured according to the People's Republic of China power industry standard DL/T 706-2017 and ASTM E659.
Instrument characteristics
The instrument adopts advanced microcomputer technology and color display with touch screen, and adopts advanced temperature control mode to automatically complete the determination of anti-fuel spontaneous combustion point. It has the functions of automatic constant temperature countdown after reaching the pre-set spontaneous combustion point, automatic sampling, automatic detection of spontaneous combustion point, and automatic printing of results.
Performance characteristics
● Automatic ventilation device ensures sufficient oxygen in the furnace, making it easy to collect spontaneous combustion points.
● When the temperature reaches the required level, automatically drop 50 into the flask μ L sample.
● Using three point temperature measurement (three sensors): bottom center, side middle, and upper.
● Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage.
● Output Format: The output format of the result USB drive is CSV or Excel.
● Standard printing: Standard micro printer for automatic measurement and thermal printing.
Technical parameters
| Standard | DL/T 706-2017 ASTM E659 GB/T 5332 |
| Temp control range | RT ～ 800℃ |
| Temp control accuracy | ±1℃ |
| Timing accuracy | 1s |
| Power supply | AC220V±22V 50Hz ±2.5Hz |
| Power | ＜1500W |
| Ambient temp | 5℃ ～ 35℃ |
| Relative humidity | ≤ 85％ |
| Repeatability | ≤10℃ |
| Reproducibility | ≤ 20 |
| Instrument size | 450*380*550mm |
| Instrument weight | 35 kg |
| Package size | 520*450*620mm |
| Package weight | 43 kg carton |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes with out prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Sampler | 1 | Set | On the host |
| 3 | Triangular flask | 1 | Piece | |
| 4 | Instruction | 1 | Copy | |
| 5 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
