Lubricating Grease Shear Testing Machine Motor 1400rpm Shear Rate 60 Times/Min ASTM D217
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모터 | 수평 단상 커패시터 시작 | 운동 속도 | 1400 rpm |
|---|---|---|---|
| 전단 속도 | 60 회/분 | 최대 계산 용량 | 999999 |
| 기기 크기 | 350*320*380mm | 기기 무게 | 38.5kg |
| 전원공급장치 | AC220 50HZ | 힘 | 370W |
| 강조하다 | Lubricating grease shear tester,Grease shear rate machine 1400rpm,ASTM D217 grease testing equipment |
||
제품 설명

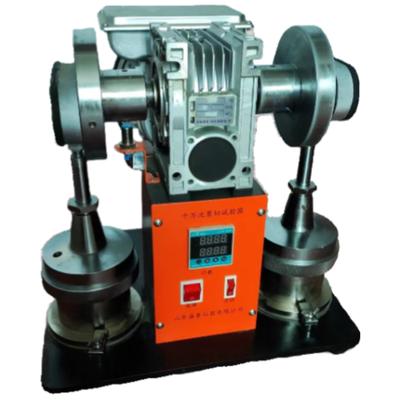

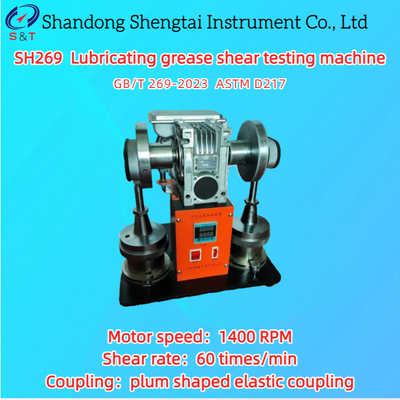

SH269 Lubricating grease shear testing machine
SH269 Grease Worker according to GB/T269-2023 "Grease and petroleum grease cone penetration determination" test standard requirements in the specified test conditions, after the change of mechanical shear work to judge the mechanical stability of grease, to extend the work cone penetration or shear stability, the unit is 0.1mm.
Performance characteristics
● The use of motor drive reducer to achieve 60 times/min shear rate
● Extended coning test and optional shear stability test
● The display can display the cutting times by itself
● Counter can count by itself
● The whole instrument structure is compact and complete
● A special cooling fan is installed behind the motor to ensure the continuous operation of the whole instrument
Technical parameters
● Worm gear reducer: double outlet gear reducer with transmission ratio of 25:1 is adopted. A pair of eccentric mechanisms are installed on the cochlear shaft on both sides of the reducer.
| Motor | Horizontal single-phase capacitor starting |
| Motor speed | 1400 RPM |
| Coupling | plum shaped elastic coupling |
| Shear rate | 60 times/min |
| Maximum counting capacity | 999999 |
| Lubricating grease actuator working stroke | 67-71mm |
| Orifice plate on each hole diameter | Ф6.35 + 0.13 |
| Power supply | AC220 50Hz |
| Power | 370W |
| Istrument size | 350 * 320 * 380mm |
| Instrument weight | 38.5kg |
| Package size | 490 * 440 * 420mm |
| Package weight | 41.9kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Power cord | 1 | Root | |
| 3 | Instructions | 1 | Copy | |
| 4 | Packing list | 1 | Copy | |
| 5 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
