Quench Oil Cooling Performance Tester RT ～ 900 ℃ Silver Probe Automatic Lifting ISO 9550
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 가열방식 | PID 자체 조정, 자동 조정 | 온도 범위 | 실온 ~ 900℃ |
|---|---|---|---|
| 용광로 공동 크기 | Φ 25 * 200mm 이상 | 프로브 유형 | 실버 프로브 |
| 중간 컨테이너 | 300ml | 포장 크기 | 480*430*590mm |
| 소비전력 | 2000W | 작업 전원 공급 장치 | AC220V ± 10% 50Hz |
| 강조하다 | oil cooling performance tester,automatic lifting lube oil tester,ISO 9550 oil testing equipment |
||
제품 설명

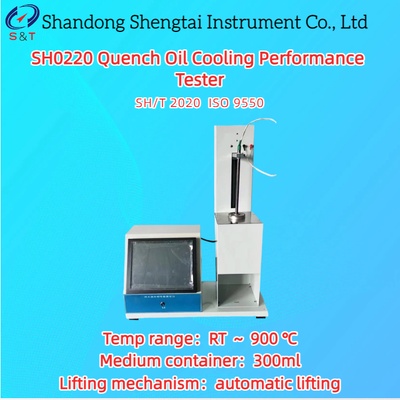

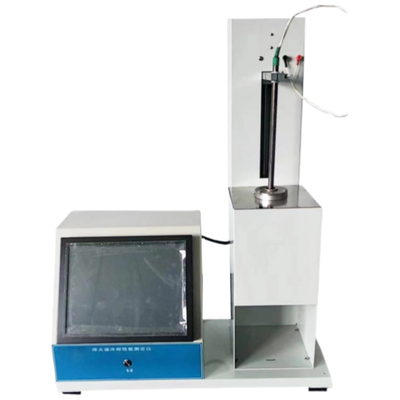

SH0220 Quench Oil Cooling Performance Tester
The SH0220 Quenching Oil Cooling Performance Tester is designed and manufactured strictly in accordance with the standard SH/T 0220 Heat Treatment Oil Cooling Performance Testing Method. It is used to test the maximum cooling rate and cooling time of the cooling performance of quenching oil and other heat treatment oils. It is suitable for testing the maximum cooling rate, temperature at which the maximum cooling rate is located, cooling rate at 300℃, cooling time to 600℃, cooling time to 400℃, and cooling time to 200℃ of water-based and oil-based cooling media under laboratory standard conditions.
Main technical specifications, parameters, and performance characteristics:
| Heating method | PID self-tuning, automatic adjustment |
| Temperature range | RT ～ 900 ℃ |
| Furnace cavity size | Greater than Φ 25 * 200mm |
| Probe type | Silver probe |
| Curve display | Curve display chart with temperature and time |
| Medium container | 300ml |
| Lifting mechanism | automatic lifting |
| Printing function | automatically print temperature time curve and cooling characteristics |
| Working power supply | AC220V ± 10% 50Hz |
| Power consumption | 2000W |
| Packaging size | 480 * 430 * 590mm |
| Weight | 35kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Silver probe | 1 | Piece | |
| 3 | Media container | 1 | Piece | |
| 4 | Power line | 1 | Strip | |
| 5 | Operation instructions | 1 | Copy | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate of Conformity Warranty Card | 1 | Copy |
