6 Holes Hydraulic Oil Thermal Stability Tester RT ～ 200℃ A1-3 Aluminum Ingot ASTM D2070
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 임시 제어 범위 | 상온 ~ 200℃ | 탬프 콘트롤 정확도 | ±1℃ |
|---|---|---|---|
| 테스트 유닛 | 6 홀 | 알루미늄 목욕 재료 | A1-3 알루미늄 주괴 |
| 전원 공급 장치 | AC220V±10% 50Hz | 기기 크기 | 550*550*450mm |
| 강조하다 | hydraulic oil thermal stability tester,aluminum ingot lube oil tester,ASTM D2070 oil testing equipment |
||
제품 설명

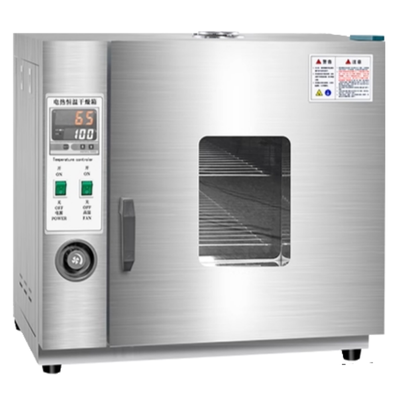

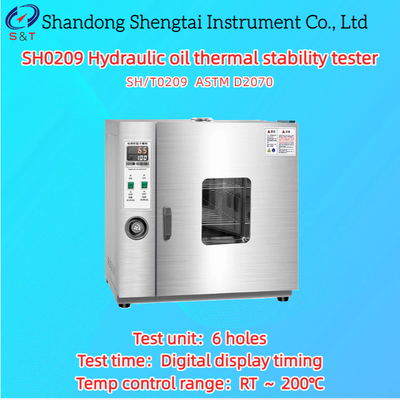

SH0209 Hydraulic oil thermal stability tester
SH0209 hydraulic oil thermal stability tester, this instrument according to SH/T0209 "hydraulic fluid thermal stability determination method" manufacturing, this instrument is suitable for the determination of mineral oil type and forming hydraulic fluid.
Performance characteristics
● The instrument adopts imported digital display PID program temperature controller, using A special high-speed 16 bit A/D converter, automatic temperature drift, zero drift correction technology, to ensure the accuracy of temperature control of the instrument.The instrument temperature controller adopts the special non-overshoot PID algorithm and PID self-tuning technology, to ensure that the instrument is not overshoot, not under-adjust, temperature control accuracy up to ±0.1℃.
● Temperature measurements are made using a PT100 sensor.The sensor is sensitive, reliable, can quickly and timely reflect the temperature changes, through the digital display PID temperature controller control, can fully ensure the standard requirements of temperature control precision.
● The instrument shape adopts the integral frame structure, the internal space is large.The shell is made of high quality cold-rolled steel plate, and the surface is treated by spraying technology. The shape is novel and beautiful.
● The inner liner is made of stainless steel plate after anticorrosion treatment, processing and forming.
● There is a double glass observation window in the middle of the door, which can observe the situation of heated objects in the working room at any time.
● The door of the box is inlaid with high temperature resistant adhesive strip, which has good sealing ability to prevent heat loss.
● The air outlet is set at the back of the studio, which can discharge the moisture released by the heater out of the box at any time during the working process.The temperature in the box is forced to circulate by the fan to ensure that the temperature uniformity is controlled within ±2.5%.
Technical parameters
| Heating mode | Stainless steel electric heating tube heating |
| Heating power | 2KW |
| Temp control range | RT ～ 200℃ |
| Temp control accuracy | ±1℃ |
| Temp control mode | Imported digital PID temperature controller |
| Test unit | 6 holes |
| Test time | Digital display timing |
| Aluminum bath material | A1-3 aluminum ingot |
| Power supply | AC220V±10% 50HZ |
| Studio dimensions | 550×450×550mm(L*W*H) |
| Instrument size | 550*550*450mm |
| Instrument weight | 30kg |
| Ambient temp | 0 ～ 45℃ |
| Relative humidity | Less than 80% |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Set | 1 | |
| 2 | Aluminum bath | Piece | 1 | |
| 3 | Beaker | Piece | 6 | |
| 4 | Steel rod | Piece | 6 | |
| 5 | Copper rod | Piece | 6 | |
| 6 | Power cord | Root | 1 | |
| 7 | Fuses | Piece | 2 | 10 A |
| 8 | Instructions | Copy | 2 | |
| 9 | Packing list | Copy | 1 | |
| 10 | Certificate of conformity | Copy | 1 |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
