Refrigerating Oil And Refrigerant Flocculation Point Tester RT ～ -70±0.5℃ GB/T 12577
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 임시 제어 범위 | 상온 ~ -70±0.5℃ | 샘플 장치 | 두배의 튜브 |
|---|---|---|---|
| 기기 크기 | 720*450*680mm | 기기 무게 | 75kg |
| 휴가 시스템 | 진공 흡수배열 퀵 커넥터 연결 | 타이밍 모드 | 디지털 표시 타이머 실험은 끝나고 알람 프롬프트를 발표합니다 |
| 강조하다 | refrigerating oil flocculation point tester,refrigerant flocculation tester GB/T 12577,lube oil testing equipment with warranty |
||
제품 설명

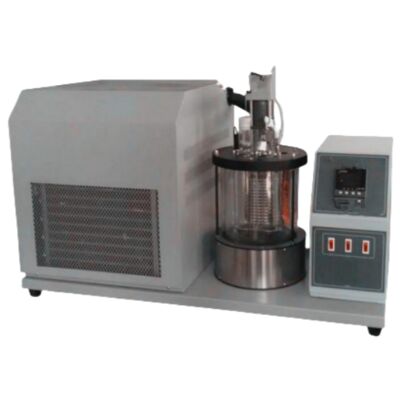

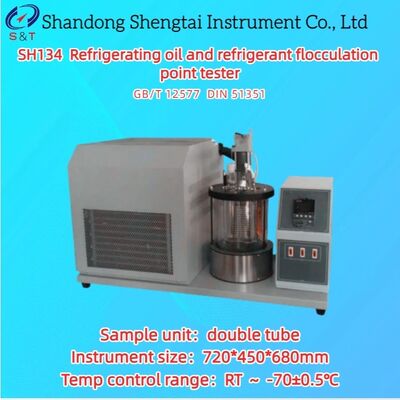

SH134 Refrigerating oil and refrigerant flocculation point tester
SH134 refrigerating oil flocculation point tester is designed and manufactured according to "refrigerating oil flocculation point determination method" GB/T 12577, DIN 51351.It is suitable for the determination of flocculation point of mineral cold engine oil and synthetic cold engine oil.
The principle of the flocculation point tester test is: a certain amount of sample and refrigerant mixed in the test tube, intersoluble into the cold bath of the flocculation point tester, according to a certain speed gradually cooling cooling, under the light observation, when there began to be opacifying or flocculation phenomenon, write down the temperature at this time.
Frozen oil flocculation point tester is suitable for mineral oil and synthetic oil refrigerating oils.
Technical indicators
| Standard | GB/T 12577 DIN 51351 |
| Refrigeration mode | Imported double compressor cascade refrigeration |
| Temp control mode | Imported digital PID temperature controller |
| Temp control range | RT ～ -70±0.5℃ |
| Vacation system | Vacuum pump suction quick connector connection |
| Timing mode | digital display timer experiment is over, sound alarm prompt |
| Sample unit | double tube |
| Instrument size | 720*450*680mm |
| Instrument weight | 75kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Rubber stopper | 1 | Piece | |
| 3 | Test tube | 1 | Piece | |
| 4 | Temperature sensor | 1 | Piece | |
| 5 | Power cord | 1 | Root | |
| 6 | Instruction | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
