2 Work Unit Grease Drum Stability Tester 21～38℃ PT100 Sensor Digital Timer ASTM D1831
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 임시 제어 범위 | 21 ℃ 38 8 | 운동 속도 | 155 ～ 180r/분 |
|---|---|---|---|
| 작업 단위 | 2 | 가열 모드 | 전기 가열 코일 |
| 타이밍 | 디지털 타이머 | 기기 크기 | 500×440×450mm |
| 전원 공급 장치 | AC220V 50HZ | 전체 전력 | 1000W |
| 강조하다 | grease drum stability tester ASTM D1831,lube oil testing equipment PT100 sensor,digital timer grease tester 21～38℃ |
||
제품 설명

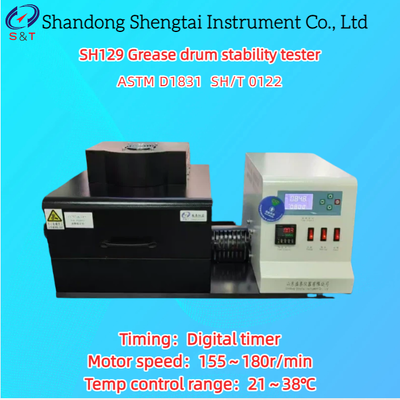

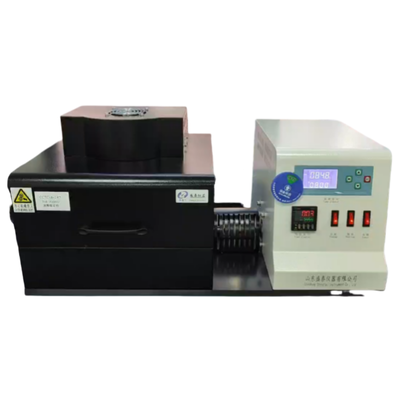

SH129 Grease drum stability tester
SH129 grease drum stability instrument is applicable to standard ASTM D1831 SH/T0122, the operation of the instrument: with a certain amount of samples, at room temperature, after working on the drum test machine for 2h, determine the work of grease before and after the test coning degree.
The instrument is suitable for measuring the consistency change of grease after working on the drum tester, and is used to judge the mechanical shearing stability of grease.
Performance characteristics:
● Stainless steel roller Φ 90 * 180 mm, 5kg
● The idling wheel has a positioning ring to control the normal operation of the drum;
● The lower part is equipped with a driving motor, so that the speed is maintained in 155 ~ 180r/min;
● Belt drive drum;
● Microcomputer temperature controller, digital display, precision ±5℃, PT100 sensor;
● Digital timer, record working time, with a buzzer alarm;
● Can test two rollers at the same time;
● The instrument box cover oil a thermometer hole, can be temperature correction;
Technical parameters
| Standard | ASTM D1831 SH/T 0122 |
| Heating mode | Electric heating coil |
| Timing | Digital timer |
| Temp control range | 21～38℃ |
| Motor speed | 155～180r/min |
| Work unit | 2 |
| Whole power | 1000W |
| Power supply | AC220V 50HZ |
| Instrument size | 500×440×450 mm |
| Instrument weight | About 30kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Roller | 2 | Piece | |
| 3 | Power cord | 1 | Piece | |
| 4 | Instruction | 1 | Copy | |
| 5 | Packing list | 1 | Copy | |
| 6 | Certificate warranty card | 1 | Copy |
