6 Holes Wide Temperature Drop Point Meter For Grease RT ～ 400℃ Metal Bath ASTM D2265
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 측정 범위 | 상온 ~ 400℃ | 표시 정밀도 | ± 0.1 ℃ |
|---|---|---|---|
| 뚱뚱한 컵의 수 | 6 | 온도계 | -5~400℃ |
| 기기 크기 | 365*200*360mm | 기기 무게 | 11kg |
| 강조하다 | wide temperature grease drop point meter,metal bath lube oil tester,ASTM D2265 grease testing equipment |
||
제품 설명

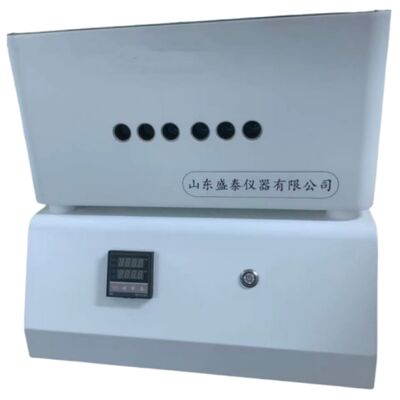

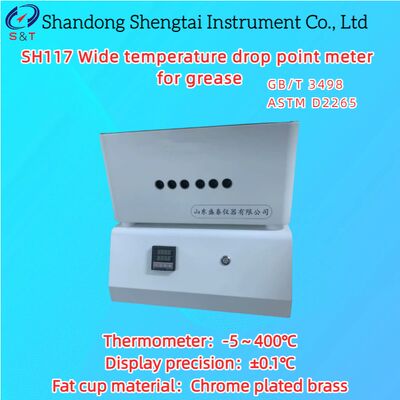

SH117 Wide temperature drop point meter for grease
SH117 wide temperature range drop point tester in accordance with GB/T 3498-2008, ASTM D2265 and other standards to determine the wide temperature range drop point of grease, that is, under the specified test, the temperature at which the grease reaches a certain flow.
Dropping point: The temperature at which lubricating grease reaches a certain fluidity when heated under specified conditions is called the drop point, expressed in degrees Celsius.
| Product model | SH117 |
| Product Name | Lubricating grease wide temperature drop point tester |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | Measure the drop point of lubricating grease over a wide temperature range, which is the temperature at which the grease reaches a certain fluidity under a specified test. |
| Standards | GB/T 3498-2008 ASTM D2265 |
| Simple technical features or parameters | Using an aluminum bath for heating, the temperature of each hole must be consistent, and it is possible to conduct tests on 6 samples simultaneously. |
Instrument Features
● Suitable for measuring the drop point of lubricating grease in wide temperature range, meeting the standard requirements of GB/T 3498 "wide temperature drop point determination of lubricating grease".
● Adopting aluminum bath heating, the temperature of each hole should be consistent.
● Testing 6 samples at the same time.
Technical Specifications
| Measuring range | RT ～ 400℃ |
| Temp control method | Digital Meter, constant temp, stability |
| Display precision | ±0.1℃ |
| Fat cup material | Chrome plated brass |
| Number of fat cup | 6 |
| Fat cup, test tube | Comply with GB/T 3498 |
| Thermometer | -5～400℃ |
| Thermometer scale | 1℃, comply with GB/T514-83 |
| Instrument size | 365*200*360mm |
| Instrument weight | 11kg |
| Package size | 430*420*530mm |
| Package weight | 14kg carton |
| Export package size | 435*360*490mm |
| Export package weight | 16kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Dropping test tube and other sets | 6 | Set | |
| 3 | Thermometer | 7 | Piece | |
| 4 | Metal rod | 1 | Copy | |
| 5 | Thermometer depth gauge | 1 | Piece | |
| 6 | Power cord | 1 | Copy | |
| 7 | Instructions | 1 | Copy | |
| 8 | Packing list | 1 | Copy | |
| 9 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
