2 Holes Automatic Crude Oil Condensation Point Tester -40 ～ 70℃ Accuracy 0.1℃ SY/T0541
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 테스트 샘플의 수 | 2 | 냉장 방법 | 압축기 냉동 |
|---|---|---|---|
| 온도 측정 범위 | -40 ~ 70C | 탬프 콘트롤 정확도 | 0.1℃ |
| 기기 크기 | 510*485 550mm | 기기 무게 | 50.45kg |
| 인쇄기 | 마이크로 프린터 | 전체 전력 | 단지 2000W |
| 강조하다 | automatic crude oil tester with warranty,2 holes oil condensation point tester,lube oil testing equipment SY/T0541 |
||
제품 설명

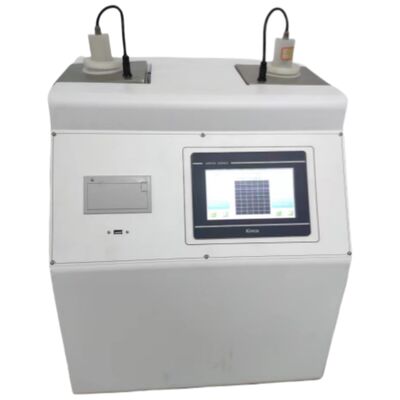

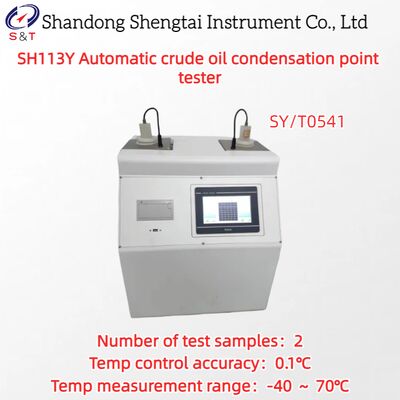

SH113Y Automatic crude oil condensation point tester
SH113Y automatic crude oil condensation point tester is designed and manufactured based on SY/T0541 crude oil condensation point measurement method. It adopts modern advanced technology and integrates mechanical, optical, electronic and computer technologies. It can automatically test the condensation point of petroleum products. This instrument uses photoelectric detection technology, automatic tilt method of glass tube, and imported compressor refrigeration system to ensure that the required refrigeration depth is reached.
Technical performance
● Large color LCD screen display, full Chinese human-computer dialogue interface, no logo keyboard,
● Simulate and trace the function curve of temperature and test time.
★ Remote upgrade: With TCP network transmission function, software remote upgrade can be performed later (optional)
★ Data sharing: can be accessed into the LIMS system of the group company (optional)
Instrument features
| Display method | Large color LCD screen |
| Standard | SY /T 0541 |
| Temp measurement range | -40 ～ 70℃ |
| Cold bath temp range | -40℃ ～ RT |
| Sample measurement range | -25℃ ～ RT |
| Temp control accuracy | 0.1℃ |
| Number of test samples | 2 |
| Number of bath holes | Dual temp dual bath |
| Refrigeration method | compressor refrigeration |
| Detection method | photoelectric sensor detection |
| Tilting method | glass test tube automatically tilts |
| Result output | USB |
| Printer | Micro printer |
| Whole power | No more than 2000W |
| Power supply | AC220V±10% 50Hz |
| Instrument size | 510*485 550mm |
| Instrument weight | 50.45kg |
| Package size | 580*550*590mm |
| Package weight | 60kg wooden crate |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be alight changes without prior notice.
Automatic condensation point tester packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Main engine | 1 | Unit | |
| 2 | Solidification glass tube | 2 | Piece | |
| 3 | condensation point sensor | 2 | Piece | |
| 4 | Power line | 1 | Root | |
| 5 | Fuse | 1 | Piece | |
| 6 | Operating instruction | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
