2 Sets Petroleum Cloud Point Tester RT ～ -70℃ Small LCD Display ASTM D2500
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 테스트 샘플 | 2세트 | 디스플레이 방법 | 작은 LCD 디스플레이 |
|---|---|---|---|
| 임시 제어 범위 | 상온 ~ -70℃ | 탬프 콘트롤 정확도 | ±0.5℃ |
| 냉장 시스템 | 신형 냉동압축기(듀얼압축기) | 환경 임시 | ≤ 30 ℃ |
| 상대습도 | ≤ 85% | 힘 | 단지 1500W |
| 강조하다 | petroleum cloud point tester,LCD display cloud point tester,ASTM D2500 lube oil tester |
||
제품 설명

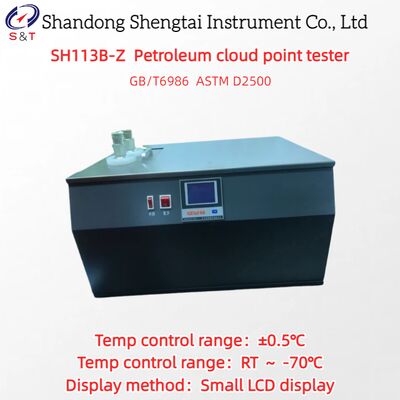

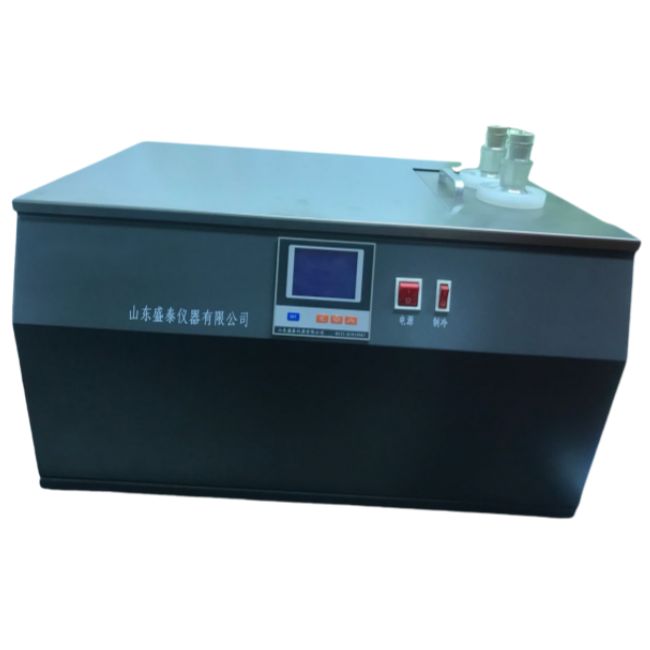

SH113B-Z Petroleum cloud point tester
SH113B-Z Petroleum Cloud Point Tester is designed and manufactured in accordance with the requirements of the People's Republic of China standard "Petroleum Cloud Point Determination Method" (GB 6986-1986), and is suitable for measuring the cloud point of petroleum products according to the methods specified in the above standards.
The cloud point is the temperature at which a clear and clean liquid petroleum product becomes misty or turbid due to the presence of wax crystals under specified test conditions, expressed in degrees Celsius
| Product model | SH113B-Z |
| Product Name | Cloud point meter metal bath |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Project test | Heavy oil, crude oil, dark oil and other petroleum products |
| Standard | GB/T6986 ASTM D2500 |
| Simple technical features or parameters | Temp control range: RT ～ -70 ℃, using compressor refrigeration, two sets of tests can be conducted simultaneously |
Main technical features
● Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.
● The output mode is small LCD display, with good temperature control stability.
● The main machine is heated in a metal bath, without the need to replace the medium alcohol, and the temperature drops quickly.
● Imported cascade compressor
Main technical parameters
| Test sample | 2 sets |
| Display method | Small LCD display |
| Temp control range | RT ～ -70℃ |
| Cold bath temp range | -70℃ ～ RT |
| Sample measurement range | -55℃ ～ RT |
| Cloud point measurement range | RT ～ -55℃ |
| Temp control accuracy | ±0.5℃ |
| Refrigeration system | New refrigeration compressor (dual compressor) |
| Environment temp | ≤ 30℃ |
| Relative humidity | ≤ 85% |
| Power | No more than 1500W |
| Package list | 890*530*480mm |
| Package weight | 75kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any up dates to the instrument, they may be slight changes without prior notice.
Details of cloud point measuring instrument for petroleum products
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Cloud point glass test tube | 2 | piece | |
| 3 | Cloud point thermometer | 2 | piece | |
| 4 | Power cord | 1 | piece | |
| 5 | Fuse tube | 1 | piece | |
| 6 | Instruction manual | 1 | copy | |
| 7 | Packing list | 1 | copy | |
| 8 | Certificate warranty card | 1 | copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
