2 Holes Petroleum Cold Filter Point Tester -70℃ ～ RT Alcohol Bath ASTM D6371
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 견본 | 2세트 | 호스트 냉각 | 알코올 목욕 |
|---|---|---|---|
| 임시 제어 범위 | -70 ℃ ~ RT | 콜드 필터 포인트 측정 범위 | -55 ℃ ~ RT |
| 탬프 콘트롤 정확도 | ± 0.5 ℃ | 전력 소비 | <1500W |
| 환경 온도 | ≤ 30 ℃ | 상대습도 | ≤ 85% |
| 강조하다 | cold filter point tester petroleum,2 holes alcohol bath tester,ASTM D6371 lube oil tester |
||
제품 설명

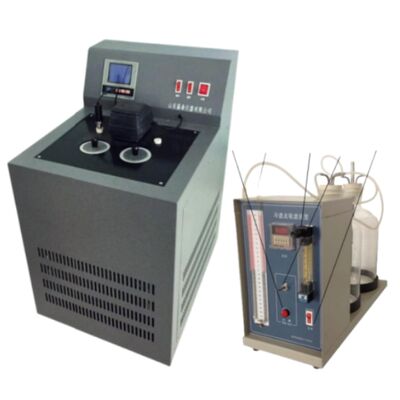

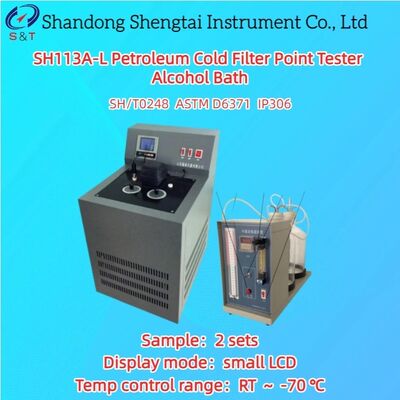

SH113A-L Petroleum Cold Filter Point Tester Alcohol Bath
The SH113A-L petroleum cold filter point analyzer (alcohol bath) is designed and manufactured in accordance with the requirements of the People's Republic of China standard SH/T0248, and is suitable for determining the cold filter point of petroleum products according to the methods specified in the above standards.
Compliant with standard: SH/T0248 ASTM D6371 IP306
Main technical specifications, parameters, and performance characteristics:
● Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.
● The output mode is a small LCD display with good temperature control stability.
● The host is cooled by an alcohol bath, which cools down quickly.
● Imported stacked compressor.
| Sample | 2 sets |
| Display mode | small LCD |
| Host cooling | alcohol bath |
| Working power supply | AC220V ± 10% 50Hz |
| Temp control range | -70 ℃ ～ RT |
| Cold filter point measurement range | -55 ℃ ～ RT |
| Temp control accuracy | ± 0.5 ℃ |
| Refrigeration system | New type of refrigeration compressor (dual compressor) |
| Environmental temp | ≤ 30 ℃ |
| Relative humidity | ≤ 85% |
| Power consumption | ＜1500W |
| Packaging size | 480 * 530 * 590mm |
| Weight | 75kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Cold filtration point test tube | 2 | Piece | |
| 3 | Cold filter point thermometer | 2 | Piece | |
| 4 | Cold filter siphon tube | 1 | Piece | |
| 5 | Cold filter point filter screen | 1 | Piece | |
| 6 | Main components of cold filter point filter | 1 | Piece | |
| 7 | Cold filter point suction filter | 1 | Unit | |
| 8 | Power line | 1 | Strip | |
| 9 | Operation instructions | 1 | Copy | |
| 10 | Packing list | 1 | Copy | |
| 11 | Certificate of Conformity Warranty Card | 1 | Copy |
