Fully Automatic Four Hole Kinematic Viscometer 14L RT ～ 100 ℃ Dark Petroleum ASTM D445
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 온도 측정 범위 | 실온 ~ 100℃ | 정확도를 표시합니다 | 0.1 ℃ |
|---|---|---|---|
| 디스플레이 모드 | 인체감지 터치스크린 | 점도 튜브 고정물 | 304 스테인레스 스틸 |
| 목욕량 | 14L | 인쇄기 | 마이크로 프린터가 장착되었습니다 |
| 결과 출력 | USB 드라이브 출력 | 작업 전원 공급 장치 | AC220V ± 10% 50Hz |
| 강조하다 | fully automatic kinematic viscometer,four hole lube oil tester,dark petroleum viscosity analyzer |
||
제품 설명

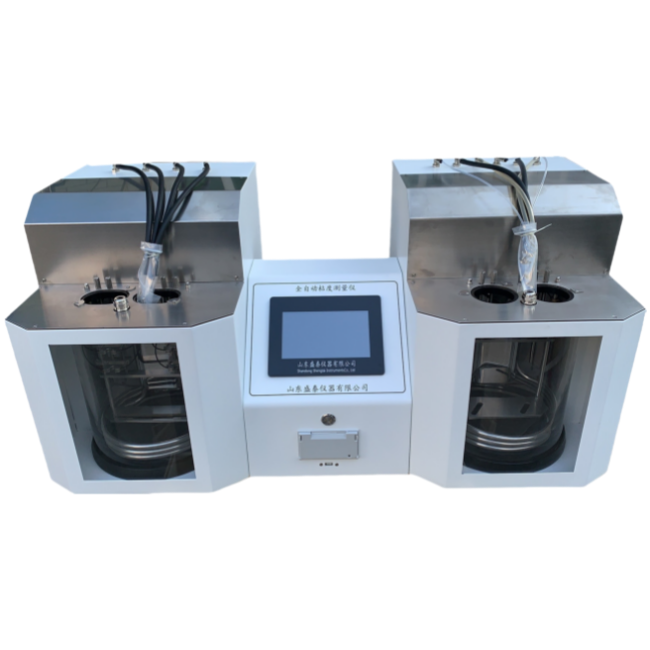

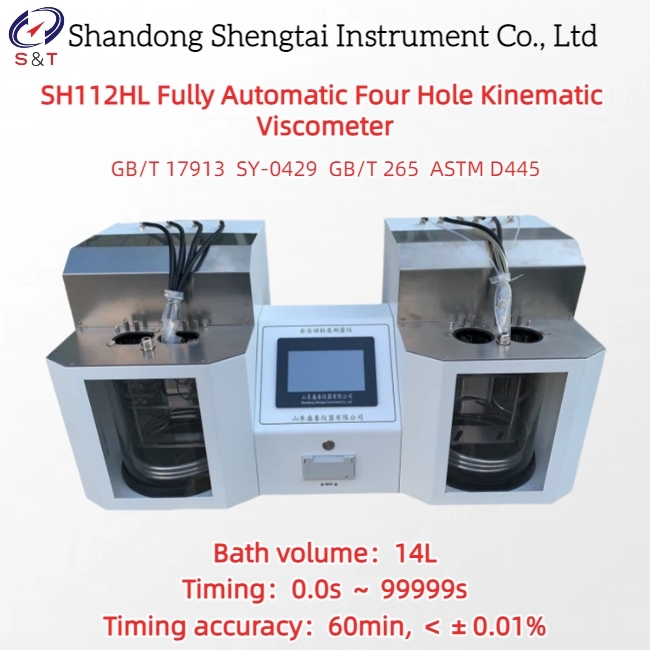

SH112HL Fully Automatic Four Hole Kinematic Viscometer
The SH112HL fully automatic four hole kinematic viscosity tester is designed and manufactured in accordance with the requirements specified in the Chinese standards GB/T11137 "Dynamic Viscosity Method for Dark Petroleum Products" and SY2409 "Dynamic Viscosity Method for Dark Petroleum Products". It is suitable for measuring dark petroleum products and heavy oil, and can also comply with GB/T265 and Ubbelohde viscosity measurement.
Kinematic viscosity: It is the time it takes for a certain volume of liquid to flow through a calibrated glass capillary viscometer under gravity at a constant temperature. The product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the liquid measured at that temperature
Technical performance parameters:
| Temp measurement range | RT ～ 100 ℃ |
| Display accuracy | 0.1 ℃ |
| Display mode | Human body sensing touch screen |
| Viscosity tube fixture | 304 stainless steel , high and low temp resistant graphite sliding bearing device |
| Bath volume | 14L |
| Number of experimental holes | 2 holes on each side |
| Temp setting | freely set the left and right bathtubs |
| Timing | 0.0s ～ 99999s |
| Timing accuracy | 60min, ＜ ± 0.01% |
| Detection method | Pt100 stainless steel probe with built-in temperature correction |
| Result output | USB drive output |
| Printer | equipped with a micro printer |
| Whole power | ＜2000W |
| Working power supply | AC220V ± 10% 50Hz |
| Instrument size | 850 * 380 * 550mm |
| Instrument weight | 38kg |
● Operation process: The entire process of sample temperature control, detection, calculation, viscosity tube cleaning, drying, and report printing is automated
● Number of experimental holes: 2 holes on each side, allowing for asynchronous measurement of two types of samples simultaneously. Double layer insulation; Auxiliary heating automatic
● Equipped with LED soft light, uniform fill light, easy to observe
● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage
● Printer: equipped with a micro printer
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
