Automatic Countercurrent Kinematic Viscometer RT ～ 100℃ Dark Petroleum GB/T 11137
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 가열 속도 | >5℃/분 | 조명 | LED 소프트 라이트 |
|---|---|---|---|
| 온도 범위 | 상온 ~ 100℃ | 테스트 샘플 | 2세트 |
| 타이밍 | 0 ~ 9999.9s | 전원공급장치 | AC220V±10% 50Hz |
| 날짜 저장 | 199세트 | 힘 | 2000W |
| 강조하다 | automatic kinematic viscometer RT 100℃,dark petroleum viscometer GB/T 11137,lube oil testing equipment with warranty |
||
제품 설명

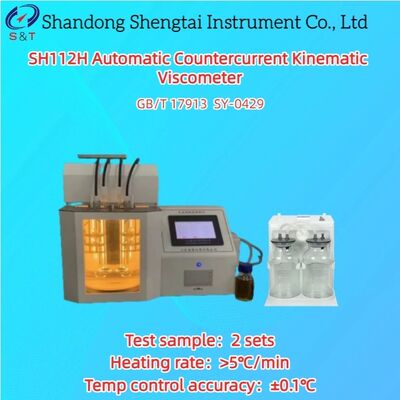

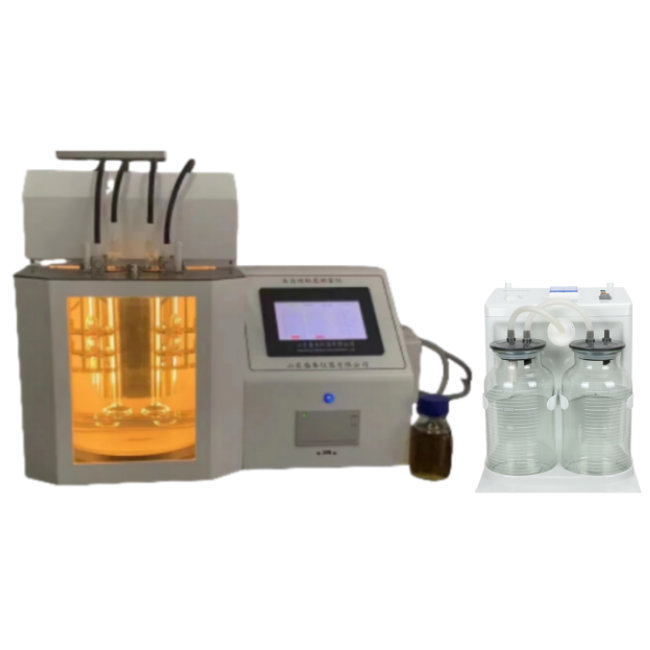

SH112H Automatic Countercurrent Kinematic Viscometer
The SH112H fully automatic counter current viscosity tester is designed and manufactured in accordance with the requirements specified in the Chinese standard GB/T11137 "Determination of kinematic viscosity of dark petroleum products (counter current method) and dynamic viscosity meter algorithm". It is suitable for measuring dark petroleum products and heavy oils.
Kinematic viscosity: At a constant temperature, the gravity flow under a certain volume model is determined, and the constant of the calibrated glass capillary viscometer flows over time. The product's kinematic temperature is used to measure the viscosity of the liquid
| Product model | SH112H |
| Product Name | Fully automatic countercurrent viscosity tester |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | Heavy oil, crude oil, dark petroleum and other petroleum products |
| Standards | GB/T11137 SY2409 |
| Simple technical features or parameters | Fully automatic result printing |
Main technical features
● Large color touch screen display.
● Adopt 32-bit microprocessor as the control core.
● The main parts and electronic components of the instrument are imported devices with good stability.
● The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying, automatic U disk output and other functions.
● Fast and stable temperature control, heating rate >5 ℃ / min.
● Equipped with LED soft light, uniform filling light, easy to observe.
● With viscometer parameter storage function.
● Microprocessors can expand memory to 16G
● Working viscometer: Cannon Finske capillary, meeting the requirements of GB/T11137 standard.
● Viscometer fixture: Made of all 304 stainless steel material and resistant to high and low temperature graphite sliding bearing device
● Storage method: The experimental results can be stored in 199 sets of historical data for easy query;
● Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage.
● Output Format: The output format of the result USB drive is CSV or Excel.
★Remote upgrade: With TCP network transmission function, software remote upgrade can be performed later (optional)
★Data management: can be connected to the LIMIS system (optional)
Main technical parameters
| Display | Large size color touch screen display |
| Heating rate | >5℃/min |
| Lighting | LED soft light |
| Working viscometer | Cannon Finske capillary |
| Viscometer fixture | 304 stainless steel |
| Test sample | 2 sets |
| Temp range | RT ～ 100℃ |
| Temp control accuracy | ±0.1℃ |
| Timing | 0 ～ 9999.9s |
| Timing Accuracy | ±0.1s |
| Kinematic Viscosity | 0.4 ～ 20000mm2/s |
| Date storage | 199sets |
| Power supply | AC220V±10% 50Hz |
| Power | 2000W |
| Instrument size | 450*380*550mm |
| Instrument weight | 32kg |
| Package size | 520*480*650mm |
| Package weight | 39kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Full-automatic viscosity tester | 1 | Unit | |
| 2 | Electric aspirator | 1 | Unit | |
| 3 | Special viscosity tube | 4 | Piece | Comply with GB/T11137 |
| 4 | Sample injector | 1 | Piece | |
| 5 | Printing paper | 2 | Roll | |
| 6 | Certificate | 1 | Copy | |
| 7 | Instructions | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
