x제품 상세 정보
| 발화점 측정 범위 | 0~+350℃ | 냉장 모드 | 압축기 냉동 |
|---|---|---|---|
| 임시 제어 정밀도 | ± 0.1 ℃ | 이그니팅 장치 | 전기 이그니팅 총 |
| 기기 크기 | 455*360*290mm | 전원공급장치 | AC220 ± 10%V 50Hz |
| 강조하다 | low temperature flash point meter,closed flash point tester ASTM D93,electric igniting gun lube oil |
||
제품 설명

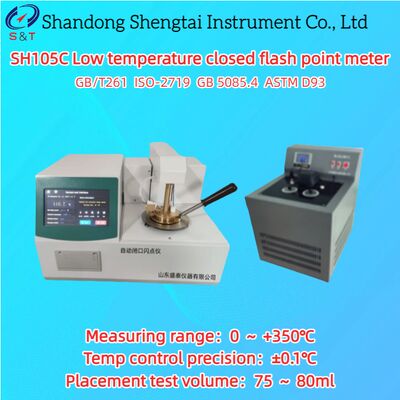

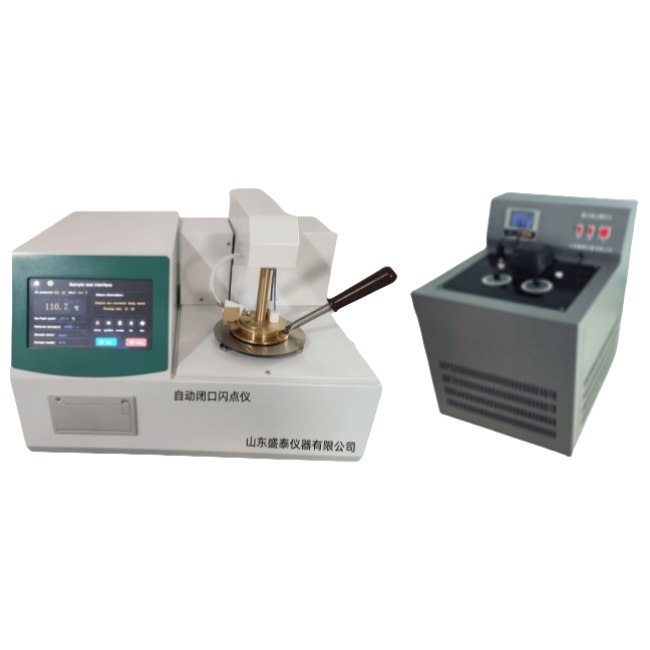

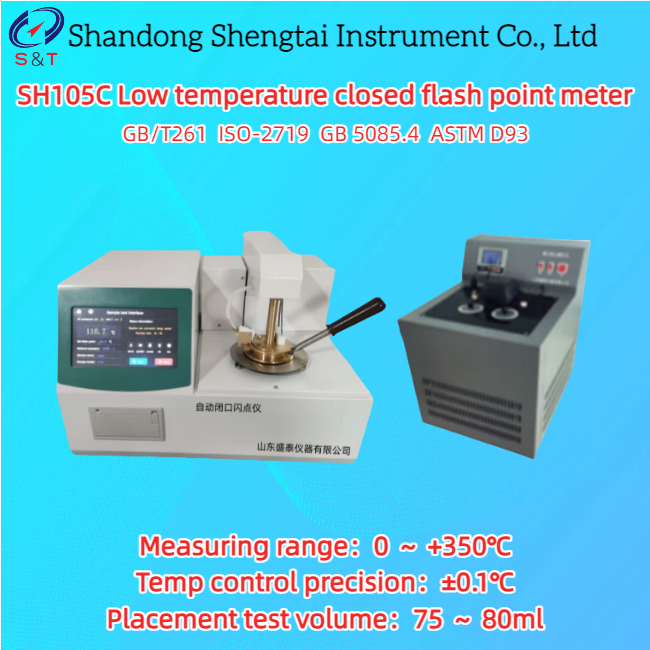

SH105C Low temperature closed flash point meter
SH105C low temperature closed flash point meter is designed and manufactured in accordance with the requirements of the standard GB/T261-2008 of the People's Republic of China. In line with ISO-2719,GB261 standard and GB 5085.4-2007 hazardous waste identification standard flammability identification.
Standard: GB/T261 ISO-2719 GB 5085.4 ASTM D93
Instrument according to the standard method of heating, automatic rise and fall, automatic ventilation, automatic ignition, automatic display, automatic locking flash point value, automatic printing results.After the test can be automatically cooled, to achieve the full automation of the work process.It has the advantages of accurate measurement, good repeatability, stable performance and simple operation.Widely used in electric power, petroleum, chemical, commodity inspection, scientific research and other departments.
Main technical indexes and parameters
| Power supply | AC220±10%V 50Hz |
| Flash point measuring range | 0 ～ +350℃ |
| Measurement precision |
The difference between the results of two experiments is less than 2 ℃ (for the same operator); The difference between the two experimental results is less than 3 ℃ (for different operators); |
| Refrigeration mode | compressor refrigeration |
| Temp control precision | ±0.1℃ |
| Igniting device | Electric igniting gun |
| Placement test volume | 75 ～ 80ml |
| Maximum power consumption | 300W |
| Ambient temp | 5ºC ～ 30ºC |
| Relative humidity | 30% ～ 80% |
| Instrument size | 455*360*290mm |
| Instrument weight | 13kg |
| Package size | 520*410*400mm |
| Package weight | 20kg wooden carten |
| Circulating bath size | 480*380*640mm |
| Circulating bath weight | 34.7kg |
| Circulating bath package size | 530*415*750mm |
| Circulating bath package weight | carton |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Automatic closed-mouth flash point meter | 1 | Unit | |
| 2 | Low temperature circulating bath | 1 | Set | |
| 3 | Oil cup | 1 | Piece | |
| 4 | AC power cord | 1 | Root | |
| 5 | Printing paper | 1 | Roll | |
| 6 | Instruction manual | 1 | Piece | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate warranty card | 1 | Copy |
