Engine Coolant PH Tester PH 0.00 - 14.00pH Temp Compensation 0 - 60℃ ASTM D1287
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| PH 디스플레이 범위 | 0.00 - 14.00pH | pH 결의안 | 0.01pH |
|---|---|---|---|
| 상대 pH 오류 | ±0.01pH | 입력 전류 | ≤ 2 × 10-12A |
| 디스플레이 방법 | 디지털 튜브 디스플레이 | 온도 보상 | 수동 |
| 강조하다 | engine coolant pH tester,pH tester with temp compensation,ASTM D1287 coolant tester |
||
제품 설명

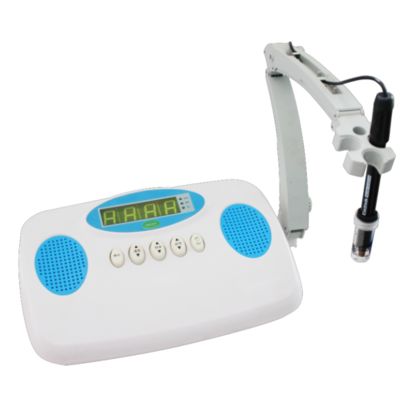

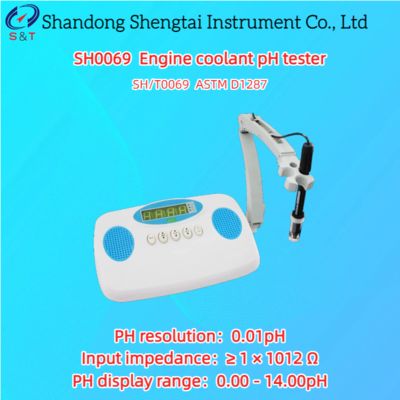

SH0069 Engine coolant pH tester
The SH0069 engine antifreeze coolant pH meter is a digital display pH meter that uses a blue backlight, dual row digital display LCD, and can simultaneously display pH value, temperature value, or potential (mV) value.
The engine antifreeze coolant pH tester is an instrument used to measure the pH value of the coolant. The main body is a precision potentiometer. When measuring, the glass electrode and calomel electrode are inserted into the measured solution. Due to the different acidity (hydrogen ion concentration) of the measured solution, different electromotive forces are generated. They are amplified by a DC amplifier, and finally the pH value of the measured solution is indicated by a reading indicator (voltmeter). The acidity meter can be used within the pH range of 0-14.
Compliant with standard: SH/T0069 ASTM D1287
Instrument characteristics and technical parameters:
| Display method | Digital tube display |
| Temperature compensation | Manual |
| PH display range | 0.00 - 14.00pH |
| PH resolution | 0.01pH |
| Relative pH error | ± 0.01pH |
| Input current | ≤ 2 × 10-12 A |
| Input impedance | ≥ 1 × 1012 Ω |
| MV measurement range | -1999.9 - 1999.9mV |
| MV resolution | ± 1mV |
| Temp resolution | 0.1 ℃ |
| Relative temp accuracy | ± 0.5 ℃ |
| Temp compensation range | 0-60℃ manual |
Note: The appearance pictures, dimension, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Main engine | 1 | Host | |
| 2 | Calibration buffer | 2 | Bag | |
| 3 | 231glass electrode | 1 | Piece | |
| 4 | 232calomel electrode | 1 | Piece | |
| 5 | Power cord | 1 | Piece | |
| 6 | Fuse tube | 1 | Piece | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate of conformity | 1 | Copy |
