Lubricating Oil Evaporation Loss Meter 100 - 260℃ PID adjustment Noah's Method ASTM D5800
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 임시 제어 방법 | PID 조정 | 측정 원리 | 노아의 방법 |
|---|---|---|---|
| 온도 측정 범위 | 100 ～ 260℃ | 임시 제어점 | 250 ℃ |
| 힘 | 호스트 1100W 진공 펌프 40W | 작업 전원 공급 장치 | AC220V ± 10% 50Hz |
| 강조하다 | Lubricating oil evaporation loss meter,Oil testing equipment with PID adjustment,ASTM D5800 lube oil tester |
||
제품 설명

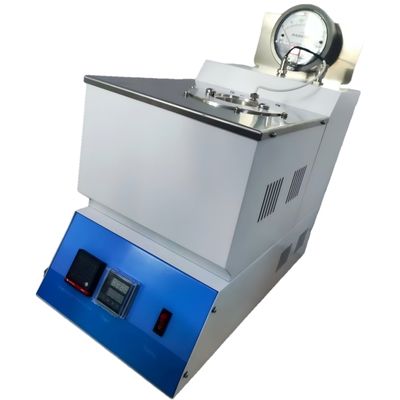

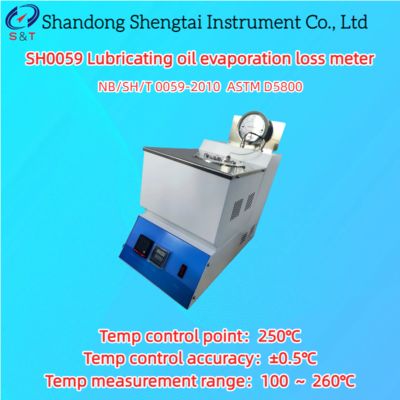

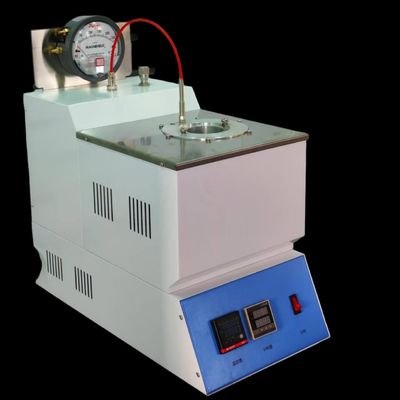

SH0059 Lubricating oil evaporation loss meter
The SH0059 lubricant evaporation loss tester is developed and produced by our company in accordance with the requirements of the Chinese petrochemical industry standard NB/SH/T 0059-2010 "Determination of lubricant evaporation loss (Noah's method)" ASTM D5800. Suitable for heating lubricating oil and lubricating oil base oil under certain conditions for 1 hour, and the evaporated oil is carried out by air. Measure the evaporation loss of the sample based on the difference in mass before and after heating. It mainly consists of three parts: heating system, control system, and constant airflow pressure control system. Applicable scope: suitable for measuring the evaporation loss of lubricating oil and lubricating oil base oil.
Technical parameter
● Alarm function: Automatic alarm prompt when the temperature control reaches a constant temperature
● Timing time: Display the time the evaporating crucible remains in the heated aluminum bath
● Vacuum pump: The start or stop of the vacuum pump is controlled by a timing key
| Standard | NB/SH/T 0059-2010 ASTM D5800 |
| Temp control method | PID adjustment |
| Measuring principle | Noah's Method |
| Temp measurement range | 100 ～ 260℃ |
| Temp control point | 250℃ |
| Temp control accuracy | ±0.5℃ |
| Pressure constant point and accuracy | 196Pa ± 2Pa |
| Scale indication | 100mm ± 1mm |
| Timing accuracy | 3600 ± 5s |
| Power | Host 1100W vacuum pump 40W |
| Working power supply | AC220V ± 10% 50Hz |
Note: The appearance pictures, dimension, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Package list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Host | |
| 2 | Evaporative crucible | 1 | Piece | |
| 3 | Reamer | 1 | Piece | |
| 4 | Temperature sensor | 1 | Piece | |
| 5 | Crucible holder | 1 | Piece | |
| 6 | Crucible wrench | 1 | Piece | |
| 7 | Wood alloy | 1 | Piece | |
| 8 | Vacuum pump | 1 | Host | |
| 9 | Power cord | 1 | Root | |
| 10 | Instruction Manual | 1 | Copy | |
| 11 | Certificate of Conformity Warranty Card | 1 | Copy |
