2 Holes Grease Drop Point Tester Oil Bath 120r/Min Measure RT-270℃ AST D566
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 작업 단위 | 이중 정공 | 실린더 | 600 밀리람베르트 비이커 |
|---|---|---|---|
| 모터 속도 혼합 | 120r/min | 차원 | 300×360×500mm |
| 무게 | 10kg | 전원공급장치 | AC220V 50Hz |
| 강조하다 | 2 holes grease drop tester,oil bath lubricant tester,AST D566 grease tester |
||
제품 설명

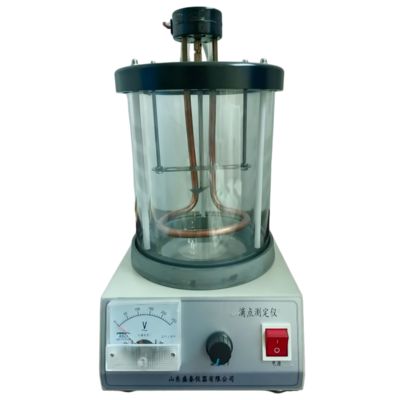

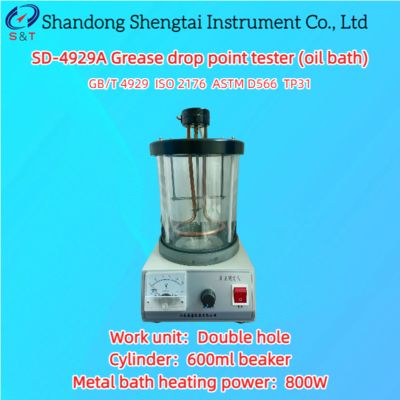

SD-4929A Grease drop point tester oil bath
SD4929A grease drop point tester is designed and manufactured according to the requirements of the People's Republic of China standard GB/T4929 "Grease drop point determination method". It is suitable for testing the drop point of grease according to the GB/T4929 standard.
Purpose: This instrument is suitable for measuring the drop point of grease according to GB/T4929, ISO2176, ASTMD566, TP31, "Grease drop point determination method".
Drip point refers to the lowest temperature at which lubricating grease melts and begins to drip, and is one of the important indicators of lubricating grease
Technical performance
| Power supply | AC220 V 50 Hz |
| Grease cup Inner diameter | ∮9.92mm |
| Cup height | 12mm |
| Drip hole | ∮28mm |
| Test tube Inner diameter | ∮11.1 ～ 12.7mm |
| Work unit | Double hole |
| Thermometer |
RT ～ 300ºC The measuring range of the instrument is to 270 ℃ |
| Scale value | 1ºC |
| Cylinder | 600ml beaker |
| Metal bath heating power | 800W |
| Mixing motor speed | 120r/min |
| Temp regulation mode | Triac stepless solid state voltage regulator |
| Dimension | 300×360×500mm |
| Weight | 10kg |
Remind: rovided by the customer: heating medium (silicone oil)
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing List
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Grease cup | 2 | Piece | |
| 3 | Test tube | 2 | Piece | |
| 4 | Rubber plug | 2 | Piece | |
| 5 | Guide ring | 2 | Piece | |
| 6 | Thermometer (-5 ～ 300℃, index value 1℃) | 2 | Piece | |
| 7 | Metal bar | 1 | Piece | |
| 8 | Instructions | 1 | Copy | |
| 9 | Certificate of conformity | 1 | Copy |
