Dry Powder Fire Extinguishing Agent Penetrometer 0 ～ 700 Cone Degree GB 4066
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 측정 범위 | 0 ~ 700 콘도 | 타임에러 | ±0.1초 미만 |
|---|---|---|---|
| 해결 | 0.01mm | 연결 정확도 | ± 1 코닝 정도 |
| 기기 크기 | 325*220*510mm | 기기 무게 | 7.5kg |
| 강조하다 | Dry Powder Fire Extinguishing Agent Penetrometer,Cone Penetration Apparatus 0-700 Degree,GB 4066 Fire Extinguisher Tester |
||
제품 설명

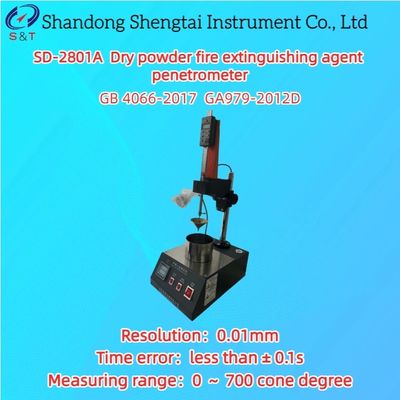

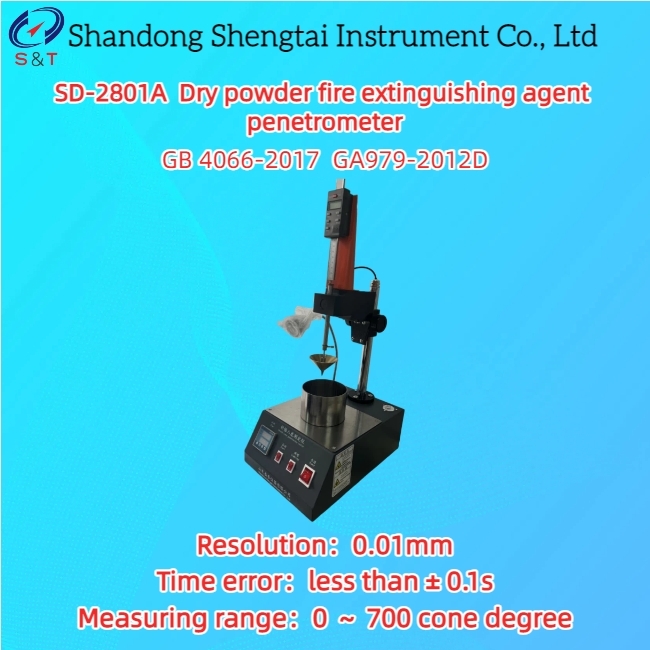

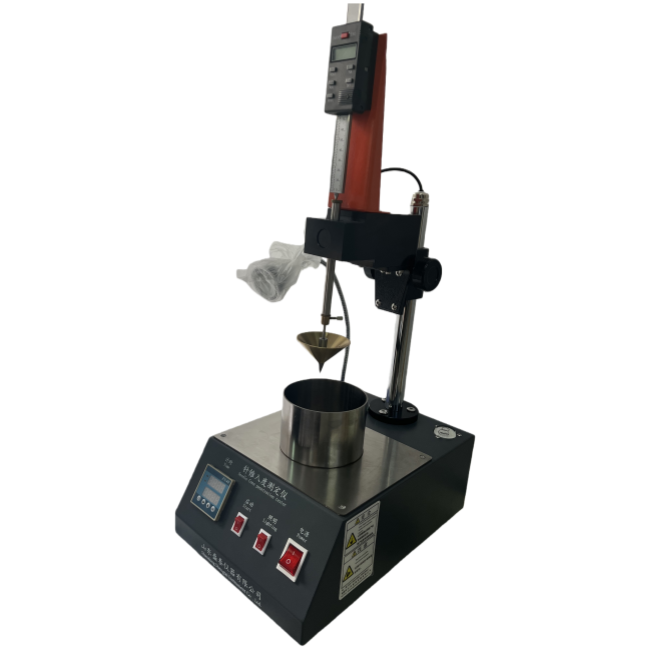

SD-2801A Dry powder fire extinguishing agent penetrometer
SD-2801A dry powder fire extinguishing agent penetration tester is designed and manufactured according to the requirements of "dry powder fire extinguishing agent" GB 4066-2017 and GA979-2012D dry powder fire extinguishing agent, but also suitable for road oil asphalt, modified asphalt and liquid oil asphalt or emulsified asphalt residual injection degree test.
Main technical features
● The use of digital display to display the taper value, intuitive and eye-grabbing.
● Digital display of cone entry time control device.
● With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.
● The experimental time can be set arbitrarily
● The needle rod assembly can be adjusted up and down within 0-70mm by adjusting the knob
● Lifting bracket: coarse adjustment, fine adjustment of double lifting adjustment mechanism, easy to tip alignment sample plane;
● Others: equipped with cold light source, easy to use and operation.
Main technical parameters and indicators
| Measuring range | 0 ～ 700 cone degree |
| Time error | less than ± 0.1s |
| Resolution | 0.01mm |
| Coning accuracy | ±1 coning degree |
| Standard cone | 2.5±0.05g(including standard bar 50g±0.05g) |
| Instrument size | 325*220*510mm |
| Instrument weight | 7.5kg |
| Package size | 460*350*550mm |
| Package weight | 12.3kg |
Note: The appearance pictures, dimensions, volume and scale of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Unit | 1 | |
| 2 | Standard needle | Piece | 1 | |
| 3 | Connecting rod | Piece | 1 | |
| 4 | Sample container | Piece | 1 | |
| 5 | Fuse tube 5A(∮5×20) | Piece | 1 | |
| 6 | Power cord (250V 6A) | Piece | 1 | |
| 7 | Instruction manual | Copy | 1 | |
| 8 | Certificate warranty card | Copy | 1 |
