Washing Oil Engler Viscometer RT～100ºC Coal Tar Control Accuracy ±0.1ºC ASTM D1655
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 표준 수 값 | 51초±1초 | 온도 범위 | RT ~ 100°C 또는 10 ~ 100°C(냉장 옵션) |
|---|---|---|---|
| 탬프 콘트롤 정확도 | ± 0.1ºC | 부피 플라스크 | 200±0.2ml |
| 내솥 | 스테인레스 스틸 재료 | 전원공급장치 | AC220V ± 10% 50Hz |
| 강조하다 | Washing oil Engler viscometer,Coal tar viscosity tester,ASTM D1655 lube oil analyzer |
||
제품 설명

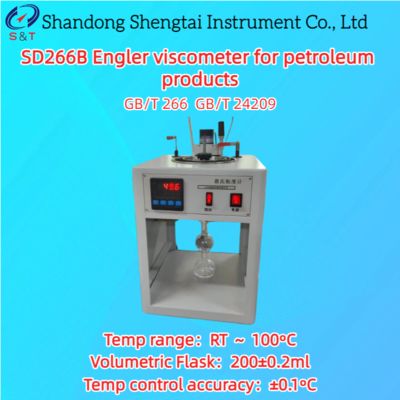

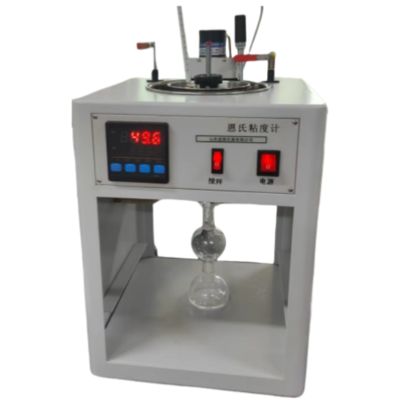

SD266B Engler viscometer for petroleum products all-in-one
SD266B petroleum product En's viscosity meter is designed and manufactured in accordance with the requirements of the Chinese standards GB/T 266 "Determination of En's viscosity of petroleum products" and GB/T24209.
Engler viscosity is used to determine the ratio of the time (in seconds) it takes for a liquid to flow out of an Engler viscometer at a certain temperature and volume to the time (in seconds) it takes for distilled water to flow out at 20℃, which is the Engler viscosity of the liquid, measured in Engler degrees.
| Compliant with standards | GB/T 266 GB/T 24209 |
| Test sample | Petroleum and chemical products |
| detection result | The ratio of the time (s) that the liquid flows out of the Engler viscometer at a certain temperature and volume to the time (s) that the distilled water flows out at 20℃ is the Engler viscosity of the liquid, in Enguera degrees. |
Main technical features
● The instrument is a table top, and its smoothness meets the requirements of the test.
● The temperature controller adopts digital temperature controller with P, I and D bit adjustment function, convenient parameter setting and high temperature control precision.
Main technical parameters and indicators
| Power supply | AC220V±10% 50Hz |
| Standard water value | 51s±1s |
| Temperature range | RT ～ 100ºC or 10 ～ 100℃(Optional refrigeration) |
| Temp control accuracy | ±0.1ºC |
| Engler viscosity thermometer | Complies with GB514 and GB/T 24209-2009 for oil viscosity determination |
| Inner pot | stainless steel material |
| Volumetric Flask | 200±0.2ml |
| Time measurement | maximum 999.9s |
| Instrument size | 320*260*430mm |
| Instrument weight | 12kg |
Note: The appearance pictures, dimensions, volume and scale of the device are for reference only. If there are any updates to the device, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Unit | 1 | |
| 2 | Engler thermometer | Piece | 2 | |
| 3 | Thermometer clamp | Set | 1 | |
| 4 | Wooden stopper | Piece | 1 | |
| 5 | PT100 sensor | Piece | 1 | |
| 6 | Receiving bottle | Piece | 1 | |
| 7 | Instructions | Copy | 1 | |
| 8 | Certificate | Copy | 1 |
