x제품 상세 정보
| 측정 범위 | 상온±10℃ ~ 100℃ | 제어 범위 | ± 0.1 ℃ |
|---|---|---|---|
| 난방력 | 1800W | 차원 | 320*380*530mm |
| 규모 | 15kg | 전압 | AC220V ± 10% 50Hz |
| 강조하다 | Double cylinder viscosity tester LCD display,Petroleum kinematic viscosity tester ASTM D445,Lube oil testing equipment with temperature control |
||
제품 설명

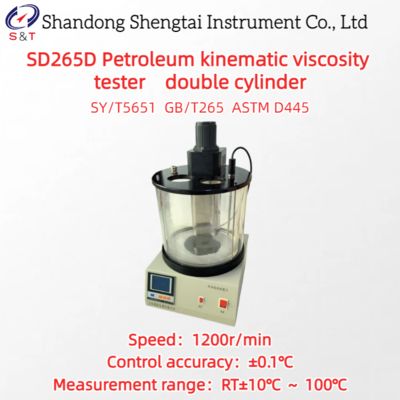

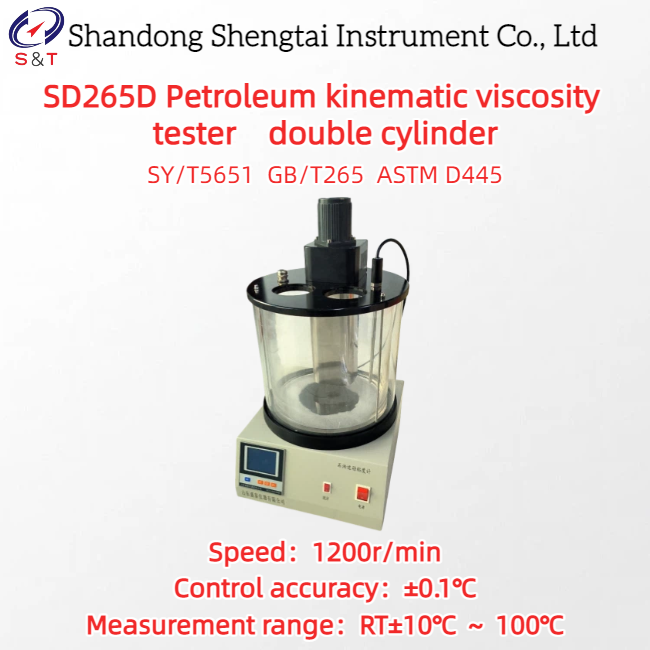

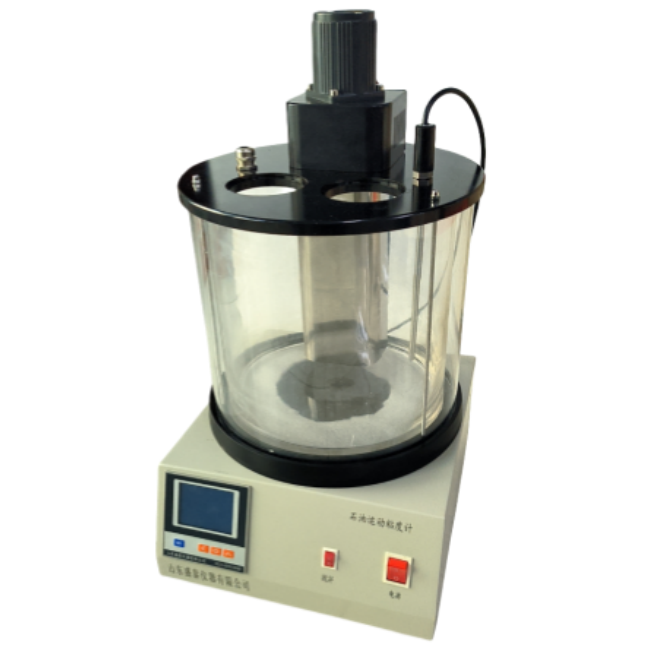

SD265D Petroleum kinematic viscosity tester double cylinder
The SD265D petroleum kinematic viscosity analyzer is suitable for detecting the kinematic viscosity of liquid petroleum products (referring to Newtonian liquids) under a constant temperature condition, and complies with the industry standards SY/T5561 "Technical Conditions for Petroleum Product Kinematic Viscosity Testers" and GB/T265 "Determination of Petroleum Product Kinematic Viscosity and Algorithm for Dynamic Viscometers" of the People's Republic of China.
Standard: SY/T5651 GB/T265 ASTM D445
Main technical features
● Adopt hard glass cylinder and special plexiglass insulation coat cylinder (called double cylinder), with good insulation performance and clear observation of sample.
● Desktop and all-in-one machine design is adopted, the instrument has good integrity and is convenient to use. 2 groups of experiments can be done simultaneously.
● Using electric mixing device, bath temperature uniform
● Small blue liquid crystal display, temperature control stability is good
Main technical parameters and indicators
| Product name | Oil Kinematic Viscosity Tester |
| Standard | GB/T265 |
| Voltage | AC220V±10% 50Hz |
| Heating power | 1800W |
| Mixing motor power | 6W |
| Mixing motor speed | 1200r/min |
| Temp range | RT±10℃ ～ 100℃ |
| Temp control accuracy | ±0.1℃ |
| Constant temp bath | inside and outside two layers of cylinder (double cylinder) |
| Work Temp | -10℃ ～ +35℃ |
| Relative humidity | <85% |
| Temp sensor | high precision thermistor. |
| Dimension | 320*380*530 mm |
| Weight | 15Kg |
This product is generally used to measure the viscosity of 100 degrees
Note: The appearance photos, dimension, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Unit | |
| 2 | Water bath crock | 1 | Piece | |
| 3 | Plexiglass jar | 1 | Piece | |
| 4 | Capillary tube holder | 2 | Piece | |
| 5 | Power cord | 1 | Piece | |
| 6 | Thermometer | 1 | Piece | |
| 7 | Fuse tube | 1 | Piece | 10A |
| 8 | Capillary viscometer | 4 | Piece | Can choose |
| 9 | Operating instruction | 1 | Copy | |
| 10 | Wash ears ball | 1 | Piece | |
| 11 | Packing list | 1 | Copy | |
| 12 | Certificate of approval | 1 | Copy |
