Reduced Pressure Distillation Tester PT100 Sensor Extraction 14.4L/h ASTM D86
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 노 전력을 가열시키는 증류 플라스크 | 0-1000W 지속적으로 조정 가능 | 측정 실린더의 공기 욕조의 임시 제어점 | 객실 온도 ℃ 100 ～ 연속 조절 가능 |
|---|---|---|---|
| 감지기 | Pt100 백금 저항기 | 탬프 콘트롤 정확도 | 온도 ± 1를 설정하십시오 |
| 작업 전원 공급 장치 | AC220V 50Hz | 난방력 | 연속 조절 |
| 강조하다 | PT100 sensor lube oil tester,ASTM D86 distillation tester,14.4L/h reduced pressure extractor |
||
제품 설명

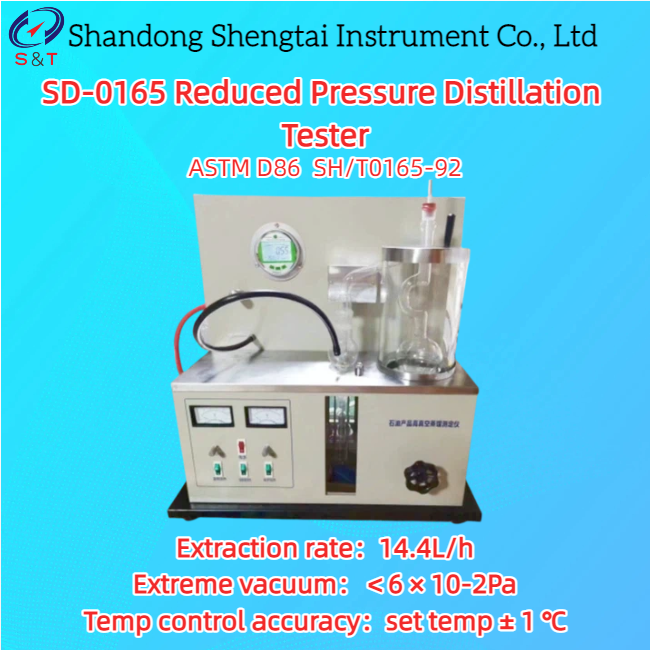

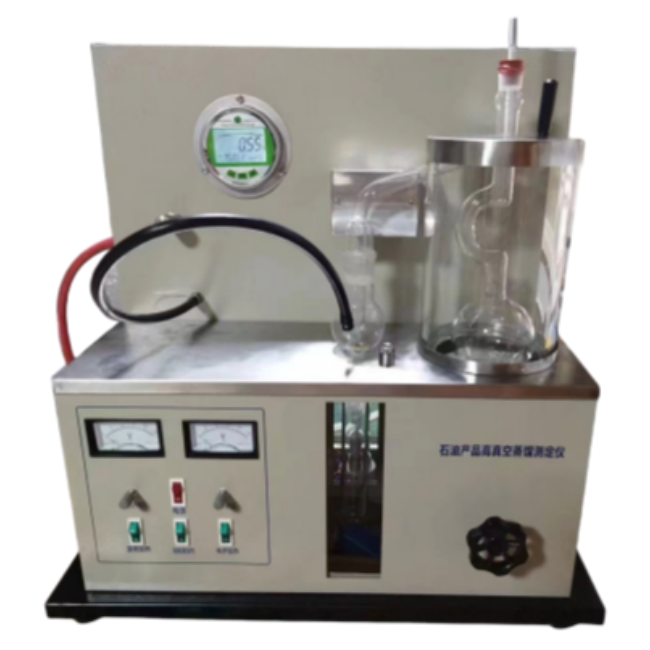

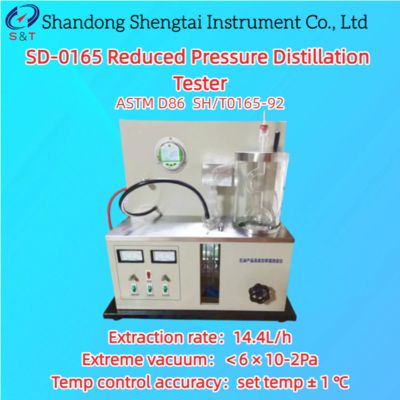

SD-0165 Reduced Pressure Distillation Tester
The SD-0165 Reduced Pressure Distillation Tester is designed and manufactured according to the requirements of the industry standard SH/T0165-92 "High Boiling Point Range Petroleum Product High Vacuum Distillation Determination Method" of the People's Republic of China. It is suitable for determining the distillation range of high boiling point range petroleum products such as wax oil and lubricating oil.
Reduced pressure distillation range: The temperature range in which petroleum products are evaporated under specified conditions, represented by their initial boiling point and final boiling point (converted to atmospheric pressure).
Standard: ASTM D86 SH/T0165-92
Technical parameters and characteristics
| Heating power | Distillation flask heater | 1000W | |||
| Receiver cylinder heater | 350W | ||||
| Distillation flask heating furnace power | 0-1000W continuously adjustable | ||||
| Temp control point for the air bath of the measuring cylinder | Room temp～100 ℃ continuously adjustable | ||||
| Sensor | Pt100 platinum resistor | ||||
| Air bath temperature control method | digital temp control meter for automatic temp control | ||||
| Temp control accuracy | set temp ± 1 ℃ | ||||
| Extraction rate | 14.4L/h | ||||
| Extreme vacuum | ＜6 × 10-2Pa | ||||
| Heating power | continuously adjustable | ||||
| Working power supply | AC220V 50Hz | ||||
|
Working conditions |
Environmental temp | 5～35℃ | |||
| Relative humidity | <85% | ||||
| Dimensions | 700 × 520 × 520mm (L × W × H) | ||||
| Net weight of the instrument | 59kg | ||||
● Structural design: A desktop structure consisting of a distillation testing section and a vacuum and pressure reducing section,
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Packing list
| NO. | Name | Specifications | Quantity | Note |
| 1 | Host | 1 unit | ||
| 2 | Thermometer (rod type) | 0～360℃ | 1 piece | |
| 3 | Distillation flask | 1 piece | ||
| 4 | Receiver measuring cylinder | 1 piece | ||
| 5 | Vacuum pump | 1 piece | ||
| 6 | Seal pad | 1 piece | ||
| 7 | Fuse tube | Φ5×20 10A | 2 pieces | |
| 8 | Oil-resistant rubber hose | Inner diameter Φ8 | 0.5m | |
| 9 | Instructions | 1 copy | ||
| 10 | Certificate of conformity Warranty Card | 1 copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
