Pesticide Specific Optical Rotation Tester -45° ～ +45° Water Bath 10 ～ 40℃ NYT 1860.18
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 측정 범위 | -45 ° ° +45 ° | 최소 판독 값 | 0.001' |
|---|---|---|---|
| 항온 수조 | 10 ～ 40℃ | 정확성 | ± (0.01°+측정값 × 0.05%) |
| 시험관 장착 | 항온 회전관 | 포장 크기 | 755*330*370mm |
| 강조하다 | pesticide optical rotation tester with water bath,optical rotation tester for food testing,NYT 1860.18 pesticide rotation tester |
||
제품 설명

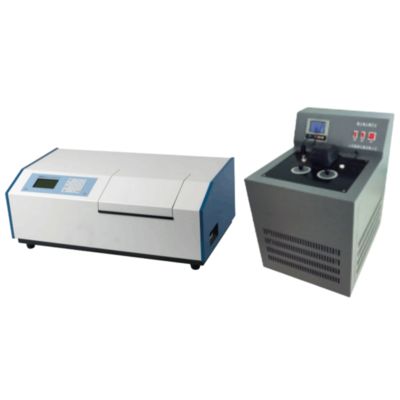

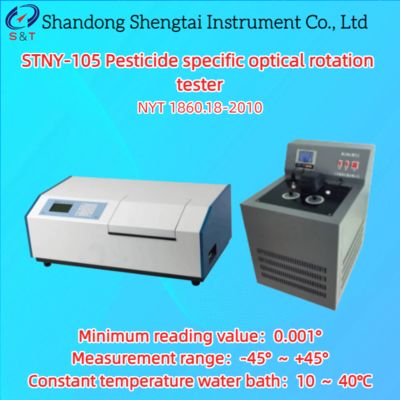

STNY-105 Pesticide specific optical rotation tester
The STNY-105 pesticide specific optical rotation meter is designed and manufactured in accordance with the NYT 1860.18-2010 Guidelines for Testing the Physical and Chemical Properties of Pesticides Part 18: Specific Rotation Method. It is a specialized instrument for measuring the specific rotation of pesticides.
Specific optical rotation: The optical rotation measured by a specific wavelength of polarized light passing through a 1dm tube and a 1g/L liquid of light substance at a certain temperature T is called the specific optical rotation at that wavelength and temperature.
Instrument features:
Adopting photoelectric detection and automatic servo mechanism control, digital display reading, capable of measuring optical rotation and specific rotation, in compliance with NY/T1860.18 standard.
Main technical parameters:
| Measurement range | -45° ～ +45° |
| Minimum reading value | 0.001° |
| Constant temp water bath | 10 ～ 40℃ |
| Accuracy | ± (0.01°+measured value × 0.05%) |
| Repeatability (maximum deviation) | ≤ 0.002° |
| Equipped with test tubes | constant temperature rotary tubes |
| External dimensions | 600 × 320 × 220mm, mass: 30kg |
| Packaging size | 755 * 330 * 370mm |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Unit | |
| 3 | Thermostatic test tube 100mm | 1 | Piece | |
| 4 | Test tube protective film | 4 | Piece | Spare |
| 5 | Test tube rubber gasket | 4 | Piece | Spare |
| 6 | Power cord | 1 | Root | |
| 7 | Fuses(1.5A , 3A) | 4 | Piece | 2 each , spare |
| 8 | Screwdriver | 1 | Piece | |
| 9 | Instruction Manual | 1 | Copy | |
| 10 | Product Qualification Certificate | 1 | Copy |
