Dust Natural Accumulation Density Meter Volume 100cm3 Taper 60°± 0.5° GB/T16913.3
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 깔때기 테이퍼 | 60°±0.5° | 유출 직경 | Φ12.7mm |
|---|---|---|---|
| 실린더 체적 측정 | 100cm3 | 치수 | Φ150×300mm |
| 순 중량 | 2.76kg | 포장 크기 | 410*320*220mm |
| 강조하다 | dust density meter 100cm3 volume,dust accumulation meter 60° taper,GB/T16913.3 dust meter food testing |
||
제품 설명

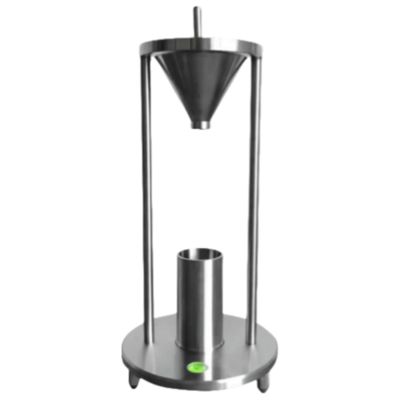

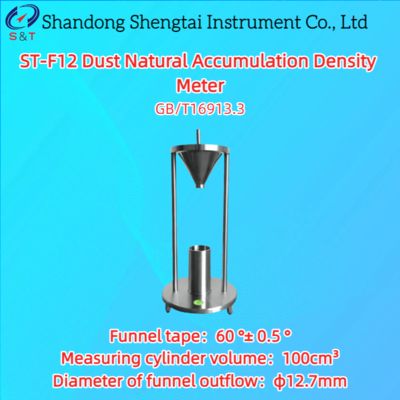

ST-F12 Dust Natural Accumulation Density Meter
The ST-F12 dust natural bulk density meter is designed and manufactured according to the technical requirements and relevant regulations of GB/T16913.3 "Test Methods for Dust Physical Properties - Part 3: Determination of Bulk Density - Natural Bulk Method", mainly suitable for the determination of dust bulk density.
Working principle: When dust falls freely from the funnel at a certain height and fills the measuring cylinder, the mass of dust per unit volume in the cylinder in a loose state is measured, which is the dust packing density.
Main technical parameters
| Purpose | Suitable for measuring the density of dust accumulation |
| Standard | GB/T16913.3 |
| Funnel taper | 60°± 0.5° |
| Outflow diameter | φ 12.7mm |
| Measuring cylinder volume | 100cm3 |
| Dimensions | Φ 150 × 300mm |
| Net weight | 2.76kg |
| Packaging size | 410 * 320 * 220mm |
| Packaging weight | 3.52kg |
Customer provided:
1. Drying oven
2.80 Target Screening
3. Sample measuring cylinder
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Packing list
| Number | Name | Specification | Quantity | Remarks |
| 1 | Natural bulk density meter | Host | 1 unit | |
| 2 | Measuring cylinder | 1 piece | ||
| 3 | Dust scraper | 1 piece | ||
| 4 | Certificate Warranty Card | 1 copy | ||
| 5 | Instructions | 1 copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
