Plant Oil Smoke Point Meter Visual Measurement error ≤ 2℃ RT ～ 300℃ GB/T20795
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이중 테스트 오류 | 2℃ 이하 | 온도 측정 범위 | 상온 ~ 300℃ |
|---|---|---|---|
| 전체 차원 | 450*600*900mm | 전원 공급 장치 | 220V 50Hz |
| 결과 출력 모드 | 시각 온도 게이지 및 디지털 디스플레이 | 결과 디스플레이 방식 | 시각적 온도 및 디지털 온도 잠금 |
| 강조하다 | plant oil smoke point meter,smoke point meter visual measurement,food testing instrument with warranty |
||
제품 설명

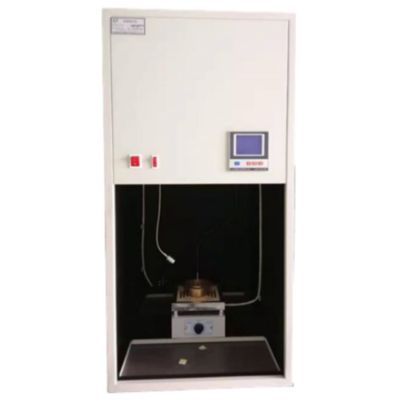

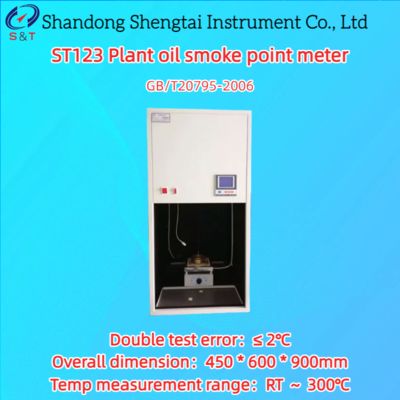

ST123 Plant oil smoke point meter
ST123 Plant Oil smoke point meter is a special instrument for determining vegetable oil smoke point developed according to Article 5 "Second Method Visual Determination Method" of the national standard GB/T20795-2006 "Vegetable Oil Smoke Point Determination"and AOCS Cc 9a-48 , which is suitable for quality supervision, import and export inspection, oil processing, oil storage and transportation, food processing, scientific research, agricultural breeding, schools and other departments that need to determine the smoke point of vegetable oil and fat.
When a small amount of continuous blue smoke (thermal decomposition in grease) is observed, the temperature indicated by the thermometer is read, and the heat/lock button is pressed, and the upper display number of the meter head is the smoke point. The structure of the instrument is simple and intuitive, and the price is inexpensive.
Product parameters
| Double test error | ≤ 2℃ |
| Result output mode | visual temperature gauge and digital display |
| Temp measurement range | RT ～ 300℃ |
| Working environment |
Temp -10 ～ 40℃ Relative humidity ≤ 95%RH |
| Result display mode | visual temperature and digital temperature locking |
| Power supply | 220V 50Hz |
| Package size | 665 * 530 * 970mm |
| Package weight | 22kg |
| Overall dimension | 450 * 600 * 900mm |
| Weight | 10kg |
● Temperature control device built-in curve calibration.
● The overall chassis is upgraded and improved, and the spray production is adopted to improve the safety performance of the overall test
● The output display mode adopts small screen LCD display.
● The package of the complete machine has been inspected and can be verified by the Metrology Institute.
Note: The appearance picture and size, volume and weight of the instrument are for reference only. If the instrument is updated, there may be a little change without further notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | HOST | 1 | Unit | |
| 2 | Oil cup | 2 | Piece | |
| 3 | Power cord | 1 | Strip | |
| 4 | Fuse tube | 1 | Piece | Inside the seat 10A |
| 5 | Instruction manual certificate | 1 | Copy | |
| 65 | Warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The instrument materials provided shall be brand new, in line with national quality standards and goods with manufacturer's certificate of conformity;
----The materials and main components provided comply with the technical requirements specified in the technical data;
----The warranty period of the whole equipment is one year (excluding normal wear of wearing parts).
----In case of any instrument quality problem within the warranty period, we shall be responsible for free maintenance. If the equipment fails due to the user's responsibility, we shall be responsible for the repair and reasonable charge.
----The equipment lifetime preferential supply spare parts, complete machine lifetime maintenance repair.
----After expiration of the warranty period, if the user needs maintenance and technical services, we will only charge the cost.
