NMR Oil Content Tester Sample Oil Content 0.1％～100％ ARM9 Processors ST119C

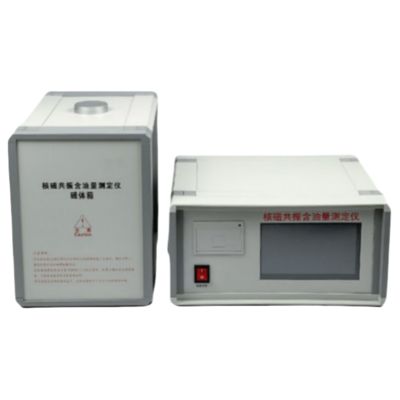

ST119C NMR oil content tester

Based on the embedded development platform and digital signal processing technology, the instrument adopts nuclear magnetic resonances technology to rapidly determine the oil content of oilseeds and their cake and meals (such as soybean, rapeseed, sesames, corn, cotton seed, sunflower seed, peanuts, wheat, tung seed tea seed, etc.) of oilseeds. It is a new product in the field of nondestructive testing. The instrument has the characteristics of simple and convenient operation, high testing precision and fast testing speed. Compared with similar domestic instruments, the instrument adopts the frequency self locking technology, which requires no manual adjustment, reduces the artificial error and greatly improves the measurement accuracy. (Remarks: the tea seeds shall be dried for 10 g for about 15 minutes, and the results shall be determined within 120 seconds after being placed in the apparatus for oil content determination)

Hardware Features

● Samsung high-performance ARM9 processor with core frequency of 400MHz and advanced WinCE operating system

● The equipment is equipped with 7-inch true color LCD screen, simple and fashionable operation interface, mouse+keyboard, consistent with computer operation mode

● The equipment adopts the latest mainstream device, which meets the industrial standard and has low failure rate

Functional features

● High precision and stability: the stability is ± 0.1%. Intelligent classification detection method is adopted for different species. Each measurement time is only 0.5 minutes

● Less manual intervention: the software automatically completes the frequency adjustment, the personalized step by step prompt guides the operation process, and the innovative self frequency locking technology is included. No manual intervention is required, the operation is simple, and human error will not be introduced

● Strong immunity: it can work in the environment with strong electromagnetic interference

● Strong customization: the user can configure the mode, and the print content is more flexible and rich, which can not only be saved directly on the machine, but also saved through the USB flash disk, and opened and processed in the computer

● Convenient maintenance: the upgrade software is downloaded from the network to the USB flash disk, and the upgrade is automatically completed by inserting the device USB port

Instrument performance indicators

Note: The appearance picture and size, volume and weight of the instrument are for reference only. If the instrument is updated, it may be slightly changed without further notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The instrument materials provided shall be brand new, in line with national quality standards and goods with manufacturer's certificate of conformity;

----The materials and main components provided comply with the technical requirements specified in the technical data;

----The warranty period of the whole equipment is one year (excluding normal wear of wearing parts).

----In case of any instrument quality problem within the warranty period, we shall be responsible for free maintenance. If the equipment fails due to the user's responsibility, we shall be responsible for the repair and reasonable charge.

----The equipment lifetime preferential supply spare parts, complete machine lifetime maintenance repair.

----After expiration of the warranty period, if the user needs maintenance and technical services, we will only charge the cost.
