x제품 상세 정보
| 측정 객체 | 조잡한 섬유 함량의 측정이 필요한 다양한 사료, 곡물, 시리얼, 식품 및 기타 농업 및 부업 제품 | 테스트 샘플의 수 | 6 |
|---|---|---|---|
| 반복 오차 | 조잡한 섬유 함량 <10%; ≤0.4 원유 섬유 함량> 10%; ≤4% | 측정 시간 | 약 90 분 |
| 기기 크기 | 540 × 450 × 670mm | 전원 공급 장치 | AC220V 50Hz |
| 강조하다 | coarse fiber tester for feed grains,acid-base digestion fiber tester,ISO 6865 compliant fiber tester |
||
제품 설명

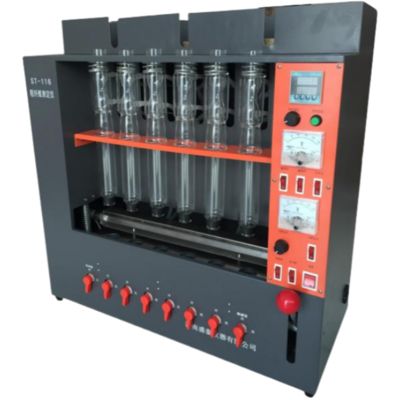

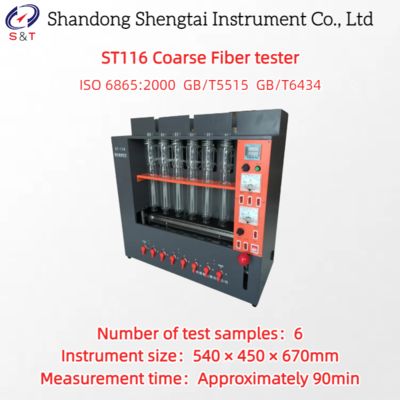

ST116 Coarse Fiber tester
The ST116 coarse fiber analyzer is an instrument that uses the commonly used acid-base digestion method to digest samples and measure their weight to obtain the coarse fiber content of the sample.
Using accurately concentrated acids and bases, the sample is boiled under specific conditions, and then soluble substances are removed with ethanol. After high-temperature calcination, the amount of minerals is deducted, and the content is called crude fiber. It is not an exact chemical entity, but a rough composition measured under recognized mandatory conditions, mainly composed of cellulose, with small amounts of hemicellulose and lignin.
Suitable for determining the crude fiber content of various grains, feed, etc., the test results comply with the provisions of national standards GB/T5515 and GB/T6434.
Hot Sale Crude Fiber Tester /Coarse Fiber Tester
Coarse Fiber Analyzer or Raw Fiber Tester
Raw Fiber Analyzer Lab Coarse Fiber Tester
Coarse Fiber Analyzer or Raw Fiber Analyzer
Technical parameter:
| Measurement objects | various feed, grain, cereal, food and other agricultural and sideline products that require measurement of crude fiber content |
| Number of test samples | 6 |
| Repetitive error |
Crude fiber content<10%; ≤0.4 Crude fiber content>10%; ≤4% |
| Measurement time |
Approximately 90min (including 30 minutes of acid, 30 minutes of alkali, and approximately 30 minutes of filtration and washing) |
| Power supply | AC220V 50HZ |
| Power | 2.3KVA |
| Instrument size | 540 × 450 × 670mm |
| Instrument weight | 28kg |
| Packaging size | 715*510*765mm |
| Packaging weight | 40kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Unit | |
| 2 | Fiber crucible | 6 | Piece | |
| 3 | Glass Flask | 3 | Piece | |
| 4 | Power cord | 1 | Strip | |
| 5 | Fuse tube | 1 | Piece | 10A in the safety seat |
| 6 | Instructions | 1 | Copy | |
| 7 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
