Grain Oil Inspection Magnetic Metal Tester Blade speed 50r/min 1kg sample GB/T 5509
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 최대 시료 부피 | 1kg | 견본 회수율 | 적어도 95% |
|---|---|---|---|
| 블레이드 속도 | 50R/분 | 운동 속도 | 50R/분 |
| 작동 전압 | AC220V | 전체 치수 | 255*275*385 mm |
| 강조하다 | grain oil metal tester blade,magnetic metal tester 50r/min,food testing instrument 1kg sample |
||
제품 설명

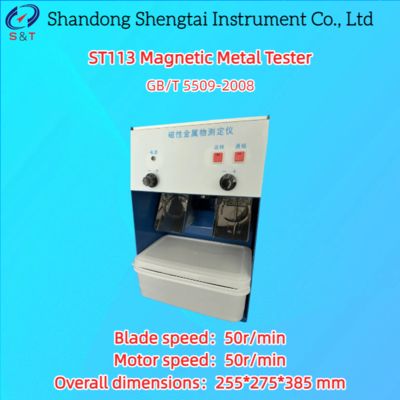

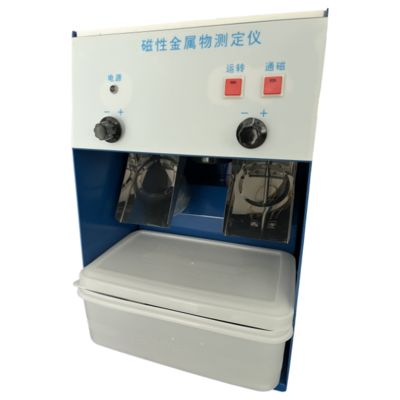

ST113 Magnetic Metal Tester
ST113 Flour Magnetic Metal Tester is a special testing instrument developed and produced according to the national standard of GB/T 5509-2008 "Grain and oil inspection powder magnetic metal matter determination method". It is suitable for quality supervision, flour (and all kinds of grain flour) processing, grain storage and transportation, purchase and sales, scientific research and other departments that need to determine the content of powdered magnetic metals.
Technical specifications:
| Maximum specimen volume | 1kg |
| Specimen recovery rate | not less than 95% |
| Blade speed | 50r/min |
| Motor speed | 50r/min |
| Motor power | 50W |
| Working voltage | AC220V |
| Total weight | 12kg |
| Overall dimensions | 255*275*385 mm |
Technical specifications of magnetic separation plate
| Magnetic induction strength | not less than 120mT |
| Strong magnetic area size | 130mm*130mm |
| Separation plate size | 210*210*6mm |
Note: the appearance picture and size, volume and weight of the instrument are for reference only. If the instrument is updated, there may be a few changes, and no further notice will be given.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Unit | |
| 2 | Magnetic separator plate | 1 | Piece | |
| 3 | Power cord | 1 | Strip | |
| 4 | Fuse tube | 1 | Piece | 10 Ain the safe seat |
| 5 | Instruction manual | 1 | Copy | |
| 6 | Certificate warranty card | 1 | Copy |
