Automatic LCD Lovibond Colorimeter RGB Method Stability ≤ 0.2/10min ST110B
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 표시 오류 | ≤ 5% | 표시 반복성 | ≤ ± 0.2 |
|---|---|---|---|
| 안정 | ≤ 0.2/10 분 | 전체 차원 | 360 * 260 * 140mm |
| 인쇄기 | 마이크로 프린터로 내장되었습니다 | 출력 모드 | 큰 화면 LCD 디스플레이 |
| 강조하다 | Automatic LCD Lovibond colorimeter,RGB method colorimeter for food testing,ST110B colorimeter with stability warranty |
||
제품 설명

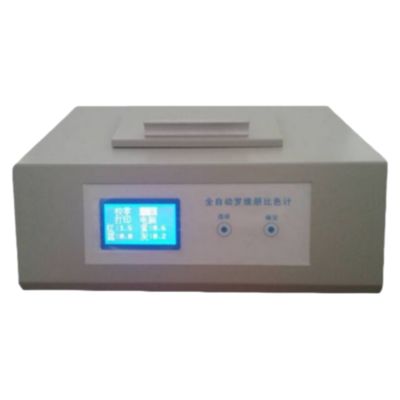

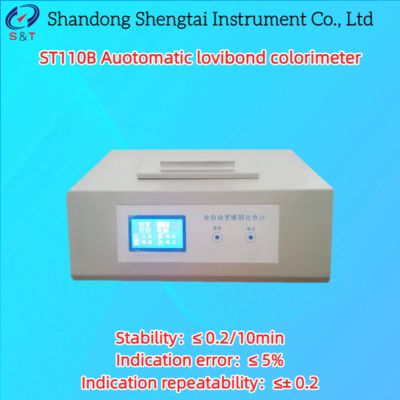

ST110B Auotomatic lovibond colorimeter
ST110B full-automatic Lovibond colorimeter is a new generation of intelligent colorimeter developed by our company. RGB color recognition method is adopted. The instrument eliminates the artificial error in the traditional colorimeter measurement, has high accuracy, simple measurement method, and greatly improves the detection efficiency.
It adopts the internationally used Lovibond color scale as the standard, and can measure the color of liquid samples. It is a professional instrument for grain and oil enterprises and testing institutions.
Technical parameter:
|
Measurement range |
Red | 0.1 ～ 80 Lovibond units | |
| Yellow | 0.1 ～ 80 Lovibond units | ||
| Blue | 0.1 ～ 40 Lovibond units | ||
| Neutral gray | 0.1 ～ 3.9 Lovibond unit | ||
| Indication error | ≤ 5% | ||
| Indication repeatability | ≤± 0.2 | ||
| Stability | ≤ 0.2/10min | ||
| Printer | Built in micro printer | ||
| Light source | semiconductor light source (LED) has a service life of 100000 hours | ||
| Output mode | large screen LCD display | ||
| Overall dimension | 360 * 260 * 140mm | ||
| Overall dimension of accessory box | 200 * 150 * 50mm | ||
| Instrument weight | 6kg | ||
| Package size | 490 * 380 * 275mm | ||
| Weight | 6.21kg | ||
Note: The appearance picture, size, volume and weight of the instrument are for reference only. If the instrument is updated, it may be slightly changed without further notice.
Packing list:
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Unit | |
| 2 | Colorimeter accessories | 1 | Set | |
| 3 | Micro printer | 1 | Piece | On the host |
| 4 | power cord | 1 | Strip | |
| 5 | Fuse tube | 1 | Piece | 10A in the safety seat |
| 6 | Instruction manual | 1 | Copy | |
| 7 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
