6 Sample Activated Carbon Tetrachloride Adsorption Rate Tester range 1℃ - 99.9℃ ASTMD 3467

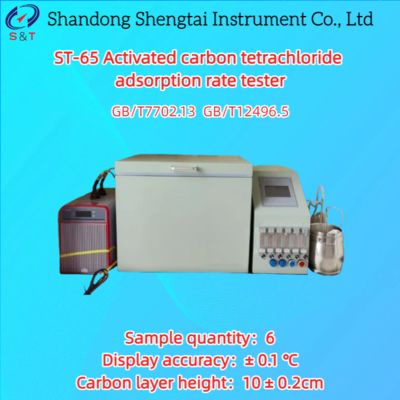

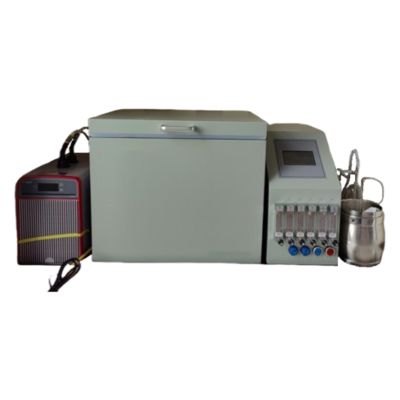

ST-65 Activated carbon tetrachloride adsorption rate tester

The ST-65 Activated Carbon Tetrachloride Adsorption Rate tester is suitable for measuring the carbon tetrachloride adsorption rate of wooden activated carbon and coal based activated carbon. It is designed and manufactured in accordance with the national standards of GB/T7702.13 Test Methods for Coal based Granular Activated Carbon - Determination of Carbon tetrachloride adsorption rate and GB/T12496.5 Test Methods for Wooden Activated Carbon - Determination of Carbon tetrachloride adsorption rate (activity). The instrument consists of a high-precision temperature control unit, a stainless steel water bath system, etc., which has the characteristics of high temperature control accuracy and long insulation time.

The activated carbon tetrachloride desorption rate meter adopts a 4.3-inch intelligent touch screen, which automatically controls the constant temperature of the water bath box, ensuring that the water bath temperature is always maintained at the set temperature. The new intelligent timing function allows for arbitrary setting of working hours, avoiding the uncertainty of manual timing.

Adopting a high-precision platinum probe and a non fixed probe design, it can detect real-time temperature at each working point of the water bath at any time. The water bath unit adopts a double-layer design, filled with environmentally friendly insulation materials inside, which has excellent constant temperature effect and is more energy-efficient.

Main technical parameters:

● Display method: LCD screen display

● Cooling method: Compressor cooling

● Timing function: Set the steam time arbitrarily, and automatically stop gas when the timing ends

● Sample quantity: 6

● Display accuracy: ± 0.1 ℃

● Voltage: AC220V 50Hz

● Carbon layer height: 10 ± 0.2cm

● Adsorption temp: 25 ± 1℃ [The serpentine tube must ensure that the airflow temperature reaches the water bath temperature of (25 ± 1) ℃].

● Steam generator bottle: 60 * 280

● Temp control range: 1.0℃ -99.9℃

● Overall power: ＜2000W

● Measure the cross-sectional area of the tube: 3.15 ± 0.26cm2

● Purification device: (50mm * 320mm) * 2

● Dimensions:

Temperature control unit: 255 * 550 * 450mm

Water bath unit: 570 * 525 * 510 mm

Refrigeration unit: 200 * 340 * 300 mm

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing List
