x제품 상세 정보
| 온도 측정 범위 | RT ～ 800 ～ | 온도 해상도 | 1 Ｃ |
|---|---|---|---|
| 가열 속도 | ＜ 150 ℃, 약 10 ℃/분; ＞ 150 ℃, 2 ℃ -3 ℃/분 | 전체 치수 | 450 * 380 * 650mm (l * w * h) |
| 제어 모드 | 터치 스크린 | 전반적인 힘 | <2000W |
| 전압 | AC220V 50Hz | 발화점 | 자동으로 계산되었습니다 |
| 강조하다 | Automatic ignition point tester ASTM D3466,Activated carbon tester touch screen,Food testing instrument RT 800℃ |
||
제품 설명

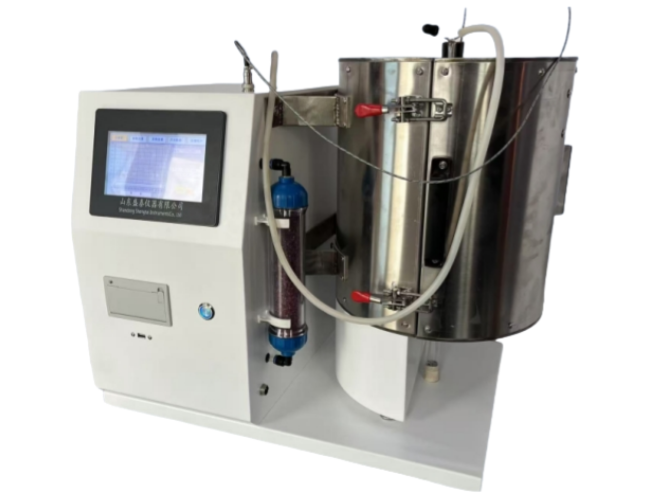

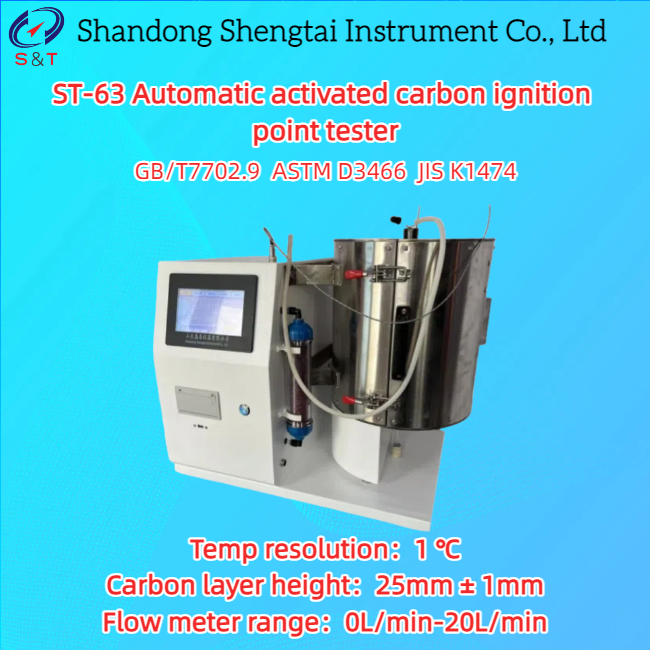

ST-63 Automatic activated carbon ignition point tester
The ST-63 fully automatic activated carbon ignition point measuring instrument is suitable for measuring the ignition point of activated carbon. It is designed and manufactured according to the standard GB/T7702.9 "Determination of ignition point for coal particle activated carbon test method". The fully automatic activated carbon ignition point measuring instrument is controlled by a touch screen microcomputer, and the experimental process automatically records the temperature points corresponding to each time point. Users can analyze the ignition point characteristics of the current experimental activated carbon after the experiment.
Crate working principle: automatic control and description of the determination of the reference ignition point of granular activated carbon in flowing air. Automatically and accurately obtain the ignition point, and visually display the time, temperature curve, and results of the heating process.
Standard:GB/T7702.9,ASTM D3466,JIS K1474
Main technical parameters:
| Control mode | Touch screen |
| Temp measurement range | RT ～ 800 ℃ |
| Thermocouple accuracy |
Furnace thermocouple: Class A Sample thermocouple: Level 0.5 |
| Temp resolution | 1 ℃ |
| Heating rate |
＜150 ℃, approximately 10 ℃/min; ＞150℃,2℃-3℃/min |
| Ignition point | automatically calculated |
| Drawing curves | automatic drawing |
| Carbon layer height | 25mm ± 1mm |
| Burning tube | National standard quartz burning tube |
| Flow meter range | 0L/min-20L/min |
| Database function | Yes |
| Overall power | ＜2000W |
| Voltage | AC220V 50HZ |
| Overall dimensions | 450 * 380 * 650mm (L * W * H) |
● Control method:digital tube control and computer operation
● Temp measurement range:RT ～ 800℃
● Thermocouple accuracy:
Furnace temp Thermocouple:Class A
Sample Thermocouple:Class 0.5
● Temp resolution:1 ℃
● Experimental time:Automatically judge the results and stop the experiment automatically
● Heating rate:about 10 ℃/min before 150 ℃; After 150 ℃, 2 ℃ -3 ℃/min
● Fire point:Computer automatically calculates the fire point
● Drawing curves:Computer automatically draws experimental curves
● Carbon layer height:25mm ± 1mm
● Burning tube:National standard quartz burning tube
● Flowmeter range:0L/min-20L/min
● Database function:Yes (can export test process data)
● Standard printing: standard mini printer, automatic measurement, thermal printing
● Overall power: ＜ 2000W
● Voltage: AC220V
● Overall dimensions: 450 * 380 * 650mm (L * W * H)
Note: The appearance picture, size, volume and weight of the instrument are for reference only. If the instrument is updated, there may be slight changes, and we will not give further notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Quartz burning tube | 1 | Piece | |
| 3 | Quartz particles | 1 | Pack | |
| 4 | Power cord | 1 | Strip | |
| 5 | Instruction Manual | 1 | Copy | |
| 6 | Packing List | 1 | Copy | |
| 7 | Certificate of Conformity | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.
----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
