x제품 상세 정보
| 최대 칭량 (g) | 110 | 정확도 측정 (g) | 0.005 |
|---|---|---|---|
| 수분 측정 에러 | 0.2% | 서비스 온도 | 5 ° C ～ 35 ° C |
| 팬 크기 | Φ90MM | 치수 (w*l*h) | 200*180*380mm |
| 표시하다 | LCD | 교정 방법 | 외부 교정 |
| 강조하다 | Halogen moisture meter with PT100 sensor,Food moisture meter with history save,Halogen drying meter 40-199°C |
||
제품 설명

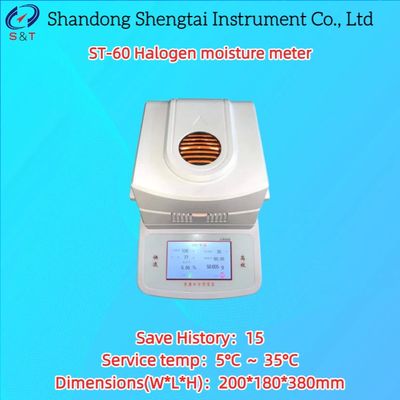

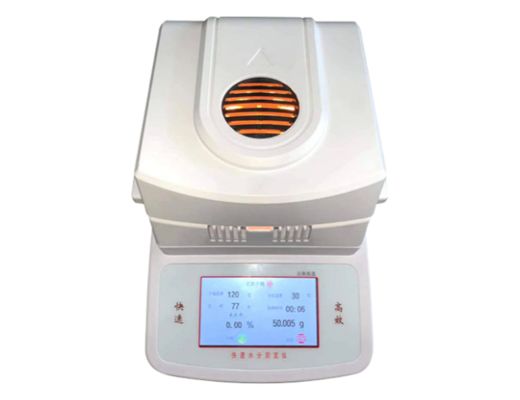

ST-60 Halogen moisture meter
The ST series halogen rapid moisture analyzer applies the principle of international oven drying method, and the measurement results have good consistency with the oven method moisture measurement, but the work efficiency is much higher than that of the oven method moisture measurement. The ST series electronic rapid moisture analyzer can measure samples in just a few minutes, which is why it is favored and praised by a large number of users. This instrument is widely used in industries such as industry, agriculture, medicine, and scientific research institutions. It can quickly test the free moisture content of samples such as tobacco, tablets, paper, food, tea, grains, chemical raw materials, pharmaceutical raw materials, plastic raw materials, textile raw materials, etc.
Technical Features
● No installation or debugging required, can be used after unpacking;
● No training required, easy to operate, saving tedious usage steps;
● Short measurement time and high work efficiency;
● Uniform heating, stable performance, and accurate testing
● Small size and light weight
● Fully automatic measurement, alarm reminder after measurement completion, no need to supervise the measurement process
● It has a wide range of applications and is almost suitable for moisture determination in various industries;
● Imported sensors from Germany make instrument testing more excellent and accurate
● Unique windproof cover design makes the instrument weighing system more stable
● The moisture and solid content of the sample can be converted simultaneously;
● The heating chamber adopts a pure stainless steel chamber cover, which is heat-resistant and easy to clean
Working Principle:
Traditional moisture determination generally uses oven drying method, which takes two to three or even three to four hours to test a sample, and also requires weighing with a balance and manual calculation to obtain the moisture value (moisture content) of the sample. The low efficiency of oven method for moisture determination cannot meet the fast-paced production needs of enterprises. The ST series rapid moisture analyzer is a highly efficient moisture analyzer developed, which uses a high-efficiency drying heater - a high-quality ring halogen lamp - to quickly and uniformly heat the sample, and the moisture content of the sample is continuously dried. Throughout the measurement process, the instrument automatically displays the measurement results in real-time, including sample weight, moisture content, solid content, measurement time, heating temperature, etc.
Instrument Features
● Halogen lamp heating
● Stainless steel heating chamber
● Adjustable temperature/time
● Percentage display of moisture content
● Percentage display of dry residue
● Large LCD screen with backlight
● Can memorize multiple drying processes
Technicl parameters:
| Model | ST-60 | ST-80 | ST-100 |
| Maximum weighing (g) | 110 | 110 | 110 |
| Reading accuracy (g) | 0.005 | 0.001 | 0.0001 |
| Moisture measurement error | 0.2% | 0.1% | 0.05% |
| Service temperature | 5°C ～ 35°C | ||
| Display | LCD | ||
| Calibration method | External calibration | ||
| Pan size | Φ90mm | ||
| Dimensions(W*L*H) | 200*180*380mm | ||
| Weight | 5.8kg | ||
| Heating mode | Halogen lamp | ||
| Temp sensor | PT-100 | ||
| Temp range | 40°C ～ 199°C | ||
| Temp interva | 1°C | ||
| Moisture range | 0.00% ～ 100% | ||
| Moisture readability | 0.01% | ||
| Dry residual range | 100.00% ～ 0.00% | ||
| Dry residual readability | 0.01% | ||
| ATRO | 100% ～ 999% | ||
| ATRO | 0% ～ 999% | ||
| Temperature setting | 40°C ～ 199°C by 1°C step | ||
| Time setting | 1 ～ 99min by 1s step | ||
| Automatic stop | 0.1% ～ 9.9% within 1 min | ||
| Save History | 15 | ||
| Heating part | 220V+15% 50Hz 400W | ||
| Balance part |
External power supply Output: 9V Input: 220V+15% 50Hz |
||
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Sample tray | 5 | Piece | |
| 3 | Power cord | 1 | Strip | |
| 4 | Fuse tube | 1 | Piece | 10A in the safety seat |
| 5 | Instruction manual | 1 | Copy | |
| 6 | Certificate warranty card | 1 | Copy |
