Automatic Abel Closed Flash Point Tester Test -30 ℃ ～ 80 ℃ Speed 0.5r/S ISO13736

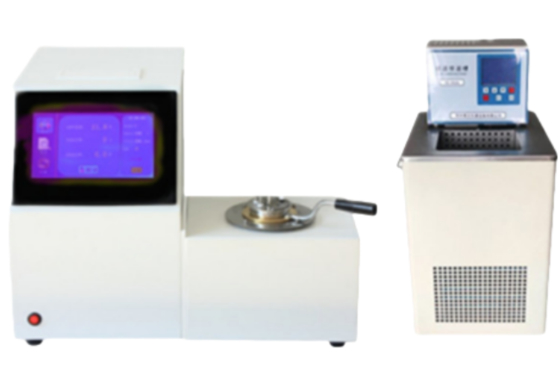

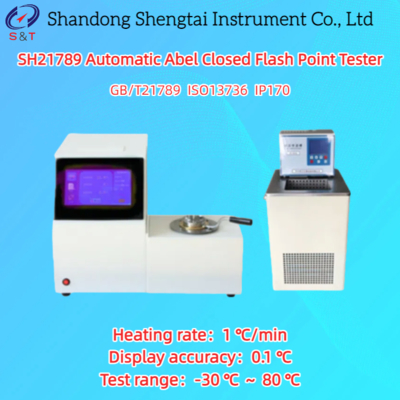

SH21789 Automatic Abel Closed Flash Point Tester

The SH21789 automatic Abel closed flash point tester is designed and manufactured according to the requirements specified in the national standards GB/T 21789 "Determination of Flash Points of Petroleum Products and Other Liquids (Abel Closed Cup Method)" and ISO13736. The method is applicable for determining petroleum products and other liquids that flash between -30 ℃ and 70 ℃.

Instrument features: Designed with an embedded system and equipped with an imported PT100 temperature sensor, the entire testing process is automatically monitored; Color touch screen; The experimental results can be stored; You can view historical data; Print the results on the instrument.

Main technical parameters

● Applicable standards: GB/T21789 ISO13736 IP170

● Test range: -30 ℃ ～ 80 ℃

● Temperature detection: Platinum resistance (PT100)

● Display mode: 6.4 TFT LCD

● Cooling method: Compressor cycle refrigeration

● Heating rate: 1 ℃/min

● Display accuracy: 0.1 ℃

● Mixing speed: 0.5r/s (30r/min)

● Air pressure detection: equipped with an air pressure detection device that can automatically adjust the atmospheric pressure

● Standard printing: Standard micro printer with automatic measurement and thermal printing

● Ignition method: electronic ignition or gas ignition

● Environmental temperature: 10-40 ℃

● Relative humidity of the environment: ≤ 8 ℃

● Host power consumption: 1800W

● Working power supply: AC 220V ± 10% 50Hz

● Instrument size: 490 * 450 * 580mm

● Instrument weight: 40kg

● Packaging size: 560 * 550 * 680mm

● Packaging weight: 45kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners
