x제품 상세 정보
| 산 값 측정 범위 | 0.000-5.00mgkoh/g | 결과 표시 정확도 | 0.0001mgkoh/g |
|---|---|---|---|
| 적정 용액의 적정 정확도 | ± 0.02 ml | 지표 솔루션의 주입 정확도 | ± 0.01 ml |
| 믹싱 방법 | 자기 교반 | 적정 방법 | 고정밀 마이크로 펌프 자동 적정 |
| 강조하다 | Automatic jet fuel acid tester ASTM D3242,Jet fuel acid value tester 0.000-5.00mgKOH/g,Flash point tester for jet fuel |
||
제품 설명
Automatic Jet Fuel Total Acid Value Tester 0.000-5.00mgKOH/g ASTM D3242
Product Specifications
| Attribute | Value |
|---|---|
| Acid value measurement range | 0.000-5.00mgKOH/g |
| Result display accuracy | 0.0001mgKOH/g |
| Titration accuracy of titration solution | ± 0.02 ml |
| Injection accuracy of indicator solution | ± 0.01 mL |
| Mixing method | Magnetic stirring |
| Titration method | High-precision micro pump automatic titration |
Product Description

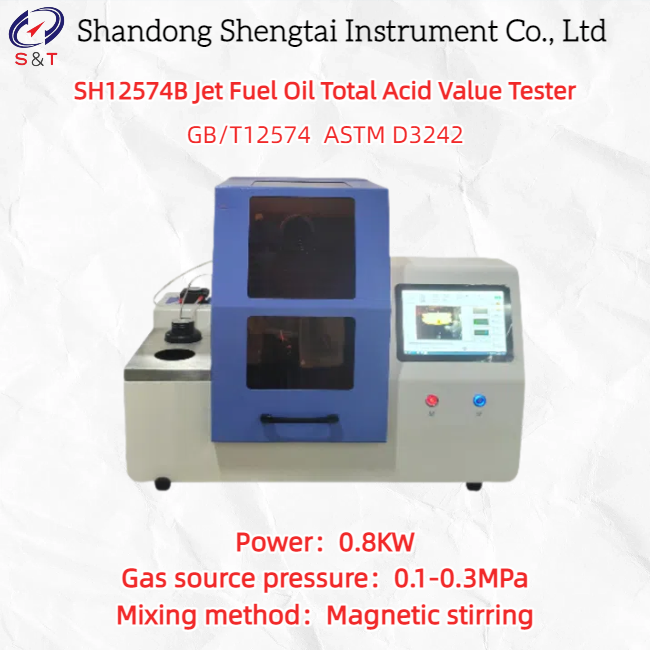

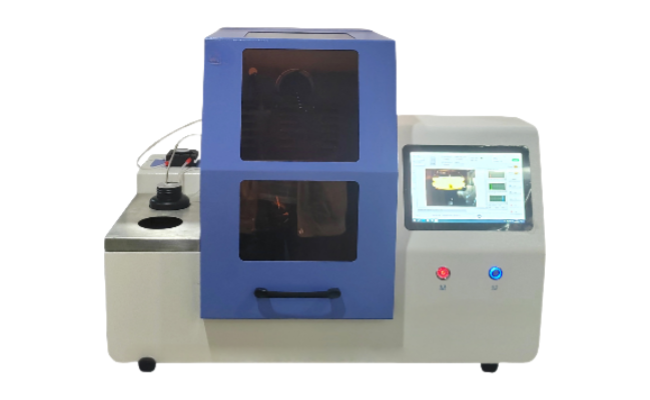

SH12574B Jet Fuel Oil Total Acid Value Tester
The SH12574B automatic jet fuel total acid value analyzer is suitable for measuring the total acid value of jet fuel. It is designed and manufactured strictly in accordance with the GB/T12574 standard, which is applicable to jet fuel with a total acid value range of 0.000-0.100mgKOH/g. Its principle is to use a color indicator to measure the total acid value of jet fuel.
The instrument is a monolithic structure, divided into two independent units: a magnetic stirring device and a nitrogen flow regulating device. The nitrogen flow rate is regulated by a car float flowmeter for stable airflow.
Key Features
- Acid value measurement range: 0.000-5.00mgKOH/g (wide measurement range)
- Result display accuracy: 0.0001mgKOH/g
- Operating system: Windows and color touch screen display real-time titration process, nitrogen flow rate, and test status
- Backup observation: Closed glass observation window for transparent observation and safe operation
- Titration device: Micro pump automatically titrates with reliable accuracy
- Judgment method: CCD industrial camera image acquisition with automatic judgment
- Intelligent operation: Automatically completes nitrogen filling, titration, stirring, detection, and calculation
- Output record: Automatically stores historical records with time stamps for future reference and printing
- Control mode: Computer automatic control with WINDOWS Chinese operating software and touch control operation
- Titration endpoint: Automatically determined by image software
- Nitrogen flow rate: 10ml/min~1000ml/min, automatic control
- Gas source pressure: 0.1-0.3MPa
- Result processing: Automatic processing with report generation and real-time storage
- Power supply: AC220V ± 10% 50Hz
- Power: 0.8KW
- Operating environment: Laboratory with ventilation and safety protection
Standard Accessories
| Number | Name | Quantity | Unit | Note |
|---|---|---|---|---|
| 1 | Host | 1 | Unit | |
| 2 | Titration bottle | 1 | Piece | |
| 3 | Magnetic stirrer | 1 | Piece | |
| 4 | Nitrogen connecting pipe | 1 | Root | |
| 5 | P-naphthol benzene indicator | 1 | Bottle | 25g |
| 6 | Burette | 1 | Piece | |
| 7 | Fuse | 2 | Piece | |
| 8 | Power line | 1 | Root | |
| 9 | Instructions | 1 | Copy | |
| 10 | Certificate of conformity | 1 | Copy | |
| 11 | Packing list | 1 | Copy |
