5-Hole Actual Gum Tester Air Method 160-165℃ ASTM D381
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 테스트 호울의 수 | 5 | 테스트 홀 크기 | φ51mm * 70mm |
|---|---|---|---|
| 온도 범위 | 실온 ～ 260 ～ | 작업 온도 | (160 5 165) ℃ |
| 온도 디스플레이 | 디지털 디스플레이 | 흐름 디스플레이 | 플로팅 볼 공기 흐름계에 의해 표시됩니다 |
| 강조하다 | 5-hole gum tester ASTM D381,air method gum tester 160-165℃,crude oil testing equipment with warranty |
||
제품 설명
5 Holes Actual Glial Measurement Instrument Air Method 160℃ ～ 165℃ ASTM D381
Product Attributes
| Attribute | Value |
|---|---|
| Number of test holes | 5 |
| Test hole size | φ51mm * 70mm |
| Temperature range | Room temperature ～ 260℃ |
| Working temperature | (160 ～ 165)℃ |
| Temperature display | digital display |
| Flow display | displayed by a floating ball air flow meter |
Product Description

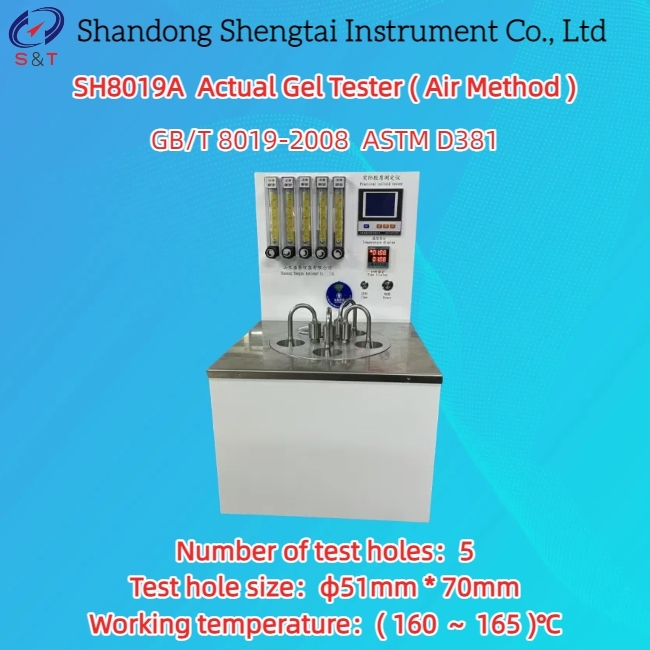

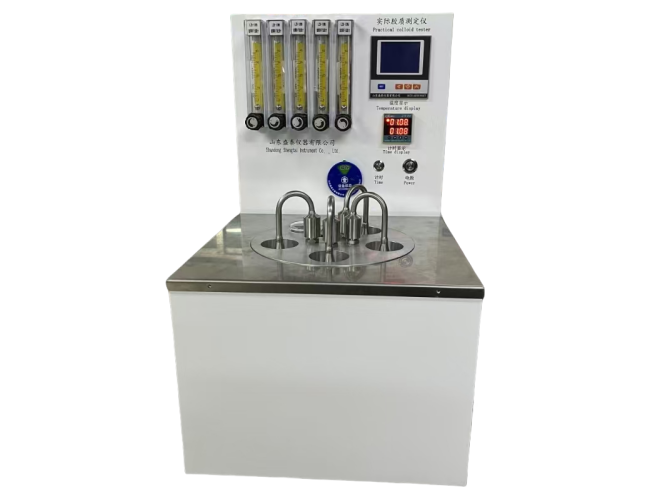

SH8019A Actual Gel Tester (Air Method)
SH8019A actual gum analyzer is a specialized instrument used to determine the actual gum content in aviation gasoline and automotive gasoline.
Suitable for conducting actual gel testing on aviation gasoline and automotive gasoline using the method specified in GB/T 8019-2008 "Determination of Gel Content - Jet Evaporation Method" equivalent to ASTM D381.
Main Technical Parameters
- Working power supply: AC220V ± 10% 50Hz
- Evaporation bath type and size: Aluminum bath block with a diameter of 260mm * 130mm
- Number of test holes: 5
- Test hole size: φ51mm * 70mm
- Temperature range: Room temperature ～ 260℃
- Working temperature: (160 ～ 165)℃
- Temperature control method: automatic temperature control
- Temperature display: digital display
- Flow display: displayed by a floating ball air flow meter
- Working pressure of air pressure reducing valve: ＜ 0.1MPa
- Jet nozzle outlet air flow rate: 600mL/S per hole
- Input power: ＜ 2000W
- Dimensions: 590mm * 480mm * 340mm (L * W * H, excluding thermometer holder)
- Packaging size: 555 * 420 * 645 mm
- Packaging weight: 51.5kg (wood)
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
- The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity
- The materials and main components provided meet the technical requirements specified in the technical documentation
- The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts)
- We are responsible for free maintenance of any instrument quality issues that occur during the warranty period
- Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine
- After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
| Number | Name | Quantity | Unit | Note |
|---|---|---|---|---|
| 1 | Host | 1 | Unit | |
| 2 | Air compressor | 1 | Unit | |
| 3 | Horn shaped nozzle | 5 | Piece | |
| 4 | Beaker | 5 | Piece | |
| 5 | Purifier | 1 | Piece | |
| 6 | Instructions | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate of Conformity Warranty Card | 1 | Copy |
