Fully Automatic Distillation And Boiling Range Tester Single Tube ASTM D86
Product Specifications
| Attribute | Value |
|---|---|
| Output display | Touch screen display |
| Temperature measurement range | Room temperature ～ 400 ℃ |
| Display accuracy | 0.1 ℃ |
| Cooling system | compressor cooling |
| Instrument size | 540 * 490 * 640mm |
| Instrument weight | 58kg |
Product Description

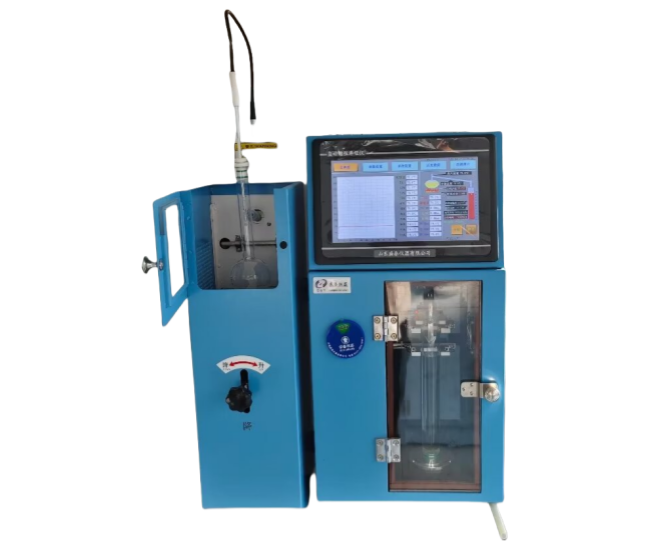

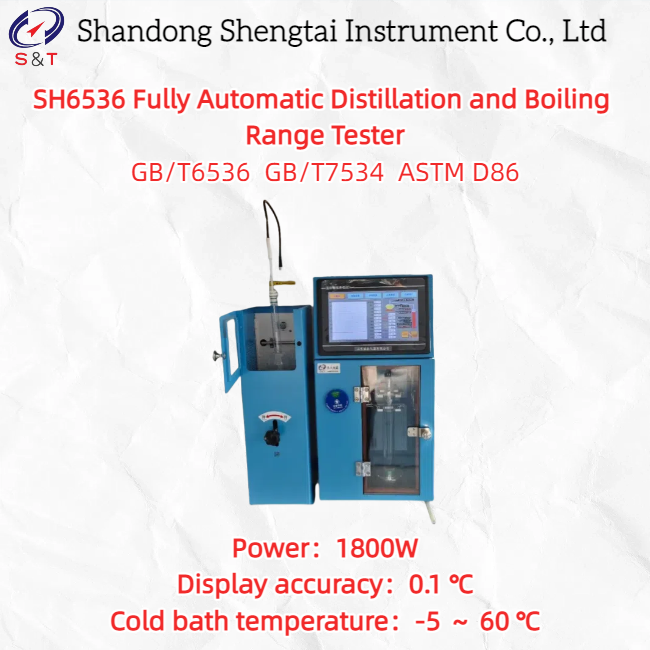

SH6536 Fully Automatic Distillation and Boiling Range Tester
The SH6536 fully automatic distillation and boiling range analyzer adopts a color LCD display screen, Chinese menu human-machine dialogue, guided operation, and fully automated measurement process. Compliant with multiple national and international standards including GB/T6536, ASTM D86, GB/T7534-2004, GB338-2004, YB/T 2303-2012, YB/T5022-2016, and GB/T3146 ASTM D1078.
Key Features
- Compliant with standard: GB/T6536 GB/T7534 ASTM D86
- Touch screen display with user-friendly interface
- High-precision liquid level tracking system with American linear motor and imported photoelectric tracker
- Fully automated process including heating, cooling, distillate tracking, and result printing
- Real-time display of experimental process with temperature, volume, and pressure data
- Automatic atmospheric pressure detection and correction
- Multiple automatic stop modes available
- Data storage, query, and printing capabilities
- USB data export function
- Optional TCP network transmission for remote upgrades
- Optional integration with Limis systems
Technical Parameters
Temperature measurement range: Room temperature ～ 400 ℃
Display accuracy: 0.1 ℃
Power: 1800W
Steam sensor: German imported glass PT100 platinum resistor
Start heating to initial boiling point time: 5 ～ 15 minutes
Distillation rate: 2 ～ 10ml/min
Recovery volume measurement range: 0 ～ 100ml
Recovery volume measurement accuracy: ± 0.1 ml
Cooling system: compressor cooling
Cold bath temperature: -5 ～ 60 ℃
Recycling room temperature: 0 ～ 40 ℃
Instrument size: 540 * 490 * 640mm
Instrument weight: 58kg
Packaging size: 670 * 590 * 710mm
Packaging weight: 71.6kg wooden crate
Standard Accessories
| Number | Name | Quantity | Unit | Note |
|---|---|---|---|---|
| 1 | Host | 1 | Unit | |
| 2 | Sensor | 1 | Piece | |
| 3 | Distillation flask | 1 | Piece | 125ml or 100ml |
| 4 | Measuring cylinder | 1 | Piece | 100ml |
| 5 | Heating support plate | 1 | Set | |
| 6 | Deflector | 1 | Set | |
| 7 | Power line | 1 | Strip | |
| 8 | Fuse tube | 1 | Piece | 10A |
| 9 | Operation instructions | 1 | Copy | |
| 10 | Packing list | 1 | Copy | |
| 11 | Certificate of conformity | 1 | Copy |
Quality Assurance
- Brand new instruments meeting national quality standards with manufacturer's certificate of conformity
- One year quality assurance period (excluding normal wear and tear of vulnerable parts)
- Free maintenance for any instrument quality issues during warranty period
- Lifetime discounted supply of parts and lifetime maintenance/repair services
- After warranty period, maintenance and technical services available at cost fee
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
