GB/T3209 Xylene Evaporation Residue Analyzer with PT100 Sensor
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 가열 방법 | 전기 히터 가열 | 임시 직원 통제 범위 | 방 온도 0 150 ℃ |
|---|---|---|---|
| 탬프 콘트롤 | ± 1 Ｃ | 임시 | PT100의 분할 수와 함께 산업 백금 저항 |
| 흐름제어 | 유량계 ≤ 5L/분 | 전반적인 힘 | 1.5KW |
| 강조하다 | xylene evaporation residue analyzer,PT100 sensor residue analyzer,GB/T3209 pharmaceutical testing instrument |
||
제품 설명
± 1 ℃ Coking Xylene Evaporation Residual Analyzer PT100 Sensor GB/T3209
Product Specifications
| Attribute | Value |
|---|---|
| Heating method | electric heater heating |
| Temp control range | Room temp ～ 150 ℃ |
| Temp control | ± 1 ℃ |
| Temperature sensor | Industrial platinum resistance, with a division number of PT100 |
| Flow control | Flow meter ≤ 5L/min |
| Overall power | 1.5KW |
Product Description

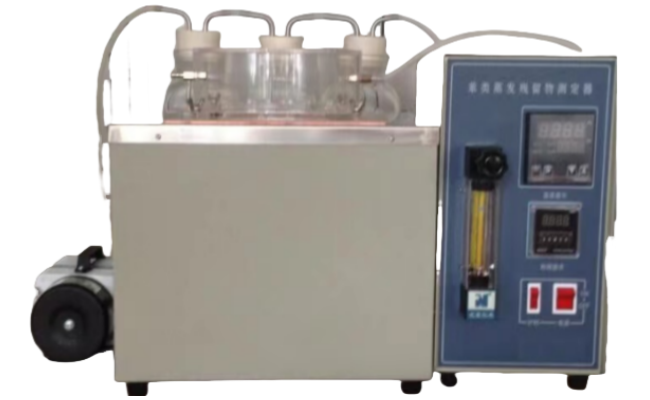

SH3209 Benzene Product Evaporation Residue Tester
The SH3209 Benzene Product Evaporation Residue Analyzer is designed and manufactured in accordance with the requirements specified in the People's Republic of China standard GB/T3209 "Determination of Evaporation Residue of Benzene Products". It is suitable for the determination of evaporation residue of coking benzene, coking toluene, coking xylene, petroleum benzene, petroleum toluene, and petroleum xylene.
Technical Specifications
- Working power supply: AC220V ± 10% 50Hz
- Heating method: electric heater heating
- Flat bottomed aluminum dish: outer diameter 80-100mm, 25-30mm, weight approximately 2g
- Temperature control range: Room temperature~150 ℃
- Temperature control: ± 1 ℃
- Temperature sensor: Industrial platinum resistance, with a division number of PT100
- Flow control: Flow meter ≤ 5L/min
- Sealed evaporator: composed of an evaporator hood and an evaporator chassis
- Overall power: 1.5KW
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
- The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity
- The materials and main components provided meet the technical requirements specified in the technical documentation
- The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts)
- We are responsible for free maintenance of any instrument quality issues that occur during the warranty period
- Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees
- Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine
- After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee
Packaging and Delivery
- Packaging of goods: standard wooden or cardboard boxes
- Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners
