SH128 Automatic Freezing Point Tester -70 ℃ ~ 30 ℃ Aviation Fuel 1200r/Min ASTM D1177

무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
xWorking cold bath | double-layer vacuum glass bath | Freezing point range | -54 ℃ ~ 2 ℃ |
---|---|---|---|
Cold bath temp control | -70 ℃ ~ 30 ℃ (customized+20 ℃ ~ -80 ℃) | Temp control accuracy | ± 0.1 ℃ |
Working power supply | AC220V ± 10% 50Hz | Whole power | around 1500W |
Instrument size | 720 * 450 * 680mm | Bath liquid stirring | automatic stirring by the stirring motor |

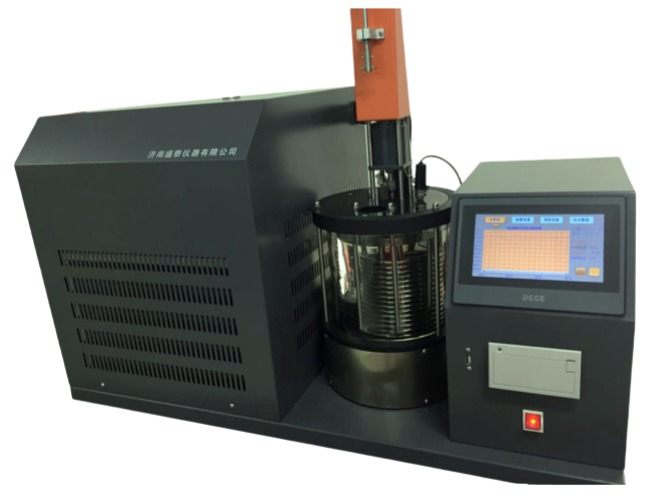

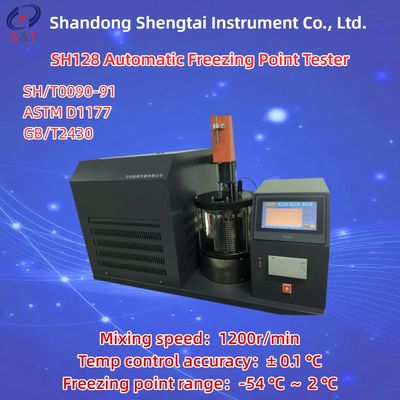

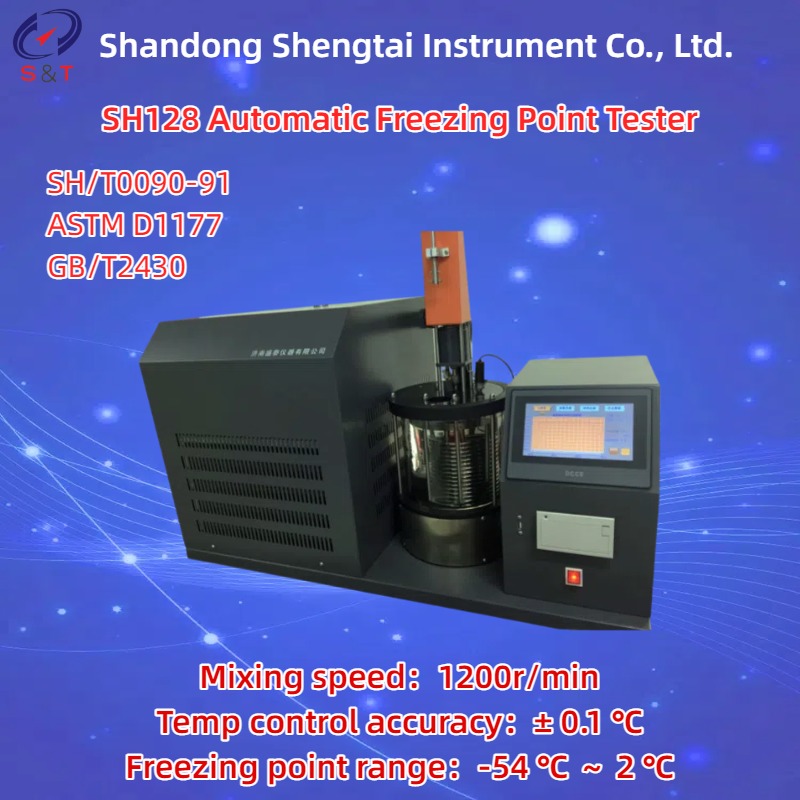

SH128 Automatic Freezing Point Tester
The SH128 automatic freezing point tester is based on the national petrochemical industry standard SH/T0090-91 (2000) "Engine Coolant Freezing Point Determination Method" and ASTM D1177 and GB/T2430 Aviation Fuel Freezing Point Determination Method. Suitable for determining the freezing point of engine coolant and its concentrate, it can also detect the freezing point of chemical and petrochemical products such as antifreeze and snow melting agents.
Instrument features:
Adopting embedded system design and imported PT100 temperature sensor, the entire testing process is automatically detected; Color touch screen; The experimental results can be stored; You can view historical data; Printing results on the instrument, mechanical automatic stirring, and experimental results can be exported through a USB flash drive and stored in a computer for multiple experiments and comparisons.
Technical Parameter
Working power supply | AC220V ± 10% 50Hz |
Working cold bath | double-layer vacuum glass bath |
Freezing point range | -54 ℃ ~ 2 ℃ |
Cold bath temp control | -70 ℃ ~ 30 ℃ (customized+20 ℃ ~ -80 ℃) |
Temp control accuracy | ± 0.1 ℃ |
Bath liquid stirring | automatic stirring by the stirring motor |
Mixing power | 6W |
Mixing speed | 1200r/min |
Refrigeration system | imported cascade refrigeration compressor |
Sample mixing | synchronous reduction motor, once per second |
Environmental temperature | ≤ 30 ℃ |
Relative humidity | ≤ 85% |
Whole power | around 1500W |
Result output | Can be equipped with USB drive output |
Output format | CSV or Excel |
Instrument size | 720 * 450 * 680mm |
Weight | 75kg |
● Working power supply: AC220V ± 10% 50Hz
● Working cold bath: double-layer vacuum glass bath
● Freezing point range: -54 ℃ ~ 2 ℃
● Cold bath temp control: -70 ℃ ~ 30 ℃ (customized+20 ℃ ~ -80 ℃)
● Temperature control accuracy: ± 0.1 ℃
● Bath liquid stirring: The stirring motor automatically stirs, with a power of 6W and a speed of 1200r/min
● Refrigeration system: imported cascade refrigeration compressor.
● Sample mixing: synchronous reduction motor, once per second.
● Environmental temperature: ≤ 30 ℃
● Relative humidity: ≤ 85%
● Power consumption of the whole machine: around 1500W.
● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage
● Output format: The output format of the result USB drive is CSV or Excel.
● Automatic touch screen display of temperature and time curves, while real-time observation of temperature change trends
● Instrument size: 720 * 450 * 680mm
● Weight: 75kg
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Note: When measuring GB/T2430 aviation fuel, the freezing point result is the test result of the crystallization freezing point.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
Number | Name | Quantity | Unit | Note |
1 | Host | 1 | Unit | |
2 | Test bottle rubber stopper | 1 | Piece | |
3 | Freezing point test tube | 1 | Piece | |
4 | Temperature sensor | 2 | Piece | |
5 | Power Cables | 1 | Root | |
6 | Instructions | 1 | Copy | |
7 | Packing list | 1 | Copy | |
8 | Certificate of Conformity Warranty Card | 1 | Copy |
